Precision Tube Mill Welded Erw Tube Making Machine Dia 16-60 Mm

Large Image : Precision Tube Mill Welded Erw Tube Making Machine Dia 16-60 Mm

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Export waterproof and Seaworthy packing.
Delivery Time:	60 work days/Year
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Product Name:	Precision Tube Mill Welded Erw Tube Making Machine Dia 16-60 Mm	Material:	HRC,CRC,Galvanised Steel
Pipe Diamete:	16 -60 Mm	Welding Type:	High Frequency Welding
Pipe Shape:	Round,square,rectangular	Adjustment Type:	By Turbine Worm
Precision Tube Mill:	3 Mm	Key Words:	Precision Tube Mill
Highlight:	dia 16mm precision tube mill , welded precision tube mill , precision carbon steel tube mill

Product Description:

HG60 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Round pipe size: 16--60mm Pipe thickness: 0.7-2.0mm

Main Parameters and Specifications:

Material Specifications

Conforming to the YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa,σs≤275MPa
strip width	50～190mm
strip thickness	0.7～2.0mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤3T

Welded Pipe Specification

Round Pipe Diameter	Φ16～φ60mm
pipe thickness	0.7-2.0mm
Finish pipe length	4-6m
Cut length accuracy	±2mm
Forming speed	40-120m/min

workshop require

6m wide, 70m long, at least 5m high from Ceiling Rails to Ground.

ERW Tube Mill Other Model

Model	Diameter Range	Pipe Thickness	Line Speed(m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

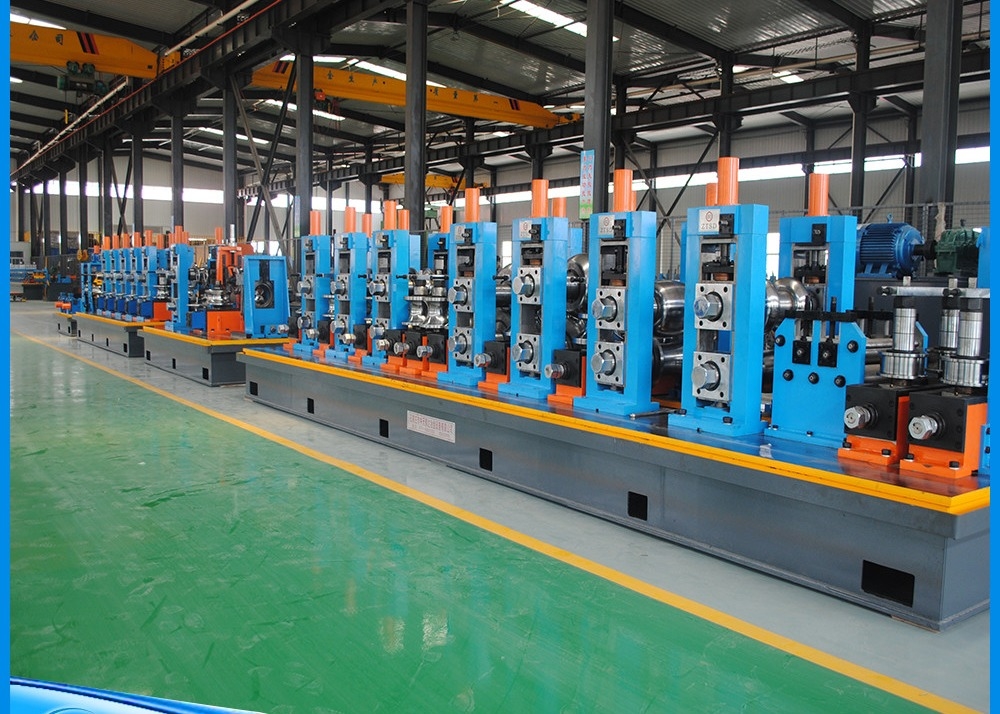

Precision Tube Mill Welded Erw Tube Making Machine Dia 16-60 Mm 0

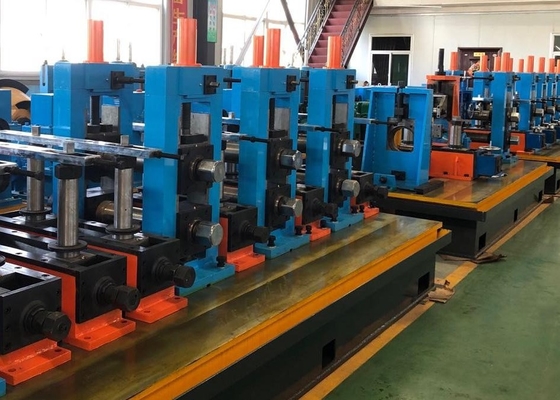

Precision Tube Mill Welded Erw Tube Making Machine Dia 16-60 Mm 1
