Precision Tube Mill Round 76 Mm Carbon Steel Pipe Mill Precision

Large Image : Precision Tube Mill Round 76 Mm Carbon Steel Pipe Mill Precision

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG76

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Export waterproof and Seaworthy packing.
Delivery Time:	60 work days/Year
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Product Name:	Precision Tube Mill Round 76 Mm Carbon Steel Pipe Mill Precision	Material:	HRC,CRC,Galvanised Steel
Pipe Diamete:	25-76 Mm	Pipe Thickness:	1.0-3.0mm
Welding Type:	High Frequency Welding	Pipe Shape:	Round,square,rectangular
Roller Materoal:	Cr12/SKD11	Key Words:	Precision Tube Mill
Highlight:	76 mm carbon steel pipe mill , precision carbon steel pipe mill , precision automatic tube mill

Round 76 mm Carbon Steel Pipe Precision Tube Mill

Product Description:

HG76 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.

Round pipe size: 25--76mm Pipe thickness: 1.0-3.0mm

square tube size:20x20-60x60mm, tube thickness: 1.0-3.0mm

Main Parameters and Specifications:

Material Specifications

Conforming to the YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa,σs≤275MPa
strip width	80～240mm
strip thickness	1.0～3.0mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤4T

Welded Pipe Specification

Round Pipe Diameter	Φ25～φ76mm
square tube size	25x25-60x60mm
pipe thickness	1.0-3.0mm
Finish pipe length	4-8m
Cut length accuracy	±2mm
Forming speed	40-100m/min

workshop require

6m wide, 80m long, at least 5m high from Ceiling Rails to Ground.

ERW Tube Mill Other Model

Model	Diameter Range	Pipe Thickness	Line Speed(m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

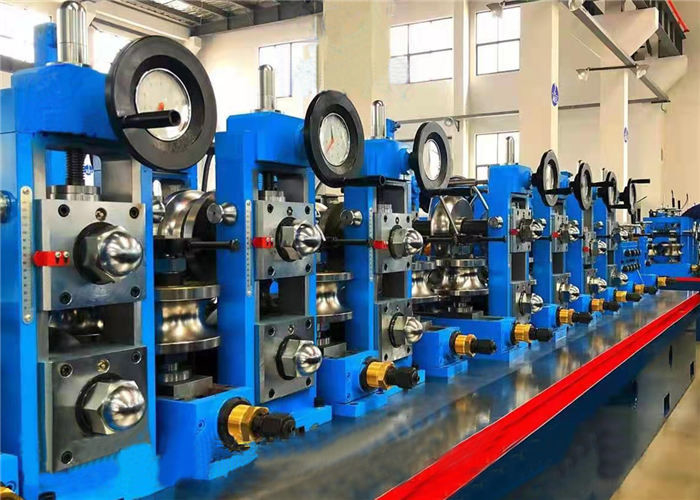

Precision Tube Mill Round 76 Mm Carbon Steel Pipe Mill Precision 0

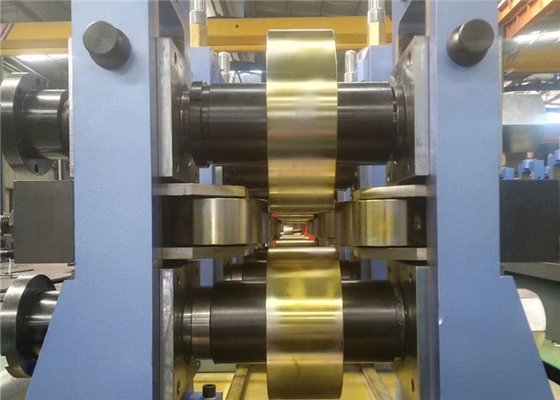

Precision Tube Mill Round 76 Mm Carbon Steel Pipe Mill Precision 1
