HG530 High Frequency Welded Pipe Mill 325-530mm Diameter 25m/min

Name: HG530 High Frequency Welded Pipe Mill 325-530mm Diameter 25m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG530
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG530

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG530

Product Name:

High Frequency Welded Pipe Mill Hg530 Hf Welded Tube Mill Large Diameter 325mm-530mm Machine

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

1500KW

Speed:

Max 25m / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

325-530mm

Warranty:

1 Year

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

large diameter hf welded tube mill

carbon steel hf welded tube mill

round high frequency welding tube mill

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

High Frequency Welded Pipe Mill HG530 HF Welded Tube Mill

Large Diameter 325mm-530mm Machine

Product Specifications

Attribute	Value
Product name	High Frequency Welded Pipe Mill HG530 HF Welded Tube Mill Large Diameter 325mm-530mm Machine
After-sales service	Engineers available to service machinery overseas
Pipe material	Carbon Steel
Voltage	380V
Power	1500KW
Speed	max 25m/min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	325-530mm
Warranty	1 year

Product Overview

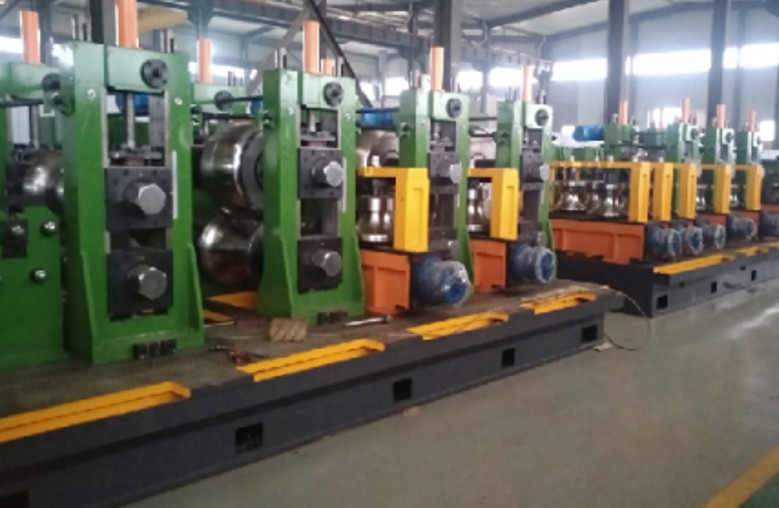

The HG530 High-Frequency Welded Pipe Mill Line is designed to produce round pipe (Diameter φ325-530mm, thickness 4-9mm) with maximum forming speed of 25m/min.

Key Features

FFX molding technology for continuous and smooth bending into seamed tube
Special roll structure design adapts to all product sizes without roll replacement
Closed-hole type frame with three-frame four-high rolling mill
Hydraulic-driven quick change system for specifications (completed in minutes)

Model Specifications

Serial No.	Model	Thickness(mm)	Specification(mm)	Speed(m/min)	Main Engine(kw)	Power(kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car → Uncoil → Cutting and Welding → Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw → Transmitting → Hydrostatic testing
End facer → Straightener → Packing → Storage

Our Service

Engineer support for installation and operator training
One year quality guarantee with lifetime repair service
Pre-sell services: Workshop design and production output planning
After-sell services: Installation, training, and skilled engineer support
Extended engineer support available (several months to 1 year)
Complete project design for stainless steel/carbon steel pipe production
Responsible for loading and shipping arrangements
