Home > products >

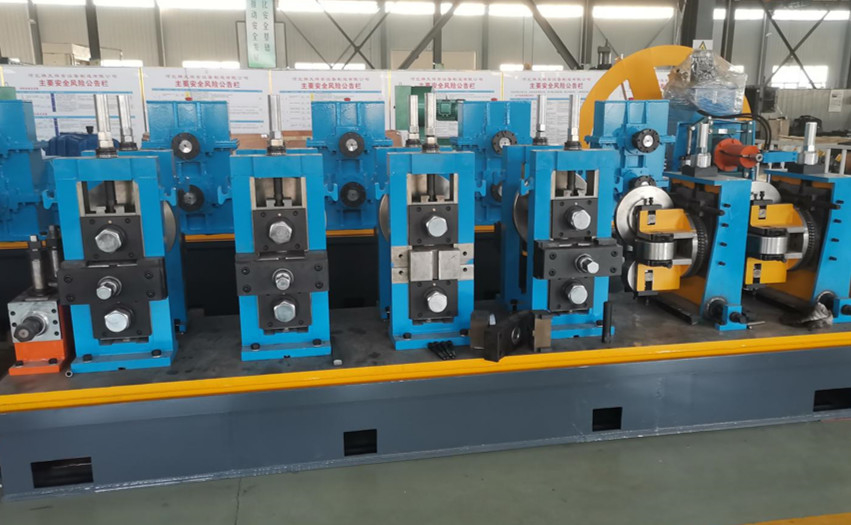

Precision Tube Mill Machine for Carbon Steel Pipes 1-3mm Thickness

Name: Precision Tube Mill Machine for Carbon Steel Pipes 1-3mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG60

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG60

Product Name:

Precision Tube Mill Machine Blue Thickness 1-3mm High Frequency Welded Pipe

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

1500KW

Speed:

Max 25m / Min

Pipe Shape:

Round, Square & Rectangular

Color:

Blue

Warranty:

1 Year

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

high frequency welded precision tube mill

thickness 1mm precision tube mill

precision high frequency welded tube mill

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

Precision Tube Mill Machine Blue Thickness 1-3mm High Frequency Welded Pipe

Product Specifications

Attribute	Value
Product name	Precision Tube Mill Machine Blue Thickness 1-3mm High Frequency Welded Pipe
After-sales service	Engineers available to service machinery overseas
Pipe material	Carbon Steel
Voltage	380V
Power	1500KW
Speed	max 25m/min
Pipe Shape	Round, Square & Rectangular
Color	Blue
Warranty	1 year

Product Overview

The HG65 high frequency straight welded pipe mill line is designed for manufacturing welded steel pipes, incorporating advanced pipe making technology from both domestic and international sources. Our innovative production line offers economical and practical solutions for pipe manufacturing.

Available Sizes

Square pipe size: 20X20-60X60mm
Rectangular pipe size: 20X25-40X80mm
Pipe thickness: 1.0-3.0mm

Model Specifications

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car → Uncoil → Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening → STD Cold-cutting saw → Transmitting → hydrostatic testing → End facer → Straightener → Packing → Storage

Our Service Commitment

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair service
Comprehensive pre-sales and after-sales services including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize output and reduce waste
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements
