Home > products >

High Frequency Welded Pipe Mill 31.8-101.6mm Carbon Steel 1500KW

Name: High Frequency Welded Pipe Mill 31.8-101.6mm Carbon Steel 1500KW
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG102
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG102

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG102

Product Name:

High Frequency Welded Pipe Mill Diameter 31.8-101.6mm HG102 Carbon

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

1500KW

Speed:

20-80m / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

31.8-101.6mm

Warranty:

1 Year

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

carbon high frequency welded pipe mill

102mm high frequency welded pipe mill

carbon high frequency welding tube mill

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

High Frequency Welded Pipe Mill Diameter 31.8-101.6mm HG102 Carbon

Attribute	Value
Product name	High Frequency Welded Pipe Mill Diameter 31.8-101.6mm HG102 Carbon
After-sales service provided	Engineers available to service machinery overseas
Pipe material	Carbon Steel
Voltage	380V
Power	1500KW
Speed	20-80m / min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	31.8-101.6mm
Warranty	1 year

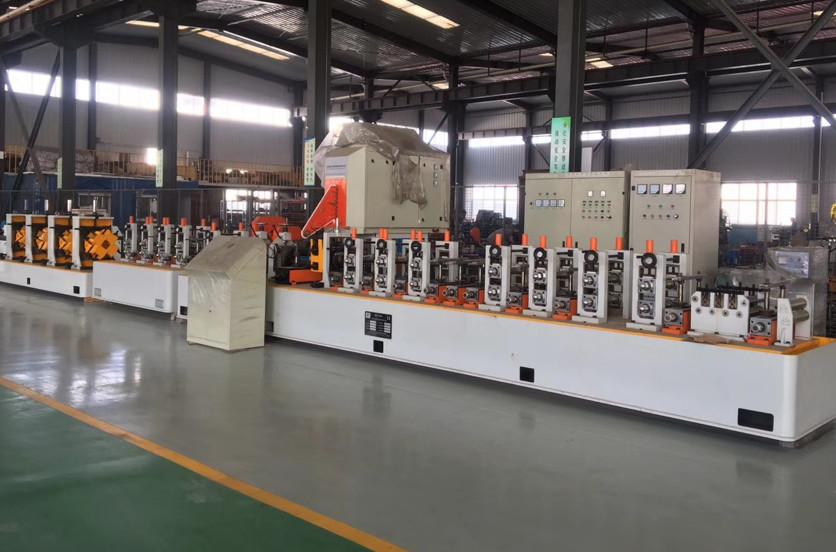

HG102 Round and Square Welded Tube Mill

Maximum forming speed: 80m/min | Pipe diameter range: 31.8-101.6mm

Product Information

The HG102 high frequency straight welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions.

Round pipe size: 31.8-101.6mm (thickness: 1.0-3.25mm)
Square pipe size: 25×25-80×80mm (thickness: 1.0-3.0mm)
Rectangular size: 20×30-50×100mm (thickness: 1.0-3.0mm)

Model Specifications

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Hydrostatic testing
End facer
Straightener
Packing
Storage

Our Service

Engineer dispatch for installation and operator training
One year quality guarantee with lifetime repair service
Comprehensive pre-sales and after-sales support
Workshop design and production output planning
Option for extended engineer support (months to 1 year)
Complete project design for stainless/carbon steel pipe production
Responsibility for loading and shipping arrangements
