Precision Tube Mill 12-63mm Carbon Steel Welded Pipe Machine

Name: Precision Tube Mill 12-63mm Carbon Steel Welded Pipe Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG50

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG50

Product Name:

Precision Tube Mill Diameter 12-63mm Blue Welded

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

450KW

Speed:

20-120m / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

12-63mm

Warranty:

1 Year

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

blue precision tube mill

welded precision tube mill

precision ss pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

Precision Tube Mill Diameter 12-63mm Blue Welded

Product Specifications

Attribute	Value
Product name	Precision Tube Mill Diameter 12-63mm Blue Welded
After-sales service	Engineers available to service machinery overseas
Pipe material	Carbon Steel
Voltage	380V
Power	450KW
Speed	20-120m/min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	12-63mm
Warranty	1 year

Product Overview

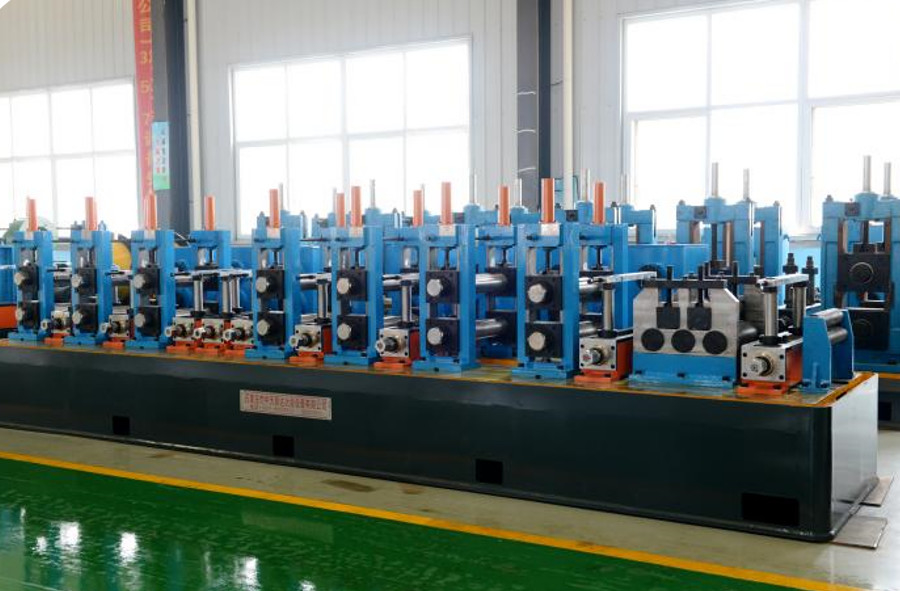

The HG50 High-Frequency Welded Pipe Mill Line produces precision welded pipes with diameters of 12-63mm and wall thicknesses of 0.5-2.0mm, including square, rectangular, and deformed pipes. Featuring advanced roll pass design, this production line delivers superior quality machining and high precision assembly.

Technical Specifications

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car → Uncoil → Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening → STD Cold-cutting saw → Transmitting → Hydrostatic testing → End facer → Straightener → Packing → Storage

Our Comprehensive Service

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair support
Pre-sales services including workshop design and production output planning
After-sales support with skilled engineers available for extended periods
Project design services for stainless steel and carbon steel pipe production
Complete responsibility for loading and shipping arrangements
