Precision Tube Mill for HRC Steel Pipe 50-127mm Diameter

Name: Precision Tube Mill for HRC Steel Pipe 50-127mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG127
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG127

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG127

Product Name:

Precision Tube Mill HRC Steel Pipe Making Machine 50mm Dia

Material:

HRC,CRC,Galvanised Steel

Pipe Diamete:

50-127 Mm

Pipe Thickness:

2.0-5.0mm

Welding Type:

H.F Solid Welder

Pipe Shape:

Round,square,rectangular,LTZ

Roller Materoal:

Cr12/SKD11

Key Words:

Precision Tube Mill

Highlight:

High Light

Highlight:

hrc steel pipe making machine

precision steel pipe making machine

steel making precision tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

90 work days/Year

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets

Product Description

Precision Tube Mill HRC Steel Pipe Making Machine 50mm Dia

Attribute	Value
Product Name	Precision Tube Mill HRC Steel Pipe Making Machine 50mm Dia
Material	HRC, CRC, Galvanised Steel
Pipe diameter	50-127 mm
Pipe thickness	2.0-5.0mm
Welding Type	H.F solid welder
Pipe shape	Round, square, rectangular, LTZ
Roller material	Cr12/SKD11

Product Overview

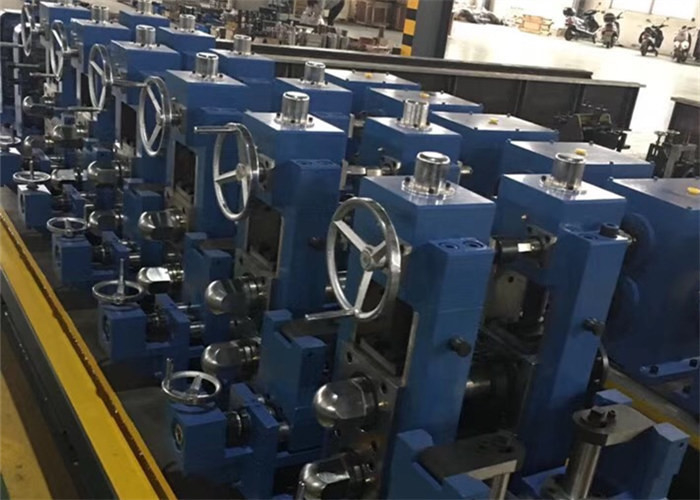

The HG127 high frequency straight welded pipe mill line is designed for manufacturing precision welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, this machine produces tubes of various sizes and shapes while ensuring high precision.

Production Capabilities

Round pipe size: 50-127mm
Pipe thickness: 2.0-5.0mm
Square tube size: 40x40-100x100mm
Tube thickness: 2.0-5.0mm

Material Specifications

Conforms to YB189-64 standard
Steel material: Q235/Q345
Mechanical properties: σb≤380Mpa, σs≤275MPa
Strip width: 160-400mm
Strip thickness: 2.0-5.0mm
I.D of Coils: Φ508mm
O.D of Coils: φ1800mm
Coil Weight: 5TON

Welded Pipe Specifications

Round Pipe Diameter: Φ50-φ127mm
Square tube size: 40X40-100X100mm
Pipe thickness: 2.0-5.0mm
Finish pipe length: 6-12m
Forming speed: 20-100m/min

Workshop Requirements

6m wide, 80m long, with at least 5m clearance from ceiling rails to ground.

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20
