Precision Tube Mill HRC Steel Pipe Making Machine 50mm Dia

Large Image : Precision Tube Mill HRC Steel Pipe Making Machine 50mm Dia

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG127

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Export waterproof and Seaworthy packing.
Delivery Time:	90 work days/Year
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Product Name:	Precision Tube Mill HRC Steel Pipe Making Machine 50mm Dia	Material:	HRC,CRC,Galvanised Steel
Pipe Diamete:	50-127 Mm	Pipe Thickness:	2.0-5.0mm
Welding Type:	H.F Solid Welder	Pipe Shape:	Round,square,rectangular,LTZ
Roller Materoal:	Cr12/SKD11	Key Words:	Precision Tube Mill
Highlight:	hrc steel pipe making machine , precision steel pipe making machine , steel making precision tube mill

China Steel Pipe Making Machine Manufacturer Precision Tube Mill

Product Description:

HG127high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.

Round pipe size: 50--127mm Pipe thickness: 2.0-5.0mm

square tube size:40x40-100x100mm, tube thickness: 2.0-5.0mm

Main Parameters and Specifications:

Material Specifications

Conforming to the YB189-64 standard
steel material: Q235/Q345
Mechanical properties:σb≤380Mpa,σs≤275MPa
strip width:160-400MM
strip thickness:2.0-5.0MM
I.D of Coils:Φ508mm
O.D of Coils:φ1800mm
Coil Weight:5TON

Welded Pipe Specification

Round Pipe Diameter:Φ50～φ127mm
square tube size:40X40-100X100MM
pipe thickness:2.0-5.0MM
Finish pipe length:6-12M
Forming speed:20-100M/MIN

workshop require

6m wide, 80m long, at least 5m high from Ceiling Rails to Ground.

ERW Tube Mill Other Model

Model	Diameter Range	Pipe Thickness	Line Speed(m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

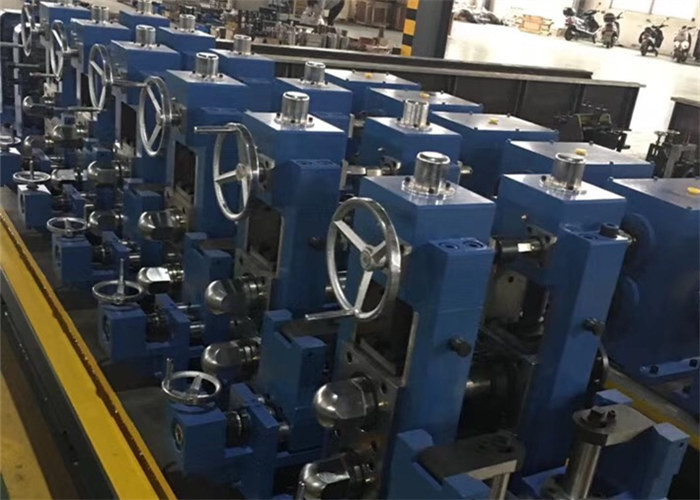

Precision Tube Mill HRC Steel Pipe Making Machine 50mm Dia 0

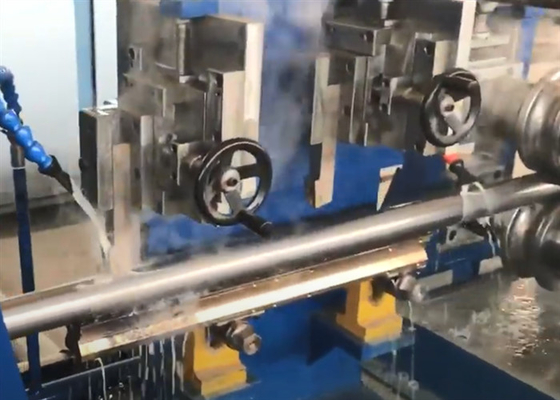

Precision Tube Mill HRC Steel Pipe Making Machine 50mm Dia 1
