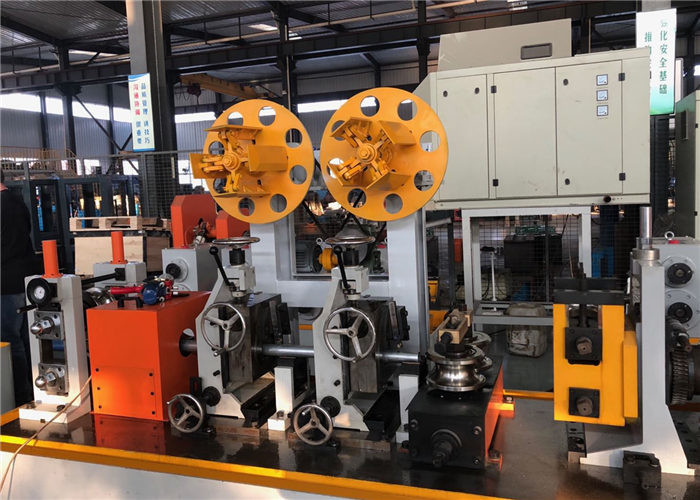

100x100 Precision Tube Mill for Square Rectangular Steel Pipes

Name: 100x100 Precision Tube Mill for Square Rectangular Steel Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 100x100
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	100x100

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

100x100

Production Name:

Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine

Material:

HRC,CRC,Galvanised Steel

Tube Size:

30x30-100x100 Mm

Tube Thickness:

1.0-4.0mm

Welding Type:

H.F Solid Welder

Pipe Shape:

Square,rectangular,LTZ

Roller Materoal:

Cr12/SKD11

Key Words:

Precision Tube Mill

Highlight:

High Light

Highlight:

100x100 precision tube mill

square precision tube mill

precision erw steel pipe mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

90 work days/Year

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets

Product Description

Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine

Production Name	Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine
Material	HRC, CRC, Galvanised Steel
Tube Size	30x30-100x100 mm
Tube Thickness	1.0-4.0mm
Welding Type	H.F solid welder
Pipe Shape	Square, Rectangular, LTZ
Roller Material	Cr12/SKD11
Key Words	Precision Tube Mill

100x100 Square Tube Making Machine Precision Tube Mill

The 100x100 high frequency straight welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, this machine produces tubes in various sizes and shapes with guaranteed precision. Capable of producing square tubes ranging from 30x30-100x100mm with thicknesses of 1.0-4.0mm, it can also manufacture LTZ special shape tubes.

Main Parameters and Specifications

Material Specifications

Conforms to YB189-64 standard
Steel material: Q235/Q345
Mechanical properties: σb≤380Mpa, σs≤275MPa
Strip width: 120-400MM
Strip thickness: 1.0-4.0MM
I.D of Coils: Φ508mm
O.D of Coils: φ1800mm
Coil Weight: 4TON

Quality and Service Warranty

Upon machine delivery, our technical service personnel will visit the buyer's factory to provide operational guidance, debugging, and maintenance support. We conduct technical training for the buyer's equipment operation and maintenance staff.

Full line warranty: 1 year

Working Process

Strip steel to coil → Uncoiler → Shear welder → Storage material unit → Forming, welding, cooling, accurate pipe diameter sizing → Accurate pipe length sizing, cutting → Inspection → Packaging

Tube Mill Other Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20
