Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine

Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine
Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine

Large Image :  Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: 100x100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $100000 to $1 million
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 90 work days/Year
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Production Name: Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine Material: HRC,CRC,Galvanised Steel
Tube Size: 30x30-100x100 Mm Tube Thickness: 1.0-4.0mm
Welding Type: H.F Solid Welder Pipe Shape: Square,rectangular,LTZ
Roller Materoal: Cr12/SKD11 Key Words: Precision Tube Mill
Highlight:

100x100 precision tube mill

,

square precision tube mill

,

precision erw steel pipe mill

100x100 Square Tube Making Machine Precision Tube Mill

Product Description:

100x100 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.the square tube size:30x30-100x100mm, tube thickness: 1.0-4.0mm,also can product LTZ special shape tubes.



Main Parameters and Specifications:

Material Specifications

  • Conforming to the YB189-64 standard
  • steel material:  Q235/Q345
  • Mechanical properties:σb≤380Mpa,σs≤275MPa
  • strip width:120-400MM
  • strip thickness:1.0-4.0MM
  • I.D of Coils:Φ508mm
  • O.D of Coils:φ1800mm
  • Coil Weight:4TON



Quality and Service Warranty

After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.

whole line warranty one year



Working Process:

strip steel to coil→uncoiler →shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package


Tube Mill Other Model



Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20

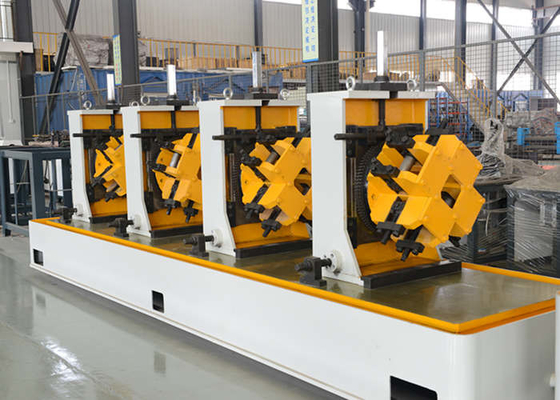

Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine 0

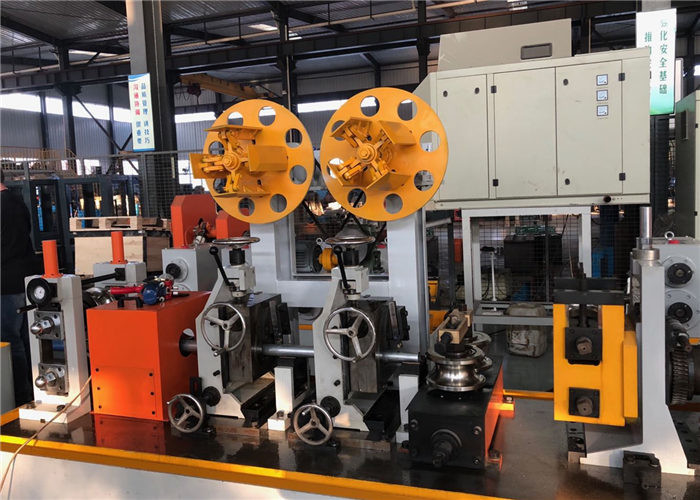

Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine 1

Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine 2
