High Frequency Welded Pipe Mill for Square Rectangular Tubes 80-200mm
High Frequency Welded Pipe Mill for Square Rectangular Tubes 80-200mm
  • High Frequency Welded Pipe Mill for Square Rectangular Tubes 80-200mm
  • High Frequency Welded Pipe Mill for Square Rectangular Tubes 80-200mm

High Frequency Welded Pipe Mill for Square Rectangular Tubes 80-200mm

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: 200x200
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
200x200
Product Name:
High Frequency Welded Pipe Mill Big Size Weld Hrc High Frequency Welded Pipe Mill Machine
Material:
HRC,CRC,Galvanised Steel
Tube Size:
80x80-200x200 Mm
Tube Thickness:
3.0-8.0mm
Forming Type:
FFX Forming
Pipe Shape:
Square,rectangular,LTZ
Roller Materoal:
Cr12/SKD11
Key Words:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

hrc high frequency welded pipe mill

,

weld high frequency welded pipe mill

,

rectangular high frequency welding tube mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
four month
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
30 Sets
Product Description
High Frequency Welded Pipe Mill Big Size Weld HRC High Frequency Welded Pipe Mill Machine
Product Attributes
Attribute Value
Product Name High Frequency Welded Pipe Mill Big Size Weld HRC High Frequency Welded Pipe Mill Machine
Material HRC, CRC, Galvanised Steel
Tube Size 80x80-200x200 mm
Tube Thickness 3.0-8.0mm
Forming Type FFX forming
Pipe Shape Square, Rectangular, LTZ
Roller Material Cr12/SKD11
Key Words High Frequency Welded Pipe Mill
Product Description
This high frequency welded pipe mill is designed to produce welded steel pipes, including round pipe, square pipe, deformed pipe, and LTZ pipe. The production line adopts roll pass design to manufacture welded steel pipes with excellent quality machining and high precision assembly.
Machine Variants
We offer different types of tube mill machines to meet various customer requirements:
  • Normal tube mill machine
  • Full automatic type
  • Semi-automatic type
  • High precision tube mill machine
Main Parameters and Specifications
Material Specifications:
  • Conforming to the YB189-64 standard
  • Steel material: Q235/Q345
  • Mechanical properties: σb≤380Mpa, σs≤275MPa
  • Strip width: 320-800MM
  • Strip thickness: 3.0-10.0MM
  • I.D of Coils: Φ508mm
  • O.D of Coils: φ2000mm
  • Coil Weight: 15TON
Quality and Service Warranty
After the machine arrives at the buyer's facility, our technical service personnel will provide guidance on operation, debugging, and maintenance. We are responsible for technical training of the buyer's equipment operation and maintenance personnel.
Whole line warranty: 1 year
Working Process
  • Strip steel to coil
  • Uncoiler
  • Shear welder
  • Storage material unit
  • Forming, welding, cooling, accurate pipe diameter size
  • Accurate pipe length size, cutting
  • Inspection
  • Package
Tube Mill Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
Product Images

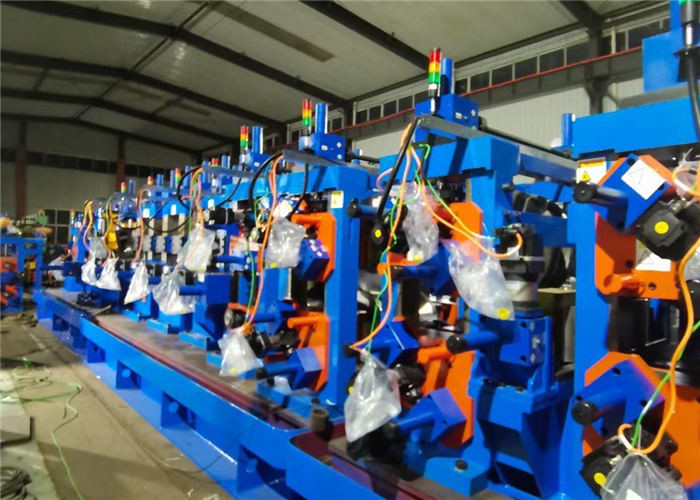

High Frequency Welded Pipe Mill for Square Rectangular Tubes 80-200mm 0 High Frequency Welded Pipe Mill for Square Rectangular Tubes 80-200mm 1 High Frequency Welded Pipe Mill for Square Rectangular Tubes 80-200mm 2 High Frequency Welded Pipe Mill for Square Rectangular Tubes 80-200mm 3
