High Frequency Welded Pipe Mill
>
Automatic High Frequency Welded Pipe Mill for Square Rectangular Tubes
Automatic High Frequency Welded Pipe Mill for Square Rectangular Tubes
  • Automatic High Frequency Welded Pipe Mill for Square Rectangular Tubes
  • Automatic High Frequency Welded Pipe Mill for Square Rectangular Tubes

Automatic High Frequency Welded Pipe Mill for Square Rectangular Tubes

Product Details:
Place of Origin: CHINA
Brand Name: Hebei TengTian
Certification: CE, ISO9001
Model Number: HG165
Detail Information
Place of Origin:
CHINA
Brand Name:
Hebei TengTian
Certification:
CE, ISO9001
Model Number:
HG165
Product Name:
High Frequency Welded Pipe Mill Square Automatic Adjust High Frequency Welded Pipe Mill Machine
Pipe Shape:
Square Rectangular，LTZU
Pipe Size:
50*50-150*150mm
Pipe Material:
Carbon Steel,G.I Steel
Feature:
Full Automatic
Key Words:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

adjust high frequency welded pipe mill

,

square high frequency welded pipe mill

,

square high frequency welding tube mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
120 days after sign contract
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
50 Sets/Year
Product Description
High Frequency Welded Pipe Mill Square Automatic Adjust High Frequency Welded Pipe Mill Machine
Product Specifications
Attribute Value
Pipe Shape Square rectangular, LTZU
Pipe Size 50*50-150*150mm
Pipe Material Carbon steel, G.I Steel
Feature Full automatic
Product Overview
This high-frequency welded pipe mill features a combined mold system that produces tubes of different specifications with simple adjustments, eliminating the need for mold changes. The roller savings rate exceeds 90%, significantly reducing costs while improving efficiency.
Key Features
  • Motorized automatic adjustment reduces labor requirements and costs
  • Dramatically reduces roller change time between product runs
  • Simple operation - just input size and wall thickness parameters
  • Lowers technical requirements for operating personnel
  • Improves working conditions and reduces labor intensity
Technical Specifications
Standard SPHC, SPHT-2, Q235, Q345
Material Low carbon steel and low alloy constructional steel
Mechanical Properties σb≤520Mpa, σs≤365MPa
Pipe Size 50x50-150x150mm
Pipe Thickness 1.0-5.0mm
Pipe Length 6-12 meter
Pipe-cutting Precision 0-6mm
Workshop Requirements 100x8m, H＞6m (crane to ground)
Power Approx. 600KW 380V/50Hz/3phases
Quality Assurance & Service
Our technical personnel will provide on-site debugging, maintenance, and operational training upon equipment arrival. The warranty covers 12 months from the date of equipment arrival. Under normal operating conditions, we provide free repair or replacement for any quality-related parts failure.
Product Images

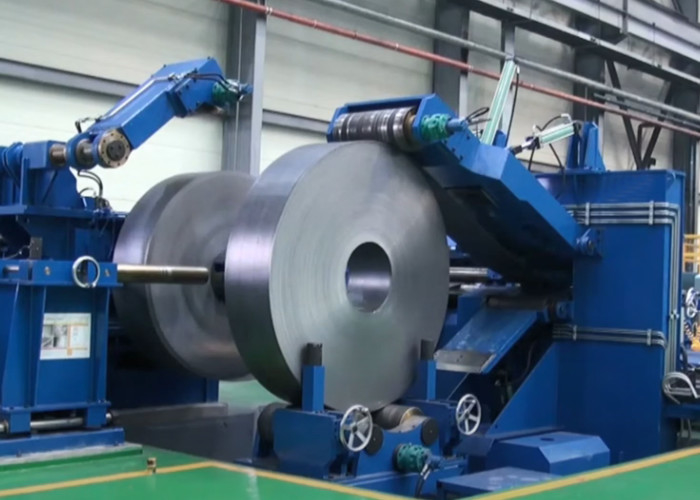

Automatic High Frequency Welded Pipe Mill for Square Rectangular Tubes 0
Automatic High Frequency Welded Pipe Mill for Square Rectangular Tubes 1
Automatic High Frequency Welded Pipe Mill for Square Rectangular Tubes 2
Automatic High Frequency Welded Pipe Mill for Square Rectangular Tubes 3
