320-530mm ERW Pipe Mill for Carbon Steel Round Square Tubes

Name: 320-530mm ERW Pipe Mill for Carbon Steel Round Square Tubes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG530
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG530

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG530

Product Name:

Diameter 320-530 Mm Erw Pipe Mill , Hf Welded Round Tube Mill

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

1600KW

Speed:

5 - 25m / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

320mm - 530mm

Warranty:

1 Year

Keywords:

Diameter 320-530 Mm ERW Pipe Mill

Highlight:

High Light

Highlight:

diameter 320mm erw pipe mill

hf welded erw pipe mill

diameter 530mm erw tube mill

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

Diameter 320-530 Mm ERW Pipe Mill, HF Welded Round Tube Mill

Product Specifications

Attribute	Value
Product name	Diameter 320-530 Mm ERW Pipe Mill, HF Welded Round Tube Mill
After-sales service	Engineers available to service machinery overseas
Pipe material	Carbon Steel
Voltage	380V
Power	1600KW
Speed	5 - 25m / min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	320mm - 530mm
Warranty	1 year

Product Overview

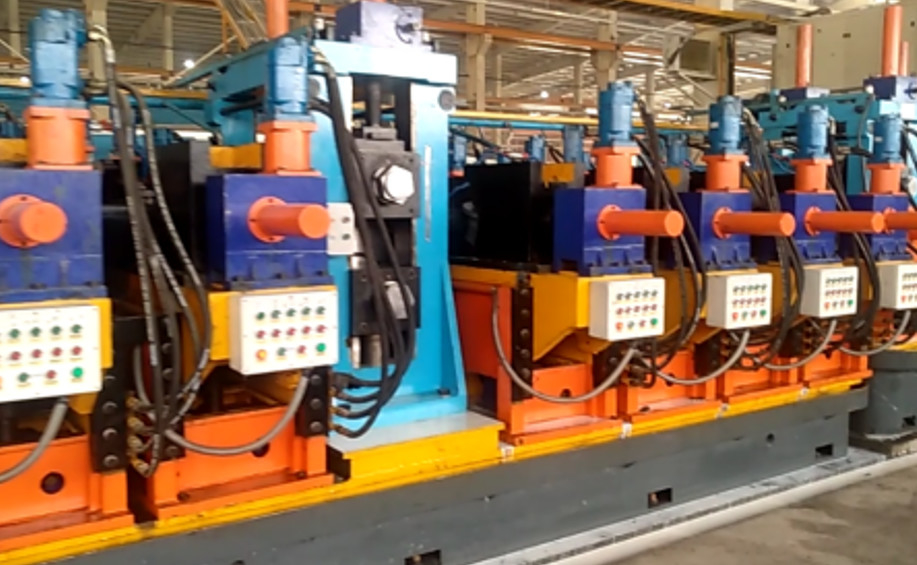

The HG530 High-Frequency Welded Pipe Mill Line is designed to produce round pipe (Diameter φ325-530mm, thickness 4-9mm) using FFX molding technology. This equipment employs the most economical and reasonable molding process to continuously and smoothly bend material into seamed tubes.

Key Features

Special roll structure design adapts to all product sizes without roll replacement
Closed-hole type frame with three-frame four-high rolling mill
Hydraulic-driven quick-change system for specifications (completed in minutes)
Special replacement frame design for efficient operation

ERW Pipe Mill Models

Serial No.	Model	Thickness(mm)	Specification(mm)	Speed(m/min)	Main Engine(kw)	Power(kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Hydrostatic testing
End facer
Straightener
Packing
Storage

Our Service Commitment

On-site engineer support for installation and operator training
One year quality guarantee with life-time repair service
Comprehensive pre-sale and after-sale services including workshop design and production output planning
Extended engineer support available (several months to 1 year) to optimize output and reduce waste
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements
