Full Automatic 200x200mm ERW Pipe Mill for Galvanized Steel

Name: Full Automatic 200x200mm ERW Pipe Mill for Galvanized Steel
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG200X200
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG200X200

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG200X200

Product Name:

Full Automatic 200x200mm Erw Pipe Mill Square For Galvanized Steel

Product:

Square Pipe

Feature:

Full Automatic

Material:

Carbon Steel And Galvanized Steel

Max Size:

200X200mm

Thickness:

12mm

Length:

6-12m

Rollers:

Include

Model:

200X200

Key Words:

Automatic ERW Pipe Mill

Highlight:

High Light

Highlight:

200x200mm erw pipe mill

galvanized steel erw pipe mill

200x200mm erw tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

Full Automatic 200x200mm ERW Pipe Mill Square For Galvanized Steel

Attribute	Value
Product Name	Full Automatic 200x200mm ERW Pipe Mill Square For Galvanized Steel
Product	Square pipe
Feature	Full automatic
Material	Carbon steel and galvanized steel
Max size	200X200mm
Thickness	12mm
Length	6-12m
Rollers	Included
Model	200X200

Full Automatic 200x200mm Square ERW Pipe Mill

This ERW pipe mill is designed to produce welded steel pipes, including square pipe and deformed pipe. The entire production line uses one set of rollers with size adjustment controlled by automatic PLC.

Featuring roll pass design, this production line manufactures welded steel pipes with excellent quality machining and high precision assembly.

Available Pipe Sizes

Square pipe: 100x100mm, 150x150mm, 200x200mm
Rectangular pipe: 120x80mm, 140x60mm, 200x100mm, 250x150mm
Thickness: 10-12mm

Main Parameters and Specifications

Material Specifications

Standard: International standard tube mill machine
Material: Galvanized steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Strip Width: 400-800mm
Strip Thickness: 10-12mm
Inner Diameter of Coils: Φ508mm
Outer Diameter of Coils: Φ1300～φ2000mm
Coil Weight: ≤20T

Pipe Specification

Pipe Diameter: Square pipe 100x100-200x200mm
Thickness: 10-12mm
Length: 6-12m
Pipe-cutting Precision: 0-6mm
Forming Speed: max 50m/min for 1mm thickness

Buyer-Supplied Requirements

Work shop: 60x12m, H＞5m (crane to ground)
Power: Approx. 3500KW 380V/60Hz/3phases
Circulation Cooling Water (whole system): Flow:30+30 CBM, Pool Volume:40m³
Compressed Air (whole system): Flow:5m³/min, Pressure: 5-7kg/cm²
Cable: All cable outside of machine to be purchased after machine installation

Working Process

Strip steel to coil → Uncoiler → End straightener → Flattener → Shear welder → Storage material unit → Forming, welding, cooling, accurate pipe diameter sizing → Accurate pipe length sizing, cutting → Inspection → Packaging

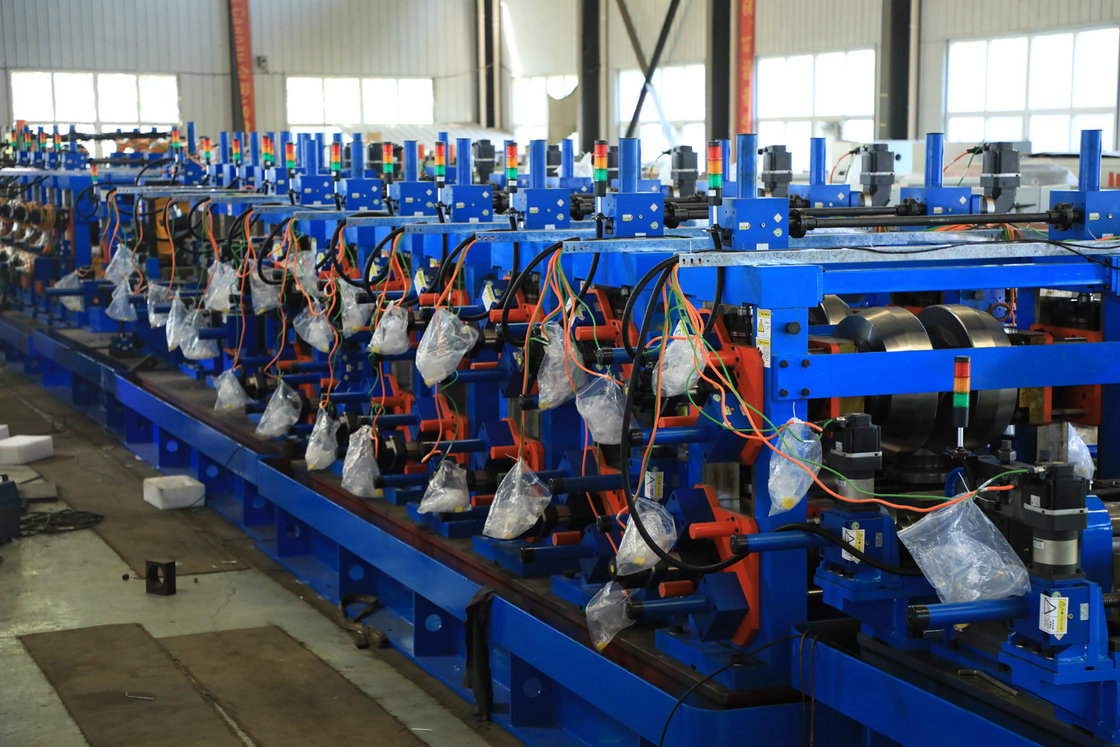

ERW Pipe Mill Images
