140mm Galvanized Steel Round Pipe Mill 3-6mm Thickness

Name: 140mm Galvanized Steel Round Pipe Mill 3-6mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG140
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG140

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG140

Machine Name:

Galvanized Steel 6mm Round Tube Mill For Pipe 140mm

Product:

Welded Pipe

Feature:

High Speed

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Round Pipe

Max Size:

140mm

Thickness:

3-6mm

Length:

6-12m

Model:

140mm

Key Words:

Welded Pipe Mill

Highlight:

High Light

Highlight:

6mm round tube mill

galvanized steel round tube mill

140mm welded tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

Galvanized Steel 6mm Round Tube Mill For Pipe 140mm

Product Specifications

Attribute	Value
Machine Name	Galvanized Steel 6mm Round Tube Mill For Pipe 140mm
Product	Welded Pipe
Feature	High Speed
Material	Carbon Steel and Galvanized Steel
Other Pipe	Round Pipe
Max Size	140mm
Thickness	3-6mm
Length	6-12m
Model	140mm
Key Words	Welded Pipe Mill

Galvanized Steel Round Pipe 140mm Welded Pipe Mill

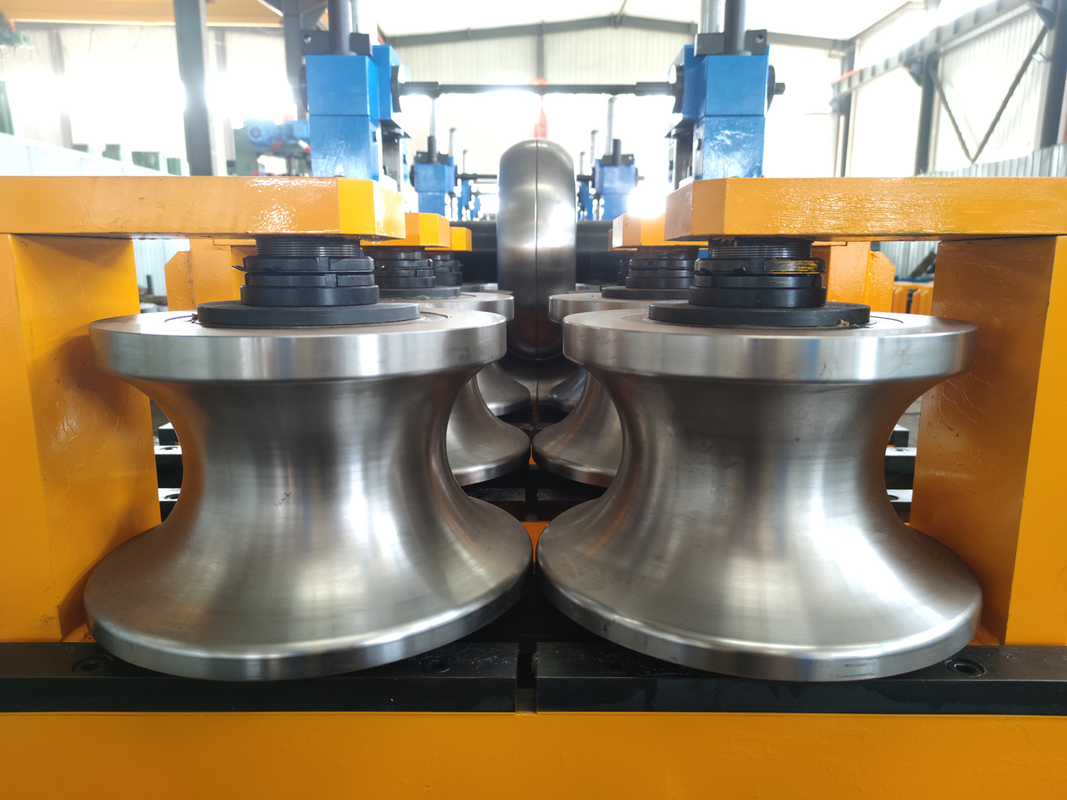

This welded pipe mill is designed to produce high-quality welded steel pipes, including square pipe and deformed pipe. Featuring advanced roll pass design, the production line manufactures welded steel pipes with excellent machining quality and high precision assembly.

Square Pipe Specifications

Size range: 89-140mm
Thickness: 3-6mm

Main Parameters and Specifications

Material Specifications

Standard: International standard tube mill machine
Material: Galvanized steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Strip Width: 280-450mm
Strip Thickness: 3-6mm
Inner Diameter of Coils: Φ508mm
Outer Diameter of Coils: Φ1300～φ2000mm
Coil Weight: ≤8T

Pipe Specification

Pipe Diameter: Round pipe 89-140mm
Thickness: 3-6mm
Length: 6-12m
Pipe-cutting Precision: 0-6mm
Forming Speed: Max 50m/min for 1mm thickness

Buyer Requirements

Work shop: 60x12m, H＞5m (crane to ground)
Power: Approx.2500KW 380V/60Hz/3phases
Circulation Cooling Water (whole system): Flow:30+30 CBM, Pool Volume:40m3
Compressed Air (whole system): Flow:5m3/min, Pressure: 5-7kg/cm2
Cable: All cable outside of machine to be supplied by buyer after machine installation

Working Process

strip steel to coil → uncoiler → end straightener → flattener → shear welder → storage material unit → formed, welding, cooling, accurate pipe Dia. size → accurate pipe length size, cutting → inspection → package
