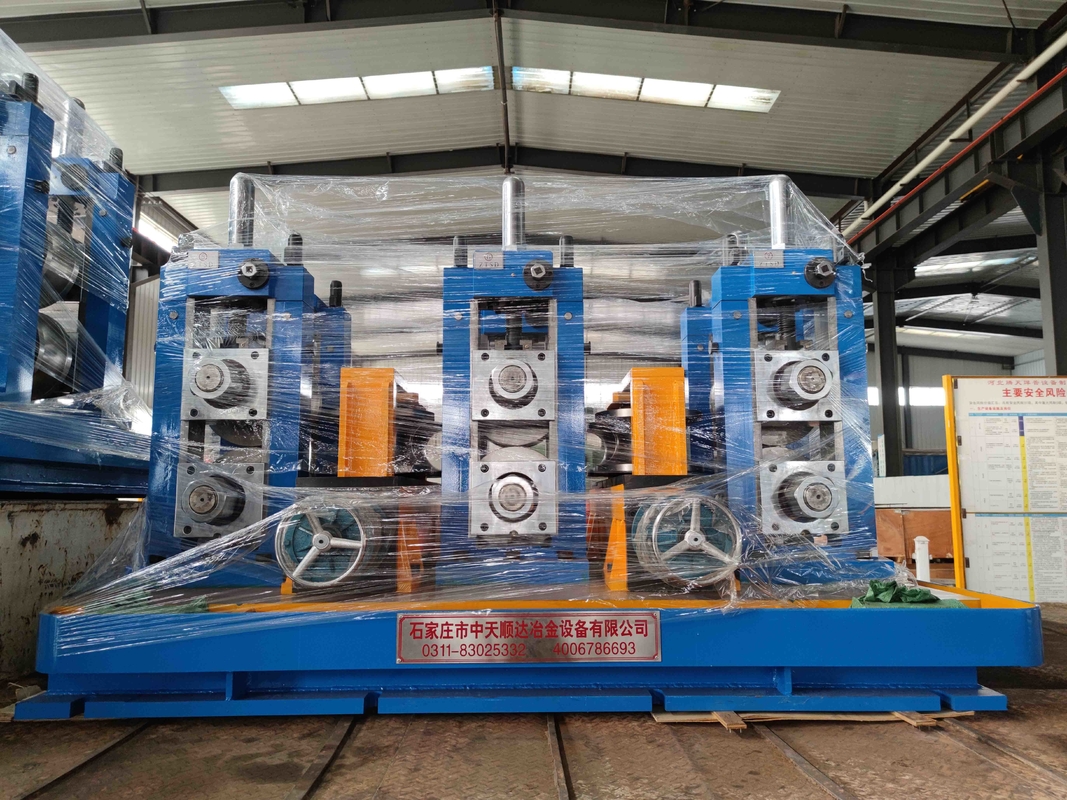

ERW Tube Mill 95mm Carbon Steel Pipe Production Line 90m/min

Name: ERW Tube Mill 95mm Carbon Steel Pipe Production Line 90m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG95
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG95

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG95

Product Name:

Welded Tube Mill Speed 90m / Min Production Line Diameter 95mm Blue ERW Tube Making Machine

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

400KW

Speed:

MAX 90 M / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

25mm-95mm

Warranty:

1 Year

Keywords:

ERW Tube Making Machine

Highlight:

High Light

Highlight:

welded automatic tube mill

90m/min automatic tube mill

diameter 95mm erw tube mill

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

Welded Automatic Tube Mill Speed 90m/Min Production Line Diameter 95mm

Product Specifications

Attribute	Value
Product name	Welded Tube Mill Speed 90m / min production line Diameter 95mm Blue ERW tube making machine
After-sales service	Engineers available to service machinery overseas
Pipe material	Carbon Steel
Voltage	380V
Power	400KW
Speed	MAX 90 m / min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	25mm-95mm
Warranty	1 year

Product Description

QHG95 high frequency straight welded pipe mill line is used to manufacture welded steel pipe. After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Round pipe size: 25-95mm

Pipe thickness: 1.0-3.5mm

ERW PIPE MILL Models

Serial number	Model	Thickness(mm)	Specification(mm)	Speed(m/min)	Main engine(kw)	Power(kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Hydrostatic testing
End facer
Straightener
Packing
Storage

Our Service

We will send the engineer for the installation and training your workers how to operate this machine in correct way.
Warranty Team: One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
We supply the pre-sell and after-sell service including workshop design, production output design, installation and training, and skilled engineer support.
We can also send the engineer working for you several months or 1 year to help improve output, reduce waste and decrease costs.
We supply pre-sell service including design for whole project for stainless steel pipe making/carbon steel pipe making.
We will be responsible for the loading and shipping.
