| Production Name: | High Speed 89 Mm Welded Pipe Mill ,Pipe Making Machine For Round | Max Size: | 45 - 102 Mm |
|---|---|---|---|
| Thickness: | 1.0 - 4.0 Mm | Length: | 6m |
| Warranty: | One Year | Pipe Material: | Carbon Steel |
| Pipe Shape: | Round And Square | Key Words: | Pipe Making Machine For Round |
| High Light: | 89 mm hf tube mill,round hf tube mill,high speed welded tube mill |
||

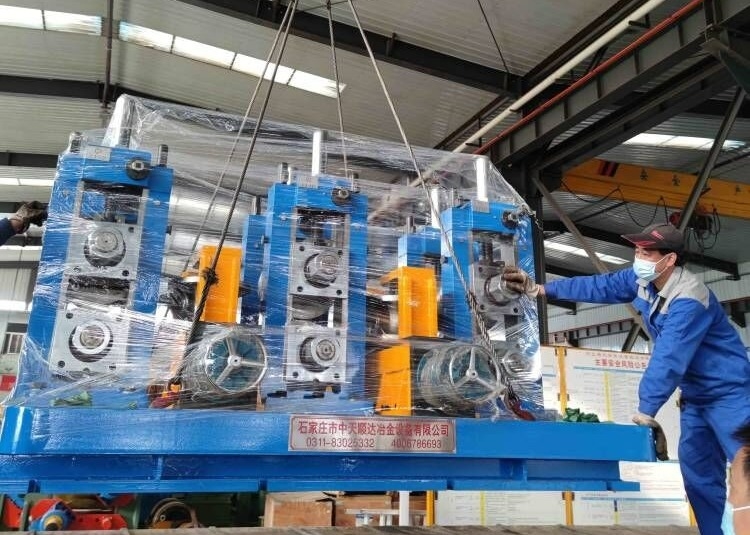

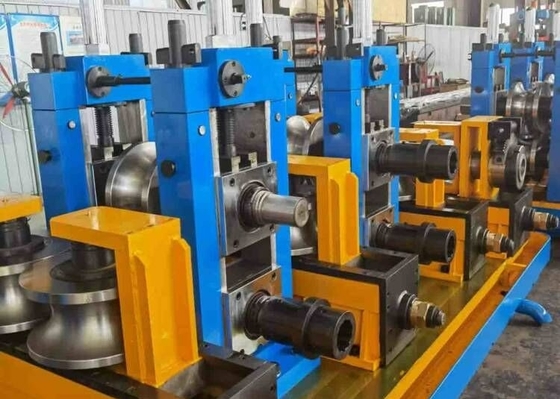

The high-frequency round welded pipe production line is used to produce welded pipes with a diameter of Φ 45 - Φ 102 mm and the wall thickness of 1 . 0 - 4 . 0 mm. The equipment has high precision and good stability. The main equipment is processed by CNC machining center to ensure the accuracy of each part, so as to ensure the accuracy of the whole machine and ensure product quality.
2.Main Parameters and Specifications:
⑴ Material Specifications :
| Material | Low carbon steel and low alloy constructional steel |
| strip width | 160 - 320 mm |
| strip thickness | 1 . 0 - 4 . 0 mm |
| I.D of Coils | 508 mm |
| O.D of Coils | 1800 mm |
| Coil Weight | 6 T |
⑵ Welded Pipe Specification :
| Round Pipe Diameter | Φ 45 ～ φ 102 mm |
| pipe thickness | 1 . 0 - 4 . 0 mm |
| Finish pipe length | 6 m |
| Cut length accuracy | ± 3 mm |
| Forming speed | 20 - 60 m / min |
⑶ workshop require : 6 m wide, 80 m long, at least 5m high from Ceiling Rails to Ground.
Notice:You can modify it according to the actual length of the workshop
