Square Round 50 Mm Welded Pipe Mill 40-120m/Min Speed High Frequency Straight

Square Round 50 Mm Welded Pipe Mill 40-120m/Min Speed High Frequency Straight
Square Round 50 Mm Welded Pipe Mill 40-120m/Min Speed High Frequency Straight Square Round 50 Mm Welded Pipe Mill 40-120m/Min Speed High Frequency Straight Square Round 50 Mm Welded Pipe Mill 40-120m/Min Speed High Frequency Straight

Large Image :  Square Round 50 Mm Welded Pipe Mill 40-120m/Min Speed High Frequency Straight

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: HG 50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 100 wording days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 set/year
Detailed Product Description
Production Name: Square Round 50 Mm Steel Tube Pipe Making Machinery 40-120m/Min Speed Model: HG 50
Feature: High Speed Other Pipe: Rectangular Pipe
Max Size: 12 - 53 Mm Thickness: 0 . 6 - 2 . 0 Mm
Cutting Length: 4 - 6 M Warranty: One Year
Key Words: 40-120m/Min Speed Welded Pipe Mill
High Light:

high frequency straight welded pipe mill

,

50 mm welded pipe mill

,

high frequency straight welded tube mill

Square Round 50 Mm Steel Tube Pipe Making Machinery 40-120m/Min Speed

I.50 Mm Steel Tube Pipe Making Machinery Introduction



HG50 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.



Round pipe size: 12.7-53 mm    Square tube size:10×10-41×41 mm    Pipe thickness: 0.6-2.0 mm





II.50 Mm Steel Tube Pipe Making Machinery Main Parameters and Specifications



Pipe material Low carbon steel and low alloy constructional steel

OD of coil

Φ 1800 mm

ID of coil

Φ 508 mm

Thickness of strip

0 . 6 - 2 . 0 mm

Weight of strip

Max 2.5 Ton

Strip width

40 - 164mm

Welding thickness

0 . 6 - 2 . 0 mm

Length

4 - 6 m

Forming speed

40 - 120 m / min






III.Quality and After-sale Service Warranty



Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.





Finished Product

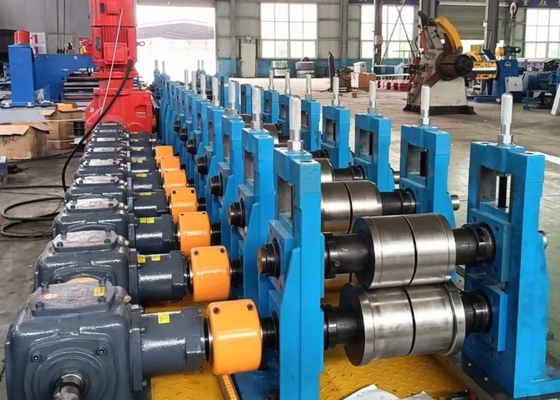

Square Round 50 Mm Welded Pipe Mill 40-120m/Min Speed High Frequency Straight 0

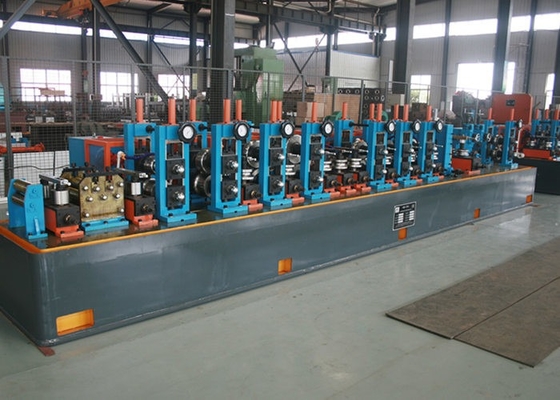

Square Round 50 Mm Welded Pipe Mill 40-120m/Min Speed High Frequency Straight 1

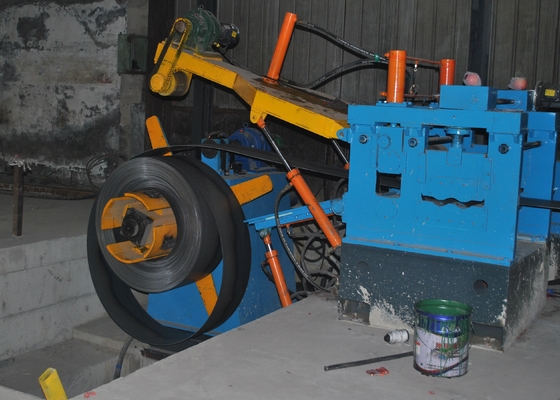

Square Round 50 Mm Welded Pipe Mill 40-120m/Min Speed High Frequency Straight 2
