High Frequency ERW Carbon Steel Pipe Mill 21-63mm 4-10mm Thickness

High Frequency ERW Carbon Steel Pipe Mill 21-63mm 4-10mm Thickness

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001
Model Number: 60
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001
Model Number:
60
Production Name:
High Frequency Straight Seam Erw Carbon Steel Pipe Mill Making Machine
Pipe Diameter:
21 - 63mm
Material:
Carbon Steel,low Alloy Steel
Cutting Saw:
Friction Saw Cutting
Forming Speed:
Max.80m/min
Pipe Thickness:
4.0-10.0mm
Roller Material:
Cr12/SKD11
Key Word:
Erw Carbon Steel Pipe Mill Making Machine
Highlight:

High Light

Highlight:

high frequency erw mill

,

straight seam erw mill

,

stainless steel erw tube mill

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
4 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
50 set per year
Product Description
High Frequency Straight Seam ERW Carbon Steel Pipe Mill Making Machine
Product Specifications
Attribute Value
Pipe Diameter 21 - 63mm
Material Carbon steel, low alloy steel
Cutting Saw Friction Saw Cutting
Forming speed Max. 80m/min
Pipe thickness 4.0-10.0mm
Roller material Cr12/SKD11

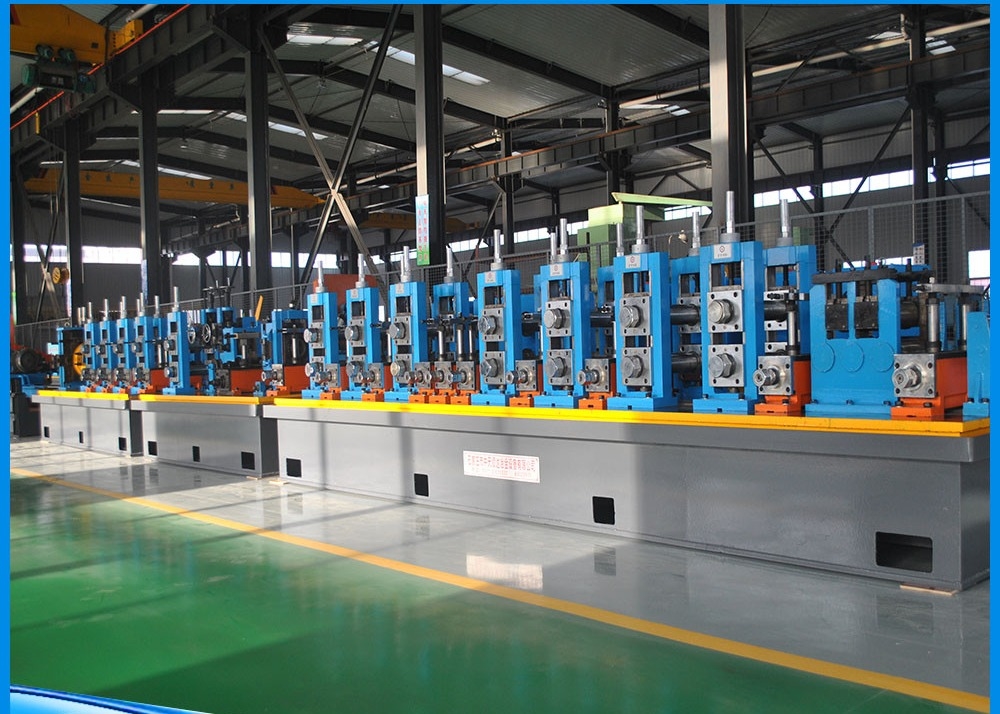

High Frequency ERW Carbon Steel Pipe Mill 21-63mm 4-10mm Thickness 0
Product Overview
This pipe mill is designed for producing Φ21-Φ63mm high-frequency straight seam welded pipes with thickness of 4-10mm, including corresponding square pipes and special-shaped pipes (δ≤2.0mm). The complete production line includes equipment from uncoiler to fixed length cutting saw, with adjustable rolling speed based on pipe diameter and wall thickness.
Material Specifications
Standard: Conforming to YB189-64 standard
Material: Low carbon steel and low alloy constructional steel
Mechanical properties: δs≤345Mpa δb≤610Mpa
Strip Width: 50-200mm
Strip Thickness: 4.0-10.0mm
Pipe Specifications
Pipe Diameter: Round pipe: 21-63mm
Thickness: 4-10.0mm
Length: 6-12m
Pipe-cutting Precision: 0-6mm
Forming Speed: 10-50m/min
Buyer Requirements
Workshop: 60x6m, H>5m (crane to ground)
Power: Approx. 1212KW 380V/50Hz/3phases
Cooling Water: Flow: 20T/h~30 T/h, Pool Volume: 30m³
Compressed Air: Flow: 5m³/min, Pressure: 5-7kg/cm²
High Frequency ERW Carbon Steel Pipe Mill 21-63mm 4-10mm Thickness 1
Quality Assurance & After-Sales Service
Our technical personnel will provide on-site debugging, maintenance, and commissioning services upon equipment arrival. We conduct comprehensive training for operation and maintenance personnel. The equipment comes with a 12-month warranty from the arrival date. Under normal operating conditions, we provide free repair or replacement for any quality-related issues.
ERW Tube Mill Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
