| Production Name: | Round 159 Mm Carbon Steel Erw Pipe Mill | Material: | HRC,CRC,Galvanised Steel |
|---|---|---|---|
| Pipe Diamete: | 65-159mm | Pipe Thickness: | 2.0-8.0mm |
| Welding Type: | High Frequency Welding | Pipe Shape: | Round,square,rectangular |
| Roller Materoal: | Cr12/SKD11 | Key Words: | Erw Pipe Mill |
| High Light: | 159 mm erw pipe mill,round erw pipe mill,159 mm erw tube mill |
||

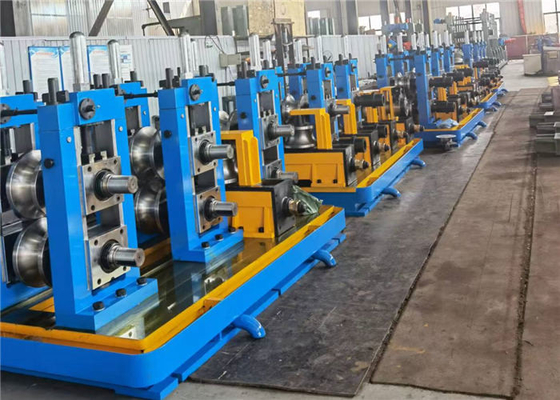

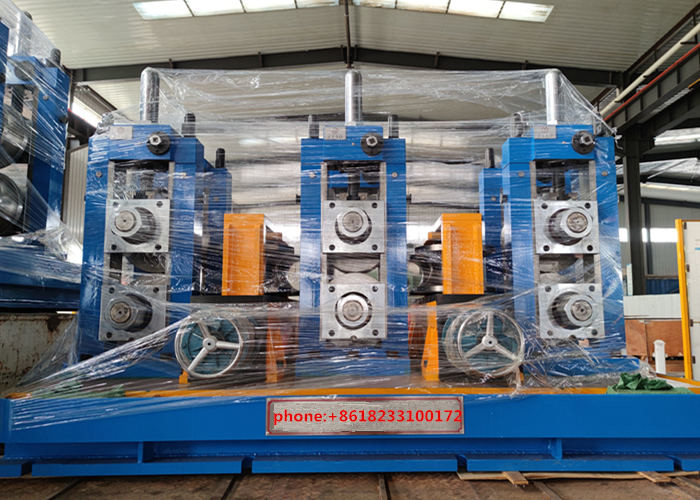

Round 159 Mm Carbon Steel Erw Pipe Mill is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.
Round pipe size: 65--159mm Pipe thickness: 2.0-8.0mm
square tube size:50x50-125x125mm, tube thickness: 2.0-7.0mm
| Conforming to the YB189-64 standard | |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤380Mpa,σs≤275MPa |
| strip width | 200～500mm |
| strip thickness | 2.0～8.0mm |
| I.D of Coils | Φ508mm |
| O.D of Coils | φ2000mm |
| Coil Weight | ≤8T |
| Round Pipe Diameter | Φ65～φ159mm |
| square tube size | 50x50-125x125mm |
| pipe thickness | 2.0-8.0mm |
| Finish pipe length | 4-8m |
| Cut length accuracy | ±2mm |
| Forming speed | 20-50m/min |
| 8m wide, 120m long, at least 6m high from Ceiling Rails to Ground. |
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
