HRC CRC Square ERW Tube Mill 150x150mm 4.0mm Thick

Name: HRC CRC Square ERW Tube Mill 150x150mm 4.0mm Thick
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG219

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG219

Production Name:

Hrc Crc Square Erw Tube Mill 150x150mm 4.0mm Thick

Material:

HRC,CRC,Galvanised Steel

Pipe Diamete:

114-219 Mm

Pipe Thickness:

4.0-8.0mm

Welding Type:

H.F Solid Welder

Pipe Shape:

Round,square,rectangular,LTZ

Roller Materoal:

Cr12/SKD11

Key Words:

Erw Pipe Mill

Highlight:

High Light

Highlight:

hrc erw tube mill

150x150mm erw pipe mill

crc erw tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days/Year

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets

Product Description

HRC CRC Square ERW Tube Mill 150x150mm 4.0mm Thick

Product Specifications

Attribute	Value
Production Name	HRC CRC Square ERW Tube Mill 150x150mm 4.0mm Thick
Material	HRC, CRC, Galvanised Steel
Pipe Diameter	114-219 mm
Pipe Thickness	4.0-8.0mm
Welding Type	H.F solid welder
Pipe Shape	Round, square, rectangular, LTZ
Roller Material	Cr12/SKD11

Product Description

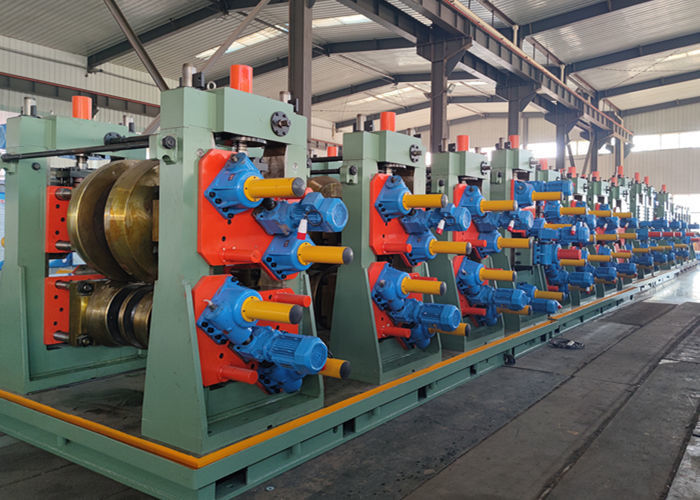

The HRC CRC Square Tube 150x150mm ERW Pipe Mill is designed for manufacturing high-precision welded steel pipes. Incorporating advanced domestic and international pipe-making technology, this mill produces tubes in various sizes and shapes while maintaining exceptional dimensional accuracy.

Available Sizes

Round pipes: 114-219mm diameter, 4.0-8.0mm thickness
Square tubes: 90x90-150x150mm, 4.0-8.0mm thickness

Material Specifications

Conforms to YB189-64 standard
Steel material: Q235/Q345
Mechanical properties: σb≤380Mpa, σs≤275MPa
Strip width: 200-600mm
Strip thickness: 4.0-8.0mm
Coil inner diameter: Φ508mm
Coil outer diameter: φ2000mm
Coil weight: 8TON

Welded Pipe Specifications

Round pipe diameter: Φ114-φ219mm
Square tube size: 50x50-150x150mm
Pipe thickness: 4.0-8.0mm
Finished pipe length: 6-12m
Forming speed: 20-50m/min

Workshop Requirements

Minimum workshop dimensions: 8m wide × 100m long × 6m ceiling height (from rails to ground).

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20
