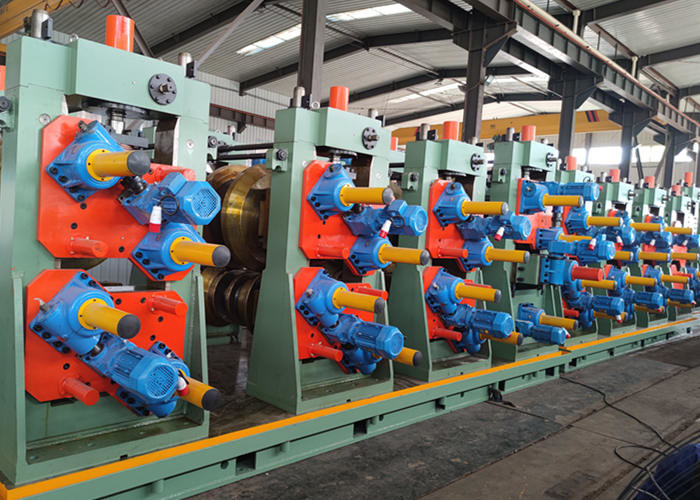

Galvanized Steel ERW Pipe Mill for Square Tube 100x100-200x200mm

Name: Galvanized Steel ERW Pipe Mill for Square Tube 100x100-200x200mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 200x200
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	200x200

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

200x200

Production Name:

Galvanized Steel Erw Pipe Mill High Frequency For Square Tube

Material:

HRC,CRC,Galvanised Steel

Tube Size:

100x100-200x200 Mm

Tube Thickness:

5.0-10.0mm

Welding Type:

H.F Solid Welder

Pipe Shape:

Square,rectangular,LTZ

Roller Materoal:

Cr12/SKD11

Key Words:

Galvanized Steel Erw Pipe Mill

Highlight:

High Light

Highlight:

galvanized steel erw pipe mill

high frequency erw pipe mill

square tube erw tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

150 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets

Product Description

Galvanized Steel ERW Pipe Mill High Frequency for Square Tube

Product Attributes

Attribute	Value
Production Name	Galvanized Steel ERW Pipe Mill High Frequency for Square Tube
Material	HRC, CRC, Galvanised Steel
Tube Size	100x100-200x200 mm
Tube Thickness	5.0-10.0mm
Welding Type	H.F solid welder
Pipe Shape	Square, Rectangular, LTZ
Roller Material	Cr12/SKD11

Product Description

Our Galvanized Steel High Frequency Square Pipe ERW Pipe Mill is designed for manufacturing welded steel pipes with precision. Incorporating advanced pipe making technology from domestic and international sources, this mill produces tubes in various sizes and shapes while maintaining high dimensional accuracy.

Main Parameters and Specifications

Conforms to YB189-64 standard
Steel material: Q235/Q345
Mechanical properties: σb≤380Mpa, σs≤275MPa
Strip width: 400-800MM
Strip thickness: 5.0-10.0MM
I.D of Coils: Φ508mm
O.D of Coils: φ2000mm
Coil Weight: 10TON

Quality and Service Warranty

Our technical service personnel will visit your factory after machine delivery to provide comprehensive guidance on operation, debugging, and maintenance. We offer complete technical training for your equipment operation and maintenance staff.

Full line warranty: 1 year

Working Process

Strip steel to coil → Uncoiler → Shear welder → Storage material unit → Forming, welding, cooling → Precise pipe diameter sizing → Precise pipe length sizing, cutting → Inspection → Packaging

Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20
