Home > products >
Welded Pipe Mill
>

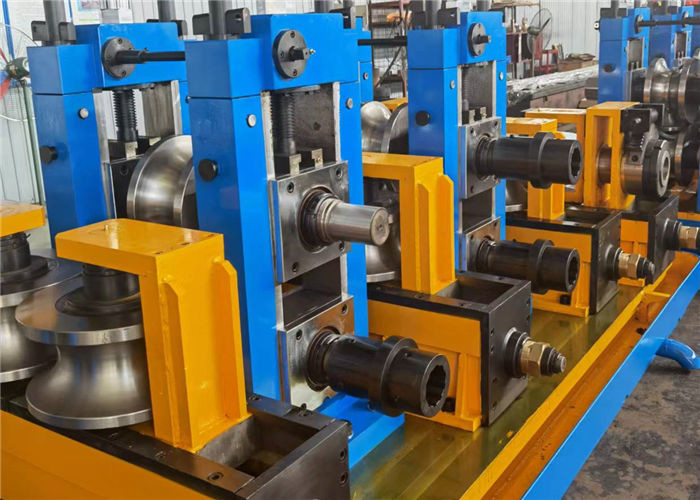

Carbon Steel Automatic High Frequency Welded Pipe Mill 50x50-120x120mm
Carbon Steel Automatic High Frequency Welded Pipe Mill 50x50-120x120mm
  • Carbon Steel Automatic High Frequency Welded Pipe Mill 50x50-120x120mm
  • Carbon Steel Automatic High Frequency Welded Pipe Mill 50x50-120x120mm

Carbon Steel Automatic High Frequency Welded Pipe Mill 50x50-120x120mm

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: 120x120
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
120x120
Production Name:
Carbon Steel Automatic High Frequency Welded Pipe Mill
Material:
HRC,CRC,Galvanised Steel
Tube Size:
50x50-120x120 Mm
Tube Thickness:
2.0-5.0mm
Forming Type:
FFX Forming
Pipe Shape:
Square,rectangular,LTZ
Roller Materoal:
Cr12/SKD11
Key Words:
Welded Pipe Mill
Highlight:

High Light

Highlight:

120x120 welded pipe mill

,

hrc welded pipe mill

,

120x120 welded tube mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
four month
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
30 Sets
Product Description
Carbon Steel 120x120 Hrc Welded Pipe Mill Automatic High Frequency
Product Specifications
Production Name Carbon Steel Automatic High Frequency Welded Pipe Mill
Material HRC, CRC, Galvanised Steel
Tube Size 50x50-120x120 mm
Tube Thickness 2.0-5.0mm
Forming Type FFX forming
Pipe Shape Square, Rectangular, LTZ
Roller Material Cr12/SKD11
Product Description
The Carbon Steel Automatic High Frequency Welded Pipe Mill is designed to produce high-quality welded steel pipes including round, square, and deformed pipes (LTZ pipes). Featuring advanced roll pass design, this production line delivers precision machining and high assembly accuracy.
Available in various configurations (normal, full automatic, semi-automatic, and high precision models), our tube mill machines can be customized to meet specific production requirements. Capable of processing sizes from 50x50mm to 120x120mm with thickness ranging from 2.0-5.0mm.
Material Specifications
  • Conforms to YB189-64 standard
  • Steel material: Q235/Q345
  • Mechanical properties: σb≤380Mpa, σs≤275MPa
  • Strip width: 200-400MM
  • Strip thickness: 2.0-5.0MM
  • I.D of Coils: Φ508mm
  • O.D of Coils: φ2000mm
  • Coil Weight: 7TON
Quality and Service Warranty
Our technical service team provides on-site guidance for operation, debugging, and maintenance after machine installation, including comprehensive training for your personnel. The complete production line comes with a one-year warranty.
Working Process
Strip steel to coil → uncoiler → shear welder → storage material unit → forming, welding, cooling → pipe diameter sizing → length cutting → inspection → packaging
Tube Mill Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
Carbon Steel Automatic High Frequency Welded Pipe Mill 50x50-120x120mm 0 Carbon Steel Automatic High Frequency Welded Pipe Mill 50x50-120x120mm 1 Carbon Steel Automatic High Frequency Welded Pipe Mill 50x50-120x120mm 2 Carbon Steel Automatic High Frequency Welded Pipe Mill 50x50-120x120mm 3
