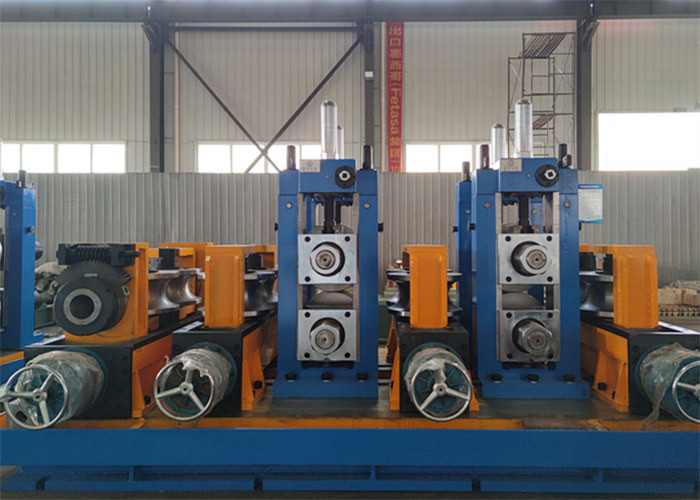

Straight Seam CRC HF Welded Pipe Mill 60-127mm Round Square

Name: Straight Seam CRC HF Welded Pipe Mill 60-127mm Round Square
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG127
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG127

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG127

Production Name:

Straight Seam CRC Square Round Tube Welded Pipe Mill

Material:

HRC,CRC,Galvanised Steel

Pipe Diamete:

60-127mm

Pipe Thickness:

2.0-5.0mm

Welding Type:

High Frequency Welding

Pipe Shape:

Round,square,rectangular

Roller Materoal:

Cr12/SKD11

Key Words:

Welded Pipe Mill

Highlight:

High Light

Highlight:

straight seam hf welded tube mill

crc hf welded tube mill

square welded tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

three month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets

Product Description

Straight Seam CRC HF Welded Tube Mill Square Round

Product Attributes

Production Name	Straight Seam CRC Square Round Tube Welded Pipe Mill
Material	HRC, CRC, Galvanised Steel
Pipe Diameter	60-127mm
Pipe Thickness	2.0-5.0mm
Welding Type	High Frequency Welding
Pipe Shape	Round, square, rectangular
Roller Material	Cr12/SKD11
Key Words	Welded Pipe Mill

Product Description

The Straight Seam CRC Square Round Tube Welded Pipe Mill is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, this mill produces tubes of various sizes and shapes with guaranteed precision. Capable of producing round pipes from 60-127mm in diameter with wall thicknesses of 2.0-5.0mm, the machine can be customized to meet specific customer requirements.

Material Specifications

Standard	Conforming to YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical Properties	σb≤380Mpa, σs≤275MPa
Strip Width	200-400mm
Strip Thickness	2.0-5.0mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤5T

Welded Pipe Specifications

Round Pipe Diameter	Φ60-φ127mm
Square Tube Size	40x40-100x100mm
Pipe Thickness	2.0-5.0mm
Finish Pipe Length	4-8m
Cut Length Accuracy	±2mm
Forming Speed	30-80m/min

Working Process

Strip steel to coil
Uncoiler
Shear welder
Storage material unit
Forming, welding, cooling, accurate pipe diameter sizing
Accurate pipe length sizing and cutting
Inspection
Packaging

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20
