| Production Name: | Straight Seam CRC Square Round Tube Welded Pipe Mill | Material: | HRC,CRC,Galvanised Steel |
|---|---|---|---|
| Pipe Diamete: | 60-127mm | Pipe Thickness: | 2.0-5.0mm |
| Welding Type: | High Frequency Welding | Pipe Shape: | Round,square,rectangular |
| Roller Materoal: | Cr12/SKD11 | Key Words: | Welded Pipe Mill |
| High Light: | straight seam hf welded tube mill,crc hf welded tube mill,square welded tube mill |
||

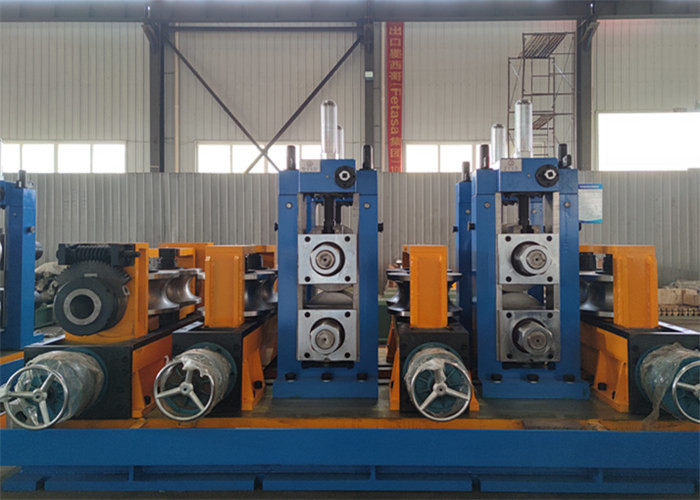

Straight Seam CRC Square Round Tube Welded Pipe Mill is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.Round pipe size: 60--127mm Pipe thickness: 2.0-5.0mm,we has different model tube mill machine,also can design according to customer different require.
| Conforming to the YB189-64 standard | |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤380Mpa,σs≤275MPa |
| strip width | 200～400mm |
| strip thickness | 2.0～5.0mm |
| I.D of Coils | Φ508mm |
| O.D of Coils | φ1800mm |
| Coil Weight | ≤5T |
| Round Pipe Diameter | Φ60～φ127mm |
| square tube size | 40x40-100x100mm |
| pipe thickness | 2.0-5.0mm |
| Finish pipe length | 4-8m |
| Cut length accuracy | ±2mm |
| Forming speed | 30-80m/min |
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
