| Production Name: | CE / ISO High Precision ERW Tube Mill Line Customs Pipe Making Machine | Model: | 127 |
|---|---|---|---|
| Feature: | High Precision And Customed Pipe Mill | Other Pipe: | Round ,square And Rectangular Pipe |
| Max Size: | 50.8 ～ 139.8 Mm | Thickness: | 1 . 0 - 4 . 0 Mm |
| Length: | 4 M - 6 M | Rollers: | Include |
| Warranty: | One Year | Key Words: | Customs Pipe Making Machine |
| High Light: | High Precision ERW Tube Mill,ISO ERW Tube Mill Machine,CE ERW Tube Mill Machine |
||

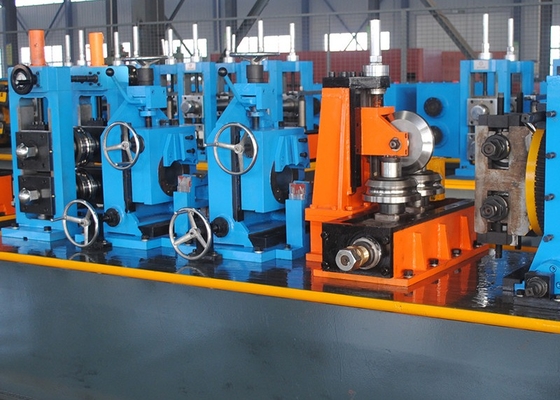

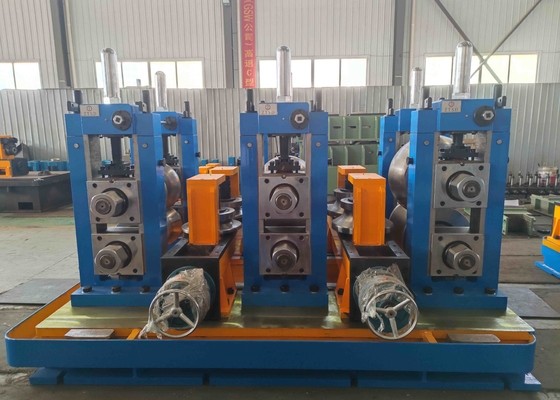

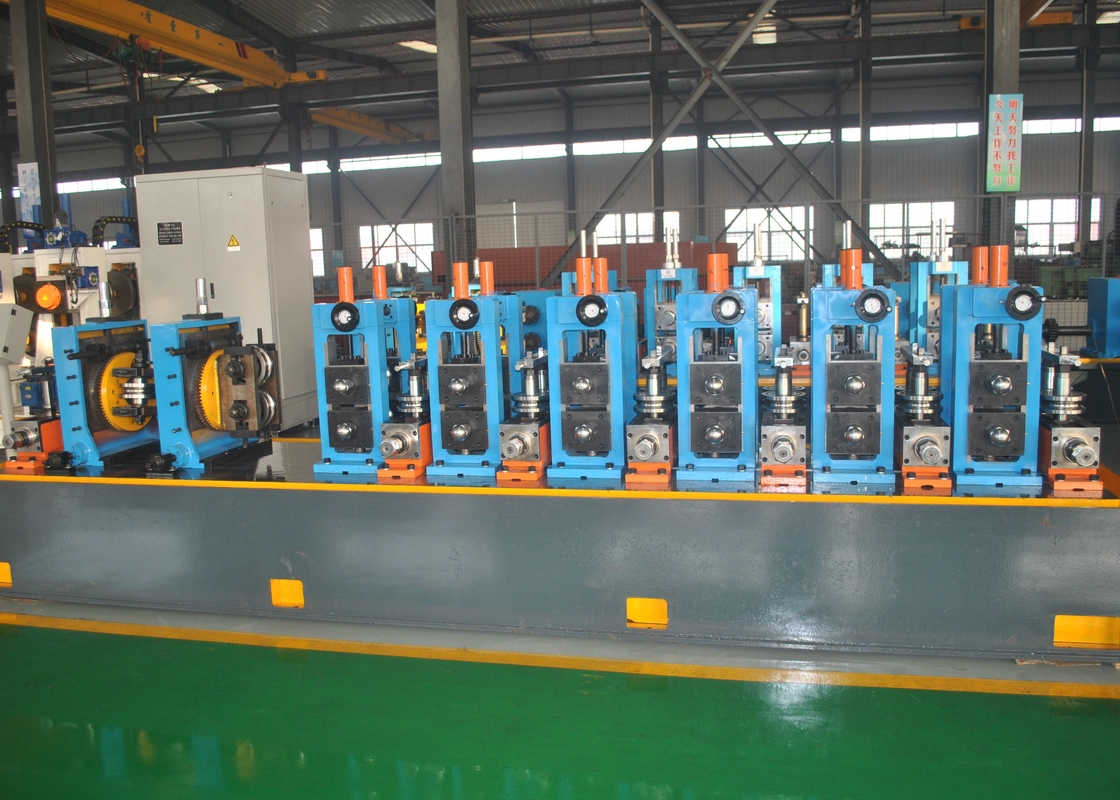

127 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Round pipe size: 50.8--139.8mm Pipe thickness: 1.0-4.0mm
(1)Material Specifications:
| Conforming to the YB189-64 standard | |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤380Mpa,σs≤275MPa |
| strip width | 159～440mm |
| strip thickness | 1.0～4.0mm |
| I.D of Coils | Φ508mm |
| O.D of Coils | Φ2000mm |
| Coil Weight | ≤4T |
(2)Welded Pipe Specification:
| Round Pipe Diameter | Φ50.8～φ139.8mm |
| Square tube size | 40x40-110x110mm |
| pipe thickness | 1.0-4.0mm |
| Finish pipe length | 4-6m |
| Cut length accuracy | ±2mm |
| Forming speed | 20-60m/min |
(3)Power, Water & Air Supply:
| Power | Power Volume of the Line | Approx.600KW |
| Power Source | 480V/60Hz/3phases | |
| Circulation Cooling Water | Flow | 20T/h～30 T/h |
| Pool Volume | 30m3 | |
| Compressed Air | Flow | 5m3/min |
| Pressure | 5～11kg/ cm2 |
(4)workshop require:
| 6m wide,80m long, at least 5m high from Ceiling Rails to Ground. |
