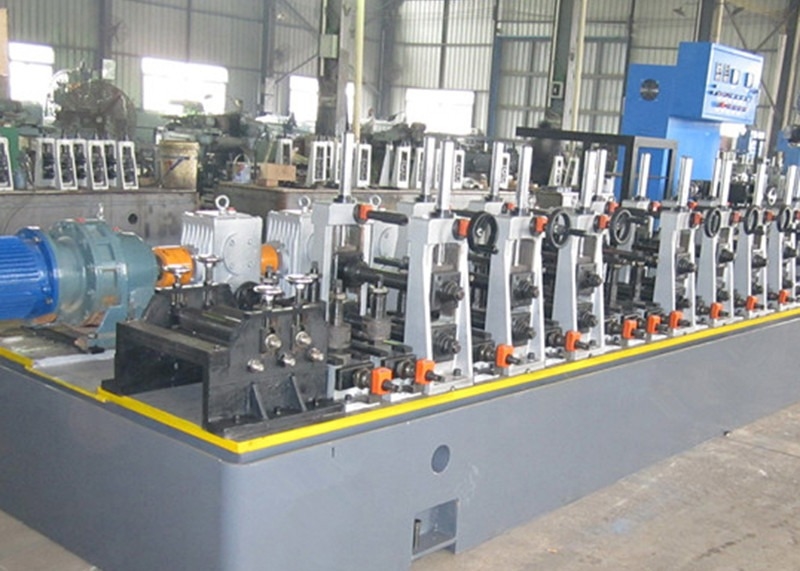

30-100mm High Frequency Welded Pipe Mill for Carbon Steel

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	100

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

100

Product Name:

Construction 30 - 100 Mm High Frequency Pipe Mill Welded Pipe Production Line

Forming Method:

Roller Squeeze

Warranty:

One Year

Pipe Material:

Carbon Steel

Pipe Shape:

Round And Square

Thickness:

1 . 0 Mm - 3 . 0 Mm

Pipe Diameter:

30 - 100mm

Key Words:

High Frequency Pipe Mill Welded Pipe Production Line

Highlight:

High Light

Highlight:

BV Welded Pipe Production Line

100 Mm High Frequency Pipe Mill

30Mm High Frequency Pipe Mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

300 work days

Payment Terms:

L/C,T/T,D/A,T/T

Supply Ability:

4 Sets/Year

Product Description

Construction 30 - 100 Mm High Frequency Pipe Mill Welded Pipe Production Line

Product Specifications

Attribute	Value
Product name	Construction 30 - 100 Mm High Frequency Pipe Mill Welded Pipe Production Line
Forming method	Roller Squeeze
Warranty	One year
Pipe material	Carbon Steel
Pipe shape	Round and square
Thickness	1.0 mm - 3.0 mm
Pipe diameter	30 - 100mm

Production Process

Loading car
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Layout table

General Introduction

The 102 high frequency straight welded pipe mill line is used to manufacture welded steel pipe. After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit is not only economical but also practical.

Available Pipe Sizes

Round pipe:

31.8-101.6mm diameter, 1.0-3.25mm thickness

Square pipe:

25×25-80×80mm, 1.0-3.0mm thickness

Rectangular pipe:

20×30-50×100mm, 1.0-3.0mm thickness

Material Specifications

Standard	Conforming to the YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa, σs≤275MPa
Strip width	100-320mm
Strip thickness	1.0-3.25mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤4T

Welded Pipe Specifications

Round Pipe Diameter	Φ31.8-φ101.6mm
Square tube size	25x25-80x80mm
Strip thickness	1.0-3.25mm
Finish pipe length	4-6m
Cut length accuracy	±2mm
Forming speed	20-80m/min
