| Production Name: | Industrial ERW Pipe Mill High Frequency Welding Pipe Making Machinery Mill | Pipe Shape: | Round,square |
|---|---|---|---|
| Pipe Diameter: | 16 - 76 Mm | Thickness: | 0 . 7 - 2 . 5 Mm |
| Color: | Blue And White | Speed: | 30 -120m/min |
| Material: | Galvanized Steel | Key Words: | High Frequency Welding Pipe Making Machinery Mill |
| High Light: | Industrial ERW Pipe Mill,ERW Pipe Mill High Frequency,ERW Pipe Mill 120m/min |
||

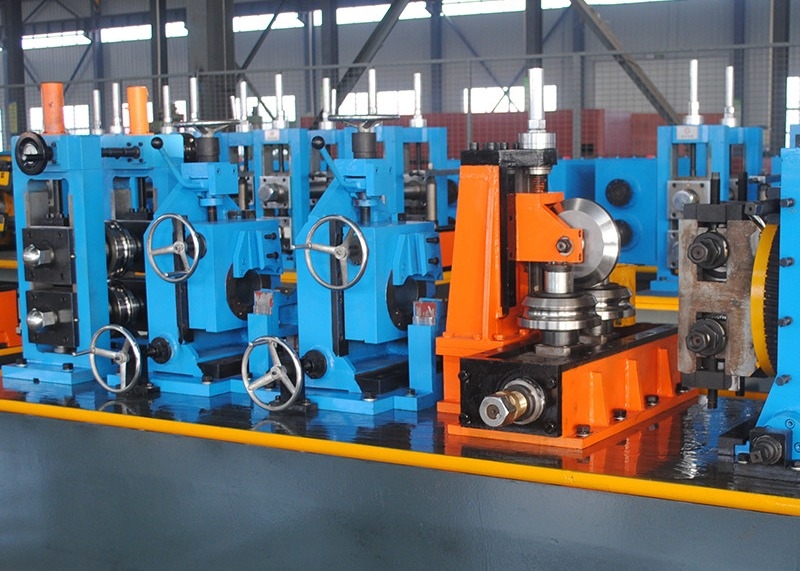

High-frequency welded pipe machine is a straight seam welded pipe machine, and other pipe machine is different from the place of its welding.

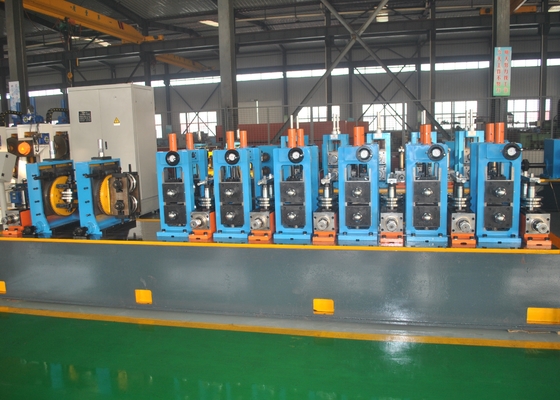

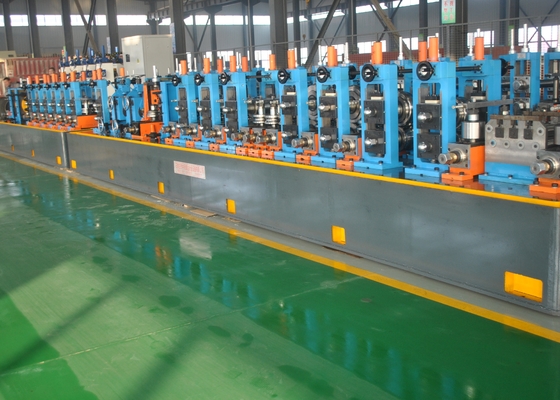

60 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Round pipe size: 16--60mm Pipe thickness: 0.7-2.0mm
Material Specifications:
| Conforming to the YB189-64 standard | |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤380Mpa,σs≤275MPa |
| strip width | 50～190mm |
| strip thickness | 0.7～2.0mm |
| I.D of Coils | Φ508mm |
| O.D of Coils | φ1800mm |
| Coil Weight | ≤3T |
Welded Pipe Specification
| Round Pipe Diameter | Φ16～φ60mm |
| pipe thickness | 0.7-2.0mm |
| Finish pipe length | 4-6m |
| Cut length accuracy | ±2mm |
| Forming speed | 40-120m/min |
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Molding speed(m/min) | Motor Power(KW) |
Mechanical area (m³) |
| HG20 | 8-20MM | 0.3-1MM | 30-120 | 55 | 7×50 |
| HG32 | 12-32MM | 0.3-2.0MM | 30-120 | 75 | 7×50 |
| HG50 | 16-50MM | 0.8-2.5MM | 30-110 | 110 | 7×60 |
| HG60 | 20-60MM | 0.8-3MM | 30-100 | 132 | 7×65 |
| HG76 | 12-76MM | 1-3MM | 30-100 | 320 | 8×80 |
| HG89 | 32-89MM | 1-4MM | 30-80 | 350 | 8×80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 | 400 | 10×100 |
| HG165 | 60-165MM | 3-7MM | 30-50 | 600 | 10×110 |
| HG219 | 114-219MM | 4-8MM | 20-40 | 800 | 12×150 |
| HG273 | 114-273MM | 4-10MM | 15-30 | 1000 | 18×160 |
| HG325 | 165-325MM | 4-12MM | 10-30 | 1200 | 18×180 |
| HG426 | 165-426MM | 4-16MM | 8-25 | 1400 | 18×180 |
| HG508 | 219-508MM | 4-20MM | 8-20 | 2000 | 21×180 |
