| Production Name: | Galvanized Steel 89 Mm Round Tube Mill Machine For 1mm Thick Pipe Making Machine | Forming Method: | FFX Forming Technology |
|---|---|---|---|
| Running Speed: | Max. 60 M / Min | Pipe Shape: | Round |
| Pipe Diameter: | 45 - 102 Mm | Max.Thickness For Round Pipe: | 1 . 0 - 4 . 0 Mm |
| Welding Type: | High Frequency Welding | Key Words: | Tube Mill Machine For 1mm Thick Pipe Making Machine |
| High Light: | 1mm Thick Tube Mill Machine,89 Mm Tube Mill Machine,Galvanized Steel ERW Tube Mill Machine |
||

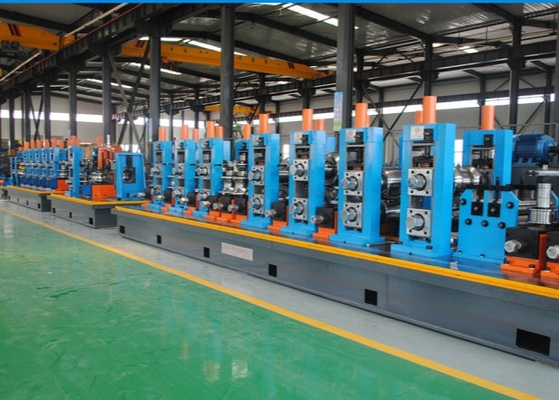

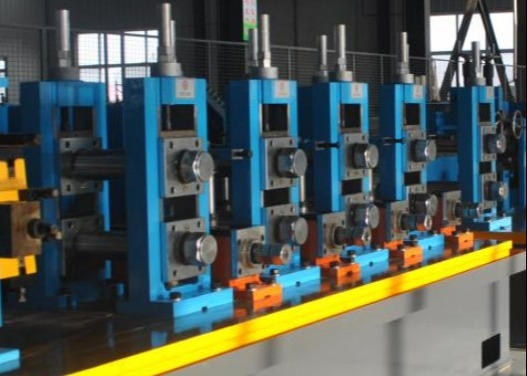

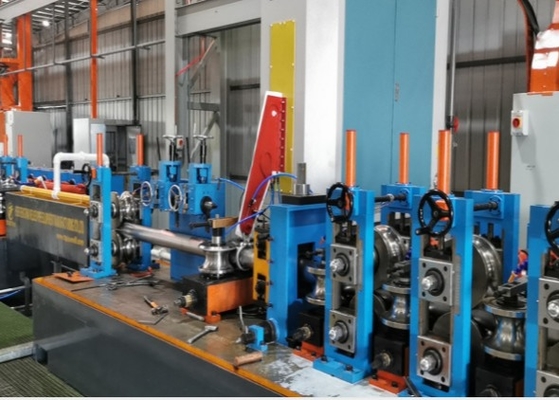

HG89 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Round pipe size: 45 -- 102 mm Square pipe size: 40 × 40 -- 60 × 80 mm Pipe thickness: 1 . 0 - 4 . 0 mm
As an CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China. Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other over 30 countries.
1. Raw Material
| 1 | Mateairal | Low carbon steel and low alloy constructional steel |
| 2 | Material properties |
σb≤380Mpa,σs≤275MPa |
| 3 | ID of the steel strips | Φ 508 mm |
| 4 | OD of the steel strips | Φ 1800 mm |
| 5 | Coiler weight | Max.6 T |
2. Production Range:
| Round Pipe | φ 45 - 102 mm | Thickness: 1 . 0 - 4 . 0 mm |
