Product Details:
Payment & Shipping Terms:
|
| Production Name: | Blue Colour High Precision Erw Pipe Mill/Tube Mill/Pipe Making Machine For Round Pipe | Application: | Natural Gas,Drain Pipe,3 NB Tube Production |
|---|---|---|---|
| Voltage: | 380V/220V | Pipe Diameter: | 16-76mm |
| Thickness: | 0.7-2.5mm | Speed: | 30-120m/min |
| Key Words: | Pipe Making Machine For Round Pipe | ||
| High Light: | Blue Colour Erw Pipe Mill,High Precision Erw Pipe Mill,120m/min Erw Pipe Mill |
||
Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table→hydro testing→end facing for API standard we can equiped online testing equipments, like Hydro testing equipment, End facing equipment, UT testing, ECT testing etc.

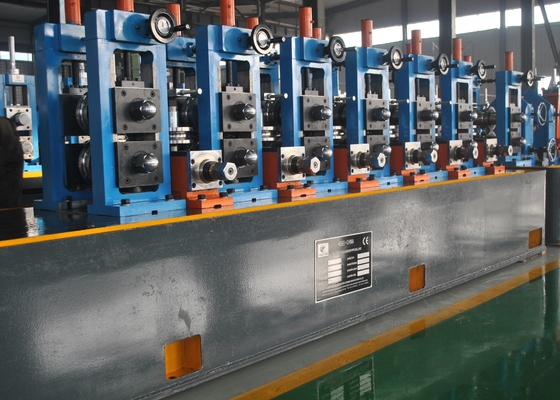

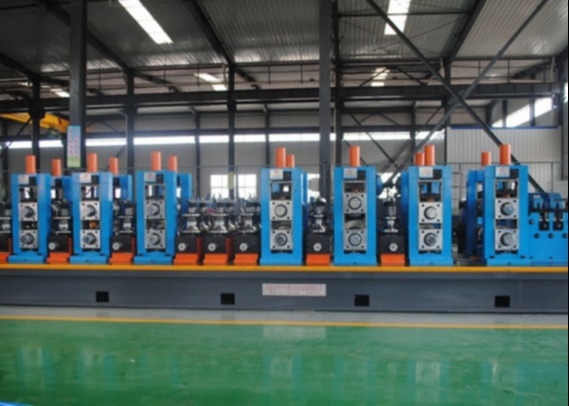

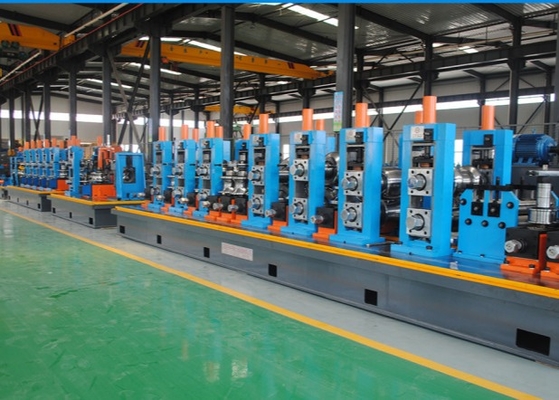

76 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Round pipe size: 16--76mm Round pipe thickness:0.4-2.75mm
Square tube size:15×15--60×60mm Square Pipe thickness: 0.4-2.0mm
Accordingly to the market demands. We are given the standard models as blew, and this is for your reference only, the production range and main technical can be adjustable suppose your company have special requirement.
Material Specifications
| Conforming to the YB189-64 standard | |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤380Mpa,σs≤275MPa |
| strip width | 50～240mm |
| strip thickness | 0.4～2.75mm |
| I.D of Coils | Φ508mm |
| O.D of Coils | φ1800mm |
| Coil Weight | ≤3.0T |
Welded Pipe Specification
| Round Pipe Diameter | Φ16～φ76mm |
| pipe thickness | 0.4-2.75mm |
| Finish pipe length | 4-6m |
| Cut length accuracy | ±2mm |
| Forming speed | 60-120m/min |
Power, Water & Air Supply
| Power | Power Volume of the Line | Approx.600KW |
| Power Source | 380V/60Hz/3phases | |
| Circulation Cooling Water | Flow | 20T/h～30 T/h |
| Pool Volume | 30m3 | |
| Compressed Air | Flow | 5m3/min |
| Pressure | 5～11kg/ cm2 |
workshop require:
| 6m wide, 70m long, at least 5m high from Ceiling Rails to Ground. |
