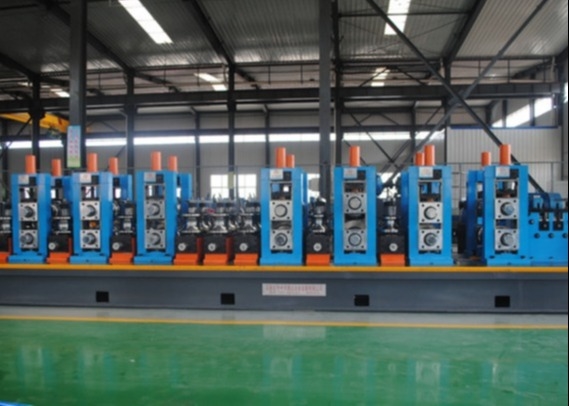

Blue High Precision ERW Pipe Mill Machine for 16-76mm Round Pipe

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001.BV,CE
Model Number:	76

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

ISO9001.BV,CE

Model Number:

Production Name:

Blue Colour High Precision Erw Pipe Mill Machine For Round Pipe

Application:

Natural Gas,Drain Pipe,3 NB Tube Production

Voltage:

380V/220V

Pipe Diameter:

16-76mm

Thickness:

0.7-2.5mm

Speed:

30-120m/min

Roller Material:

Cr12/SKD11

Key Words:

Erw Pipe Mill Machine For Round Pipe

Highlight:

High Light

Highlight:

Blue Colour Erw Pipe Mill

High Precision Erw Pipe Mill

120m/min Erw Pipe Mill

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

50 Sets/Year

Product Description

Blue Colour High Precision ERW Pipe Mill Machine for Round Pipe

Product Specifications

Attribute	Value
Production Name	Blue Colour High Precision ERW Pipe Mill Machine for Round Pipe
Application	Natural gas, Drain Pipe, 3 NB Tube Production
Voltage	380V/220V
Pipe diameter	16-76mm
Thickness	0.7-2.5mm
Speed	30-120m/min
Roller material	Cr12/SKD11

Production Process

Uncoiler → Shear & welding machine → Accumulator (Cage) → Forming machine → HF welding → Sizing machine → Flying saw (Cold saw) → Run out table → Hydro testing → End facing for API standard. Can be equipped with online testing equipment including Hydro testing equipment, End facing equipment, UT testing, ECT testing etc.

Machine Overview

76 high frequency straight welded pipe mill line is used to manufacture welded steel pipe. After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production line is both economical and practical.

Production Capabilities

Round pipe size: 16-76mm
Round pipe thickness: 0.4-2.75mm
Square tube size: 15×15-60×60mm
Square pipe thickness: 0.4-2.0mm

Material Specifications

Standard	Conforming to the YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa, σs≤275MPa
Strip width	50-240mm
Strip thickness	0.4-2.75mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤3.0T

Welded Pipe Specifications

Round Pipe Diameter	Φ16-φ76mm
Pipe thickness	0.4-2.75mm
Finish pipe length	4-6m
Cut length accuracy	±2mm
Forming speed	60-120m/min

Power, Water & Air Supply

Power Volume	Approx. 600KW
Power Source	380V/60Hz/3phases
Circulation Cooling Water Flow	20T/h-30 T/h
Pool Volume	30m³
Compressed Air Flow	5m³/min
Pressure	5-11kg/cm²

Workshop Requirements

6m wide, 70m long, at least 5m high from Ceiling Rails to Ground.
