Product Details:
Payment & Shipping Terms:
|
| Product Name: | Blue Welded Pipe Equipment Forming Speed 70 M / Min Carbon Steel Thickness 4mm ERW Tube Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Pipe Material: | Carbon Steel | Voltage: | 380V |
| Power(w): | 800KW | Speed: | 20 - 70 M / Min |
| Pipe Shape: | Round, Square & Rectangular | Round Pipe Diameter: | 33.7mm - 60.3mm |
| Warranty: | 1 Year | Keywords: | Thickness 4mm ERW Tube Making Machine |
| High Light: | Blue ERW Tube Making Machine,4mm ERW Tube Making Machine,4mm ERW Tube Mill Machine |
||

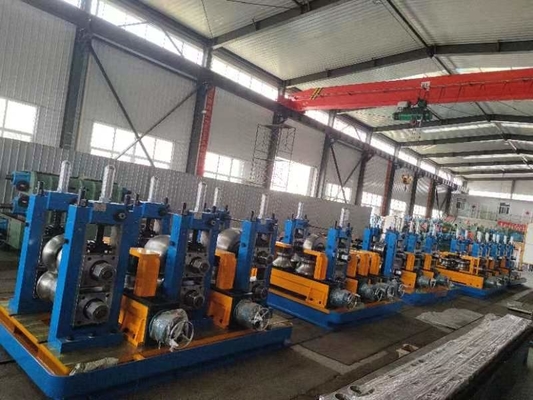

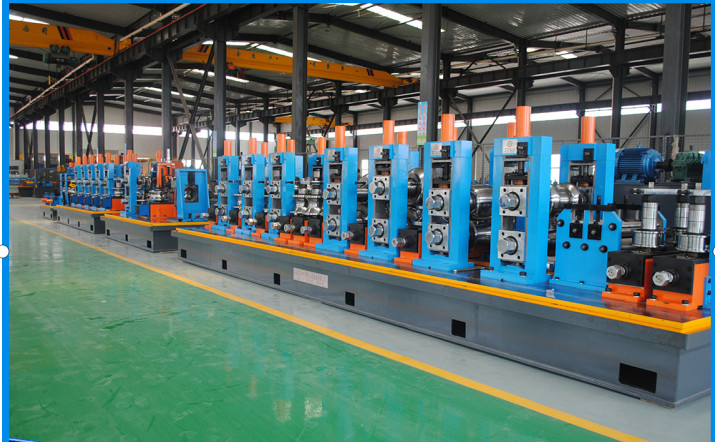

HG89 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of round pipe33.78～60.3 mm and 1.5-4.0 mm in thickness , and same size of square pipe. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

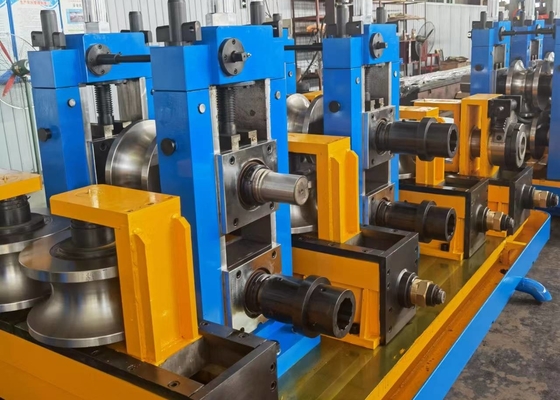

Forming & Sizing Mill adopts roller type forming principle and high-frequency induction welding. The strip is fed into the forming machine by the feeding device in the mill and the forming roller continuously rotate and press the strip into the required shape. Due to the skin and the kindred effect, the high-frequency current is concentrated on the weld joint that is heated rapidly and reaches the welding temperature. The tube seam is welded under the pressure of squeeze rollers. The finished welded tube with required size can obtained after the cooling, sizing and primary straightening.
|
Serial number |
Model |
Thickness(mm) |
Specification(mm) |
Speed(m/min) |
main engine(kw) |
Power(kw) |
area |
|
1 |
H20 |
0.3-1 |
8-20 |
30-120 |
55 |
60 |
7*50 |
|
2 |
H32 |
0.3-2.0 |
12-32 |
30-120 |
75 |
100 |
7*50 |
|
3 |
H50 |
0.8-2.5 |
16-50 |
30-110 |
110 |
150 |
7*60 |
|
4 |
H60 |
0.8-3 |
20-60 |
30-100 |
132 |
200 |
7*65 |
|
5 |
H76 |
1-3 |
12-76 |
30-100 |
320 |
250 |
8*80 |
|
6 |
H89 |
1-4 |
32-89 |
30-80 |
350 |
300 |
8*80 |
|
7 |
HG114 |
1.5-5 |
45-114 |
30-60 |
400 |
300 |
10*100 |
|
8 |
HG165 |
3-7 |
60-165 |
30-50 |
600 |
400 |
10*110 |
|
9 |
HG219 |
4-8 |
114-219 |
20-40 |
800 |
500 |
12*150 |
|
10 |
HG273 |
4-10 |
114-273 |
15-30 |
1000 |
600 |
18*160 |
|
11 |
HG325 |
4-12 |
165-325 |
10-30 |
1200 |
600 |
18*180 |
|
12 |
HG426 |
4-16 |
165-426 |
8-25 |
1400 |
800 |
18*180 |
|
13 |
HG508 |
4-20 |
219-508 |
8-20 |
2000 |
1000 |
21*180 |
Loading car→Uncoil →Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → hydrostatic testing → End facer → Straightener→Packing → Storage
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .
