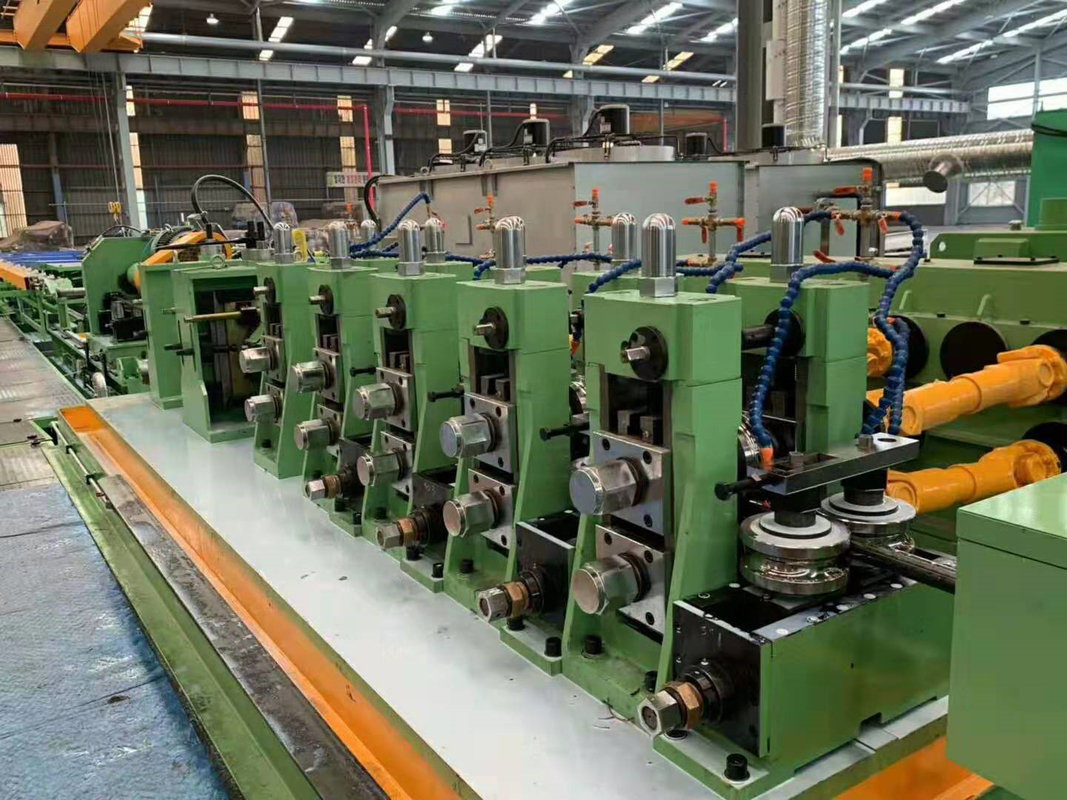

25-60mm Carbon Steel Welded Pipe Mill 50m/min 380V
25-60mm Carbon Steel Welded Pipe Mill 50m/min 380V
  • 25-60mm Carbon Steel Welded Pipe Mill 50m/min 380V
  • 25-60mm Carbon Steel Welded Pipe Mill 50m/min 380V
  • 25-60mm Carbon Steel Welded Pipe Mill 50m/min 380V

25-60mm Carbon Steel Welded Pipe Mill 50m/min 380V

Product Details:
Place of Origin: China
Brand Name: TENG TIAN
Certification: ISO9001/BV
Model Number: HG60*8
Detail Information
Place of Origin:
China
Brand Name:
TENG TIAN
Certification:
ISO9001/BV
Model Number:
HG60*8
Product Name:
Diameter 25 - 60mm Welded Pipe Mill Green Color Max Speed 50 M / Min
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Pipe Material:
Carbon Steel
Voltage:
380V
Power(w):
300KW
Speed:
50m / Min
Pipe Shape:
Round, Square & Rectangular
Round Pipe Diameter:
25-60mm
Warranty:
1 Year
Keywords:
Diameter 25 - 60mm Welded Pipe Mill
Highlight:

High Light

Highlight:

ISO9001 Welded Pipe Mill

,

50 M / Min Welded Pipe Equipment

,

50 M / Min Welded Pipe Mill

Trading Information
Minimum Order Quantity:
1set
Price:
$100000 to $1 million
Packaging Details:
Seaworthy packing
Delivery Time:
3 months
Supply Ability:
150 units a year
Product Description
Diameter 25 - 60mm Welded Pipe Mill Green Color Max Speed 50 M / Min
Product Specifications
Attribute Value
Product name Diameter 25 - 60mm Welded Pipe Mill Green Color Max Speed 50 M / Min
After-sales service Engineers available to service machinery overseas
Pipe material Carbon Steel
Voltage 380V
Power 300KW
Speed 50m/min
Pipe Shape Round, Square & Rectangular
Round Pipe Diameter 25-60mm
Warranty 1 year
Product Description

The HG60x8 high-frequency pipe mill line is designed for processing electric welding pipes with diameters ranging from Φ25-Φ60mm and thicknesses from 1.0-4.5mm. This automated system can produce various pipe shapes while significantly reducing labor requirements.

Welded Pipe Mill Models
Serial No. Model Thickness (mm) Specification (mm) Speed (m/min) Main Engine (kw) Power (kw) Area
1 H20 0.3-1 8-20 30-120 55 60 7*50
2 H32 0.3-2.0 12-32 30-120 75 100 7*50
3 H50 0.8-2.5 16-50 30-110 110 150 7*60
4 H60 0.8-3 20-60 30-100 132 200 7*65
5 H76 1-3 12-76 30-100 320 250 8*80
6 H89 1-4 32-89 30-80 350 300 8*80
7 HG114 1.5-5 45-114 30-60 400 300 10*100
8 HG165 3-7 60-165 30-50 600 400 10*110
9 HG219 4-8 114-219 20-40 800 500 12*150
10 HG273 4-10 114-273 15-30 1000 600 18*160
11 HG325 4-12 165-325 10-30 1200 600 18*180
12 HG426 4-16 165-426 8-25 1400 800 18*180
13 HG508 4-20 219-508 8-20 2000 1000 21*180
Production Process
  • Loading car
  • Uncoil
  • Cutting and Welding
  • Accumulator
  • Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
  • STD Cold-cutting saw
  • Transmitting
  • Hydrostatic testing
  • End facer
  • Straightener
  • Packing
  • Storage
25-60mm Carbon Steel Welded Pipe Mill 50m/min 380V 0
Our Services
  • On-site engineer support for installation and operator training
  • One year quality guarantee with lifetime repair support
  • Comprehensive pre-sales and after-sales services including workshop design and production output planning
  • Option for extended engineer support (several months to 1 year) to optimize output and reduce costs
  • Complete project design services for stainless steel and carbon steel pipe production
  • Full responsibility for loading and shipping arrangements
25-60mm Carbon Steel Welded Pipe Mill 50m/min 380V 1 25-60mm Carbon Steel Welded Pipe Mill 50m/min 380V 2
