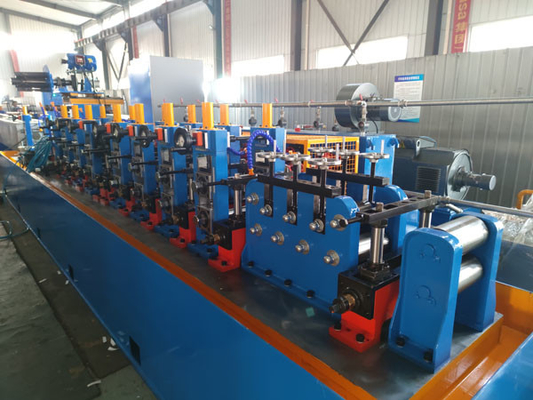

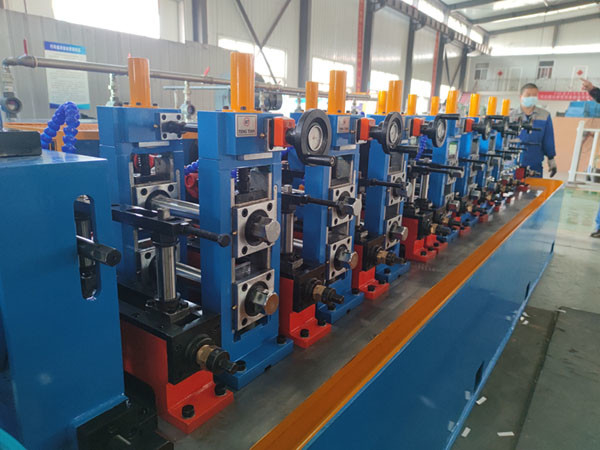

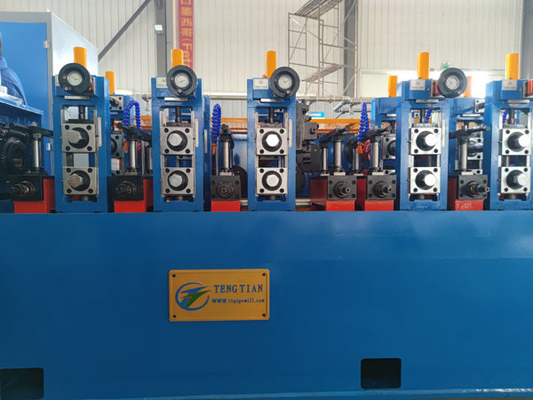

High Frequency Welded ERW Pipe Mill For 38mm Steel Round Pipe

High Frequency Welded ERW Pipe Mill For 38mm Steel Round Pipe
High Frequency Welded ERW Pipe Mill For 38mm Steel Round Pipe

Large Image :  High Frequency Welded ERW Pipe Mill For 38mm Steel Round Pipe

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: HG38
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 90 wording days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 set/month
Detailed Product Description
Machine Name: ERW Pipe Mill Product: Steel Round Pipe And Square Pipe
Feature: Precision Material: Carbon Steel And Galvanized Steel
Other Pipe: Rectangular Pipe Max Size: 38mm
Thickness: 3mm Length: 3-6m
Rollers: Not Include Model: 38
Key Words: ERW Pipe Mill
High Light:

Welded ERW Pipe Mill

,

38mm Steel ERW Pipe Mill

,

High Frequency ERW Pipe Mill

Hifrequency Welded ERW Pipe Mill For Round Pipe 38mm Steel Pipe

ERW Pipe Mill General Introduction



HG38High-Frequency Welded Pipe Production Line is designed to produce round pipe 15-38mm and according size square pipe , thickness 1-3mm. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.



According to the designing guideline of improving the operating character & environment and the safety & producing character , reducing the cost of the roller to guarantee high efficiency,HG50 production line adopts the double-radius hole style of design .


Round pipe:15-38mm



Square pipe :10x10  15x15  20x20  30x30mm

Rec Pipe:20x10  20x30mm

Thickness:1-3mm

ERW Pipe Mill Main Parameters and Specifications



(1)Material Specifications:

Standard

Internatioanl standard tube mill machine

Material

galvanized steel

Mechanical properties

σb≤520Mpa,σs≤365MPa

Strip Width

50-120mm

Strip Thickness:

1-3mm

Inner Diameter of Coils

Φ508mm

Outer Diameter of Coils

Φ1300~φ2000mm

Coil Weight

≤5T

(2)Pipe Specification

Pipe Diameter

Round pipe:15-38mm



Square pipe :10x10 15x15 20x20 30x30mm

Rec Pipe:20x10 20x30mm


Length

3-6m

Pipe-cutting Precision

0-6mm

Forming Speed

max 80m/min for 1 mm thickness

(3)The buyer should self-supply

Work shop

60x12m, H>5m(crane to ground)

Power

Approx.3500KW 380V/60Hz/3phases

Circulation Cooling Water(whole system)

Flow:30+30 CBM
Pool Volume:40m3

Compressed Air
(whole system)

Flow:5m3/min
Pressure: 5-7kg/ cm2

Cable

All cable outside of my machine, you buy after machine fix location.



ERW pipe mill Working Process for ERW pipe mill



strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package



ERW Pipe mill

High Frequency Welded ERW Pipe Mill For 38mm Steel Round Pipe 0



High Frequency Welded ERW Pipe Mill For 38mm Steel Round Pipe 1






Our Factory for ERW Pipe Mill

High Frequency Welded ERW Pipe Mill For 38mm Steel Round Pipe 2


Our Office
High Frequency Welded ERW Pipe Mill For 38mm Steel Round Pipe 3


Our Team
High Frequency Welded ERW Pipe Mill For 38mm Steel Round Pipe 4



Past Project for ERW pipe mill
High Frequency Welded ERW Pipe Mill For 38mm Steel Round Pipe 5

ERW Pipe Mill and Management Certificate

High Frequency Welded ERW Pipe Mill For 38mm Steel Round Pipe 6
