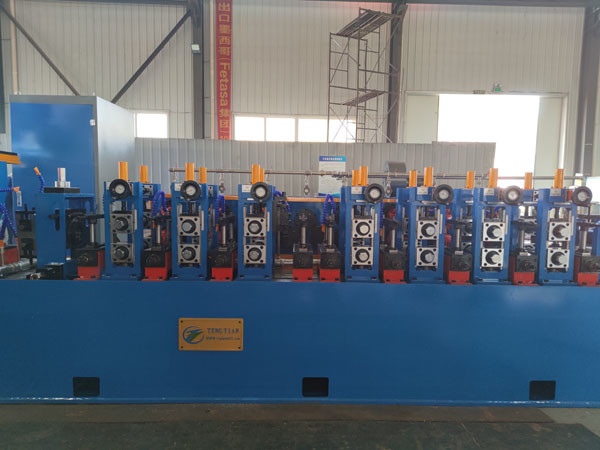

30mm Straight Seam Welded Pipe Mill for Carbon Steel

Name: 30mm Straight Seam Welded Pipe Mill for Carbon Steel
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG30
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG30

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG30

Product Name:

Straight Seam Welded Pipe Mill For 30mm Round Pipe

Feature:

Precision

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Rectangular Pipe

Max Size:

30mm

Thickness:

3mm

Length:

3-6m

Rollers:

Not Include

Model:

Key Words:

Welded Pipe Mill

Highlight:

High Light

Highlight:

Straight Seam Hf Welded Tube Mill

Straight Seam Welded Pipe Mill

30mm High Frequency Welded Pipe Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

Straight Seam Welded Pipe Mill For 30mm Round Pipe

Product Name	Straight Seam Welded Pipe Mill For 30mm Round Pipe
Feature	Precision
Material	Carbon steel and galvanized steel
Other Pipe	Rectangular pipe
Max Size	30mm
Thickness	3mm
Length	3-6m
Rollers	Not included
Model	30

General Introduction

The HG30 High-Frequency Welded Pipe Production Line is designed to produce round pipes (15-30mm) and corresponding size square pipes with thickness of 1-3mm. Featuring roll pass design, this production line manufactures welded steel pipes with excellent machining quality and high precision assembly.

Round pipe: 15-30mm

Square pipe: 10x10, 15x15, 20x20 mm

Rectangular pipe: 20x10 mm

Thickness: 1-3mm

Main Parameters and Specifications

Standard: International standard tube mill machine

Material: Galvanized steel

Mechanical properties: σb≤520Mpa, σs≤365MPa

Strip Width: 50-100mm

Strip Thickness: 1-3mm

Inner Diameter of Coils: Φ508mm

Outer Diameter of Coils: Φ1300～φ2000mm

Coil Weight: ≤3T

Pipe Specification

Pipe Diameter: Round pipe: 30mm; Square pipe: 10x10, 15x15, 20x20 mm; Rectangular pipe: 20x10 mm

Length: 3-6m

Pipe-cutting Precision: 0-6mm

Forming Speed: Max 80m/min for 1mm thickness

Buyer Self-Supply Requirements

Workshop: 60x12m, H＞5m (crane to ground)

Power: Approx. 3500KW 380V/60Hz/3phases

Circulation Cooling Water (whole system): Flow: 30+30 CBM; Pool Volume: 40m³

Compressed Air (whole system): Flow: 5m³/min; Pressure: 5-7kg/cm²

Cable: All cable outside of machine to be purchased after machine fixed location

Working Process

Strip steel to coil
Uncoiler
End straightener
Flattener
Shear welder
Storage material unit
Formed, welding, cooling, accurate pipe diameter size
Accurate pipe length size, cutting
Inspection
Package
