Straight Seam Welded Pipe Mill For 30mm Round Pipe

Straight Seam Welded Pipe Mill For 30mm Round Pipe
Straight Seam Welded Pipe Mill For 30mm Round Pipe

Large Image :  Straight Seam Welded Pipe Mill For 30mm Round Pipe

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: HG30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 90 wording days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 set/month
Detailed Product Description
Machine Name: Welded Pipe Mill Product: Steel Round Pipe And Square Pipe
Feature: Precision Material: Carbon Steel And Galvanized Steel
Other Pipe: Rectangular Pipe Max Size: 30mm
Thickness: 3mm Length: 3-6m
Rollers: Not Include Model: 30
Key Words: Welded Pipe Mill
High Light:

Straight Seam Hf Welded Tube Mill

,

Straight Seam Welded Pipe Mill

,

30mm High Frequency Welded Pipe Mill

Straight Seam Welded Pipe Mill For 30mm Round Pipe

welded Pipe Mill General Introduction



HG30 High-Frequency Welded Pipe Production Line is designed to produce round pipe 15-30mm and according size square pipe , thickness 1-3mm. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.



According to the designing guideline of improving the operating character & environment and the safety & producing character , reducing the cost of the roller to guarantee high efficiency,HG50 production line adopts the double-radius hole style of design .


Round pipe:15-30mm



Square pipe :10x10  15x15  20x20 mm

Rec Pipe:20x10mm

Thickness:1-3mm

ERW Pipe Mill Main Parameters and Specifications



(1)Material Specifications:

Standard

Internatioanl standard tube mill machine

Material

galvanized steel

Mechanical properties

σb≤520Mpa,σs≤365MPa

Strip Width

50-100mm

Strip Thickness:

1-3mm

Inner Diameter of Coils

Φ508mm

Outer Diameter of Coils

Φ1300~φ2000mm

Coil Weight

≤3T

(2)Pipe Specification

Pipe Diameter

round pipe :30mm



Square pipe :10x10 15x15 20x20 mm

Rec Pipe:20x10 mm


Length

3-6m

Pipe-cutting Precision

0-6mm

Forming Speed

max 80m/min for 1 mm thickness

(3)The buyer should self-supply

Work shop

60x12m, H>5m(crane to ground)

Power

Approx.3500KW 380V/60Hz/3phases

Circulation Cooling Water(whole system)

Flow:30+30 CBM
Pool Volume:40m3

Compressed Air
(whole system)

Flow:5m3/min
Pressure: 5-7kg/ cm2

Cable

All cable outside of my machine, you buy after machine fix location.



welded pipe mill Working Process



strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

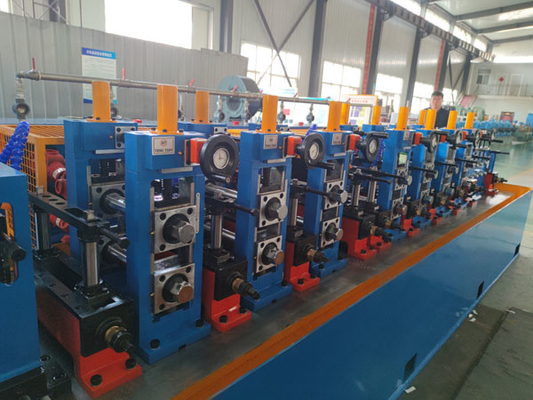

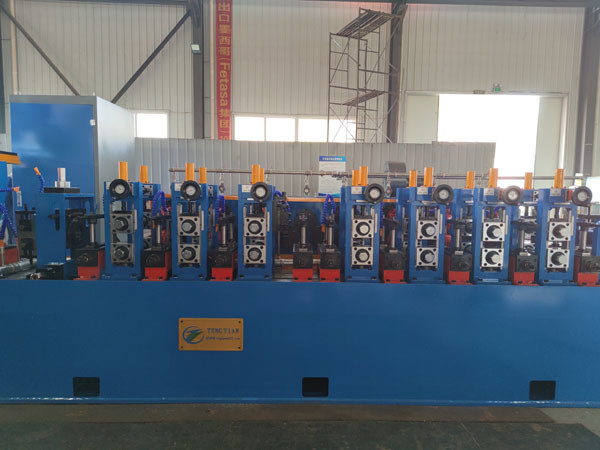

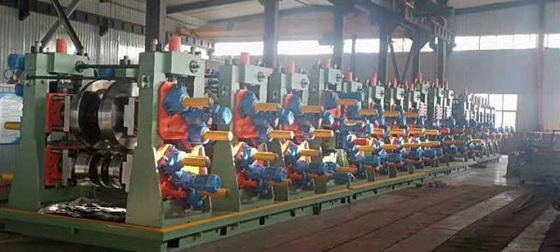

Welded Pipe mill

Straight Seam Welded Pipe Mill For 30mm Round Pipe 0Straight Seam Welded Pipe Mill For 30mm Round Pipe 1Straight Seam Welded Pipe Mill For 30mm Round Pipe 2





Our Factory for Welded Pipe Mill


Straight Seam Welded Pipe Mill For 30mm Round Pipe 3


Our Office
Straight Seam Welded Pipe Mill For 30mm Round Pipe 4


Our Team
Straight Seam Welded Pipe Mill For 30mm Round Pipe 5



Past Project for ERW pipe mill
Straight Seam Welded Pipe Mill For 30mm Round Pipe 6

ERW Pipe Mill and Management Certificate

Straight Seam Welded Pipe Mill For 30mm Round Pipe 7
