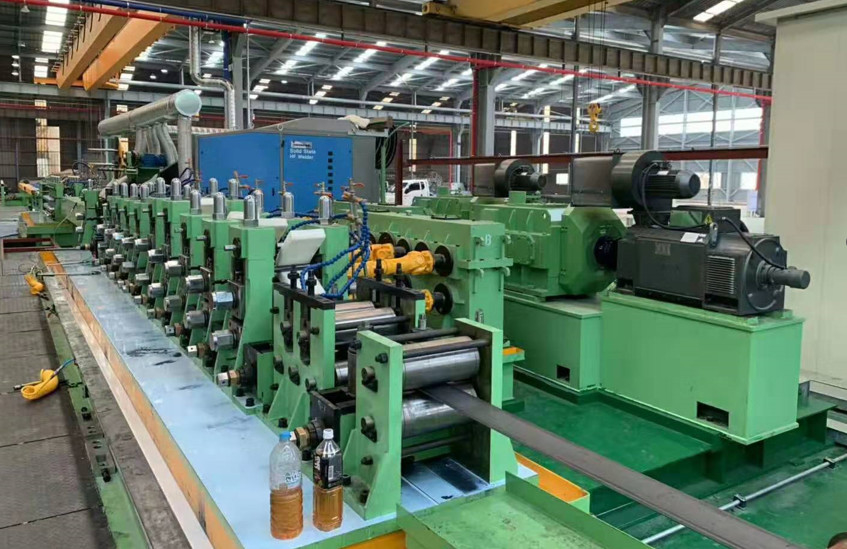

Green High Precision Welded Pipe Mill for Round Pipe 16-76mm

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001.BV,CE
Model Number:	76

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

ISO9001.BV,CE

Model Number:

Production Name:

Green Color High Precision Welded Pipe Making Machine For Round Pipe Speed 100m/min Welded Pipe Mill

Application:

Natural Gas,Drain Pipe,3 NB Tube Production

Voltage:

380V/220V

Pipe Diameter:

16-76mm

Thickness:

1.2-4.0mm

Speed:

Max100m/min

Power(w):

700KW

Key Words:

Speed 100m/min Welded Pipe Mill

Highlight:

High Light

Highlight:

100m/Min Welded Pipe Making Machine

100m/Min Welded Pipe Mill

Green Welded Pipe Making Machine

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

50 Sets/Year

Product Description

Green Color High Precision Welded Pipe Making Machine

High-speed welded pipe mill for round pipe production with maximum speed of 100m/min

Product Specifications

Attribute	Value
Production Name	Green Color High Precision Welded Pipe Making Machine for Round Pipe Speed 100m/min Welded pipe mill
Application	Natural gas, Drain Pipe, 3 NB Tube Production
Voltage	380V/220V
Pipe diameter	16-76mm
Thickness	1.2-4.0mm
Speed	Max 100m/min
Power	700KW

Production Process

Uncoiler → Shear & welding machine → Accumulator (Cage) → Forming machine → HF welding → Sizing machine → Flying saw (Cold saw) → Run out table → hydro testing → end facing for API standard. Can be equipped with online testing equipment including Hydro testing equipment, End facing equipment, UT testing, ECT testing.

Machine Overview

HG63.5x4.0 (2.5") high frequency welded pipe production line manufactures welded steel pipes of Φ19.7mm-Φ63.5mm, square pipes 16x16-50x50mm, with 1.2mm-4.0mm wall thickness. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line design offers both economical and practical solutions.

Material Specifications

Parameter	Specification
Standard	Conforming to YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa, σs≤275MPa
Strip width	50-240mm
Strip thickness	1.2-4.0mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤3.0T

Welded Pipe Specifications

Parameter	Specification
Round Pipe Diameter	19.7-63.5mm
Pipe thickness	1.2-4.0mm
Finish pipe length	4-6m
Cut length accuracy	±2mm
Forming speed	100m/min

Factory Images

Our Services

On-site engineer for installation and operator training
One year quality guarantee with lifetime repair support
Comprehensive pre-sale and after-sale services including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize output and reduce waste
Complete project design services for stainless steel and carbon steel pipe making
Responsible for loading and shipping arrangements
