High Frequency Welded Pipe Mill 150-440mm Strip Width CE ISO Certified

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	127

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

127

Product Name:

High Frequency Welded Pipe Mill Strip Width 150 To 440 Mm High Frequency Welded Pipe Mill CE ISO Certification

Model:

127

Feature:

High Precision

Other Pipe:

Round ,square And Rectangular Pipe

Max Size:

50.8 ～ 139.8 Mm

Thickness:

1 . 0 - 4 . 0 Mm

Length:

4 M - 6 M

Rollers:

Include

Warranty:

One Year

Key Words:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

150Mm Welded Pipe Mill

440Mm Welded Pipe Mill

CE Certification Welded Pipe Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 wording days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

High Frequency Welded Pipe Mill Strip Width 150 To 440 Mm

Product Specifications

Attribute	Value
Model	127
Feature	High Precision
Pipe Types	Round, square and rectangular pipe
Max Size	50.8 - 139.8 mm
Thickness	1.0 - 4.0 mm
Length	4 m - 6 m
Rollers	Included
Warranty	One year

Product Description

High-frequency straight seam welded steel pipes can be divided into straight seam high-frequency resistance welded steel pipes and straight seam high-frequency induction welded steel pipes according to different high-frequency welding processes. The forming process generally adopts roll bending cold forming method.

High-frequency straight seam welded steel pipes are generally produced in smaller diameters, typically less than 660mm (26 inches) in outer diameter. Key characteristics include fast welding speeds - for pipes with outer diameters less than 1 inch, welding speeds can reach up to 200 m/min.

Material Specifications

Standard	Conforming to YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical Properties	σb≤380Mpa, σs≤275MPa
Strip Width	159-440mm
Strip Thickness	1.0-4.0mm
Coil Inner Diameter	Φ508mm
Coil Outer Diameter	Φ2000mm
Coil Weight	≤4T

Welded Pipe Specifications

Round Pipe Diameter	Φ50.8-Φ139.8mm
Square Tube Size	40x40-110x110mm
Pipe Thickness	1.0-4.0mm
Finished Pipe Length	4-6m
Cut Length Accuracy	±2mm
Forming Speed	20-60m/min

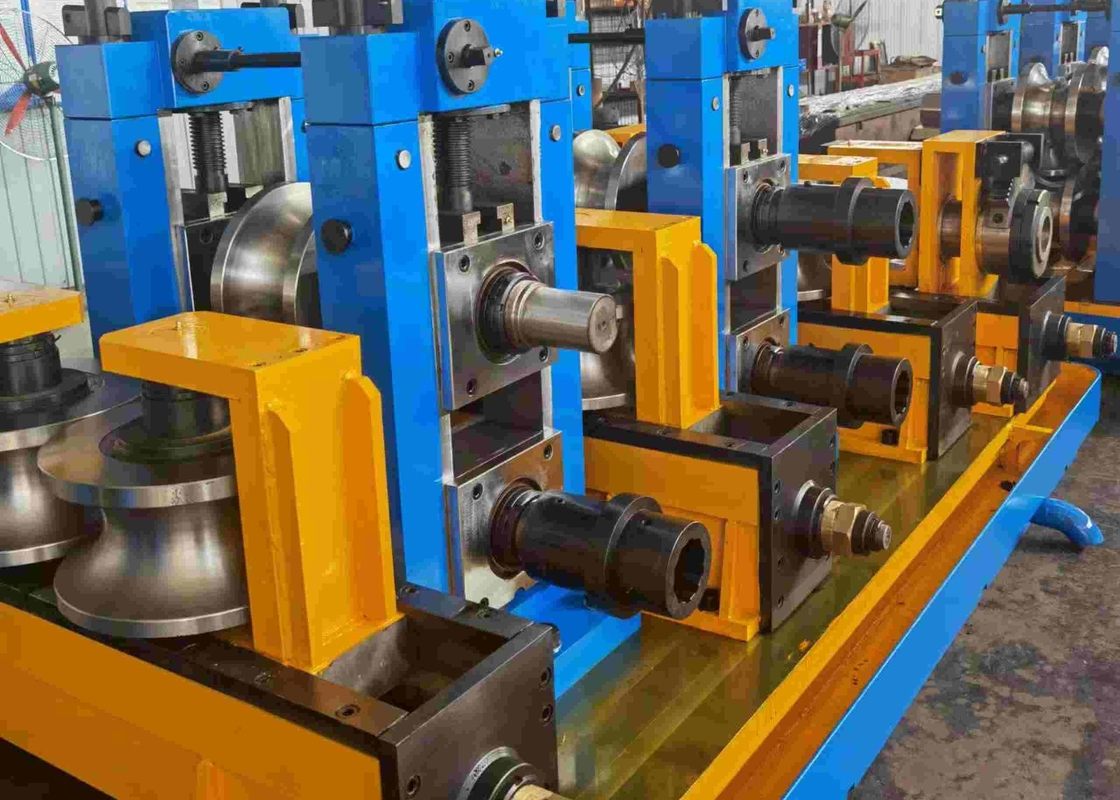

Product Images
