| Production Name: | Low Carbon Steel Low Alloy Constructional Steel 63mm Dia High Frequency Welded Pipe Mill For Round | Pipe Diameter: | 21 - 63mm |
|---|---|---|---|
| Product Speed: | Max 50m/min | Max.Thickness For Square Pipe: | 0.8-3.0mm |
| Certification: | CE ISO | Forming Speed: | Max.80m/min |
| Key Word: | High Frequency Welded Pipe Mill For Round | ||
| High Light: | 63mm Dia Welded Pipe Mill,50m/min Welded Pipe Mill,63mm High Frequency Welded Pipe Mill |
||
| Model | Diameter(mm) | Thickness(mm) | Speed(m/min) | Main power(kw) | HF welder(KW) | Area(m2) |
| HG32 | 10-32 | 0.4-1.5 | 30-100 | 250 | 100 | 12x100 |
| HG50 | 12-50 | 0.6-2.5 | 30-90 | 300 | 150 | 12x100 |
| HG76 | 12-76 | 1-3 | 30-90 | 320 | 200 | 12x100 |
| HG89 | 32-89 | 1-4 | 30-80 | 350 | 300 | 12x100 |
| HG114 | 45-114 | 1.5-5.0 | 30-60 | 400 | 300 | 12x100 |
| HG165 | 60-165 | 3-7 | 30-50 | 600 | 400 | 12x100 |
| HG219 | 114-219 | 4-8 | 20-40 | 800 | 500 | 15x150 |
| HG273 | 114-273 | 4-10 | 15-30 | 1000 | 600 | 18x160 |
| HG325 | 165-325 | 4-10 | 10-30 | 1200 | 600 | 12x100 |
| HG426 | 165-426 | 4-12.7 | 8-25 | 1400 | 800 | 12x100 |
| HG508 | 219-508 | 4-16 | 8-20 | 2000 | 1000 | 12x100 |

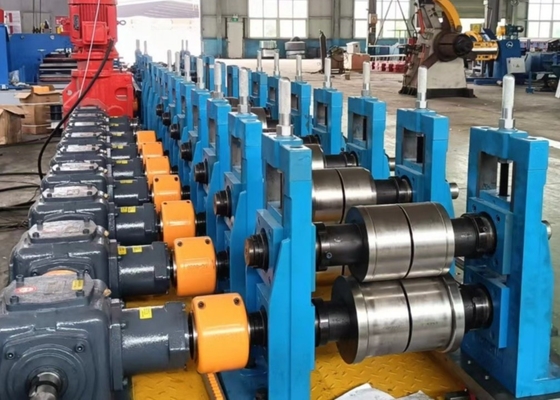

Low Carbon Steel Low Alloy Constructional Steel 63mm Dia High Frequency Welded Pipe Mill General Introduction

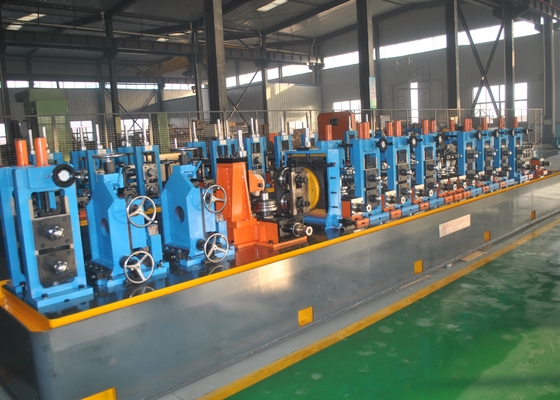

1.Machine General Introduction
it is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe.

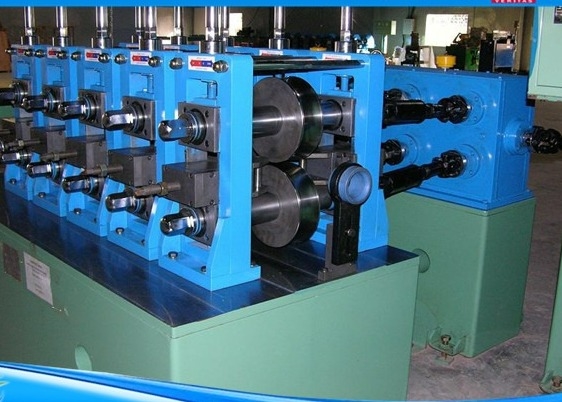

Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
2.Main Parameters and Specifications:
| (1)Material Specifications: | |
| Standard | Conforming to the YB189-64 standard |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | δs≤345Mpa δb≤610Mpa |
| Strip Width | 50-200mm |
| Strip Thickness: | 1.5-4.0mm |
| Inner Diameter of Coils | φ480～φ570mm |
| Outer Diameter of Coils | φ1000～φ1800mm |
| Coil Weight | ≤4.0T |
| (2)Pipe Specification | |
| Pipe Diameter |
Square pipe:15x15-50x50mm round pipe 17.2-60.3mm Thickness:1.5-4.0mm |
| Length | 6-12m |
| Pipe-cutting Precision | 0-6mm |
| Forming Speed | 10-50m/min |
| (3)The buyer should self-supply | |
| Work shop | 60x6m, H＞5m(crane to ground) |
| Power | Approx.1212KW 380V/50Hz/3phases |
| Circulation Cooling Water(whole system) |
Flow:20T/h～30 T/h Pool Volume:30m3 |
|
Compressed Air (whole system) |
Flow:5m3/min Pressure: 5-7kg/ cm2 |
| Others | Seller will supply list |
