High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness

Name: High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG400
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG400

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG400

Machine Name:

High Frequency Welded Pipe Mill 10mm Thickness 400x400mm Square Pipe

Product:

Steel Round Pipe And Square Pipe

Feature:

Precision

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Rectangular Pipe

Max Size:

400x400mm

Thickness:

10mm

Length:

3-6m

Rollers:

Not Include

Model:

400x400

Key Words:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

400x400mm Square Pipe Mill

10mm Thickness Square Pipe Mill

400x400mm Welded Pipe Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

High Frequency Welded Pipe Mill 10mm Thickness 400x400mm Square Pipe

Product Specifications

Attribute	Value
Machine Name	High Frequency Welded Pipe Mill 10mm Thickness 400x400mm Square Pipe
Product	Steel round pipe and square pipe
Feature	Precision
Material	Carbon steel and galvanized steel
Other pipe	Rectangular pipe
Max size	400x400mm
Thickness	10mm
Length	3-6m
Rollers	Not included
Model	400x400

Product Description

The HG400 High-Frequency Welded Pipe Production Line is engineered to manufacture square pipes ranging from 100x100mm to 400x400mm with thicknesses of 5-10mm. Utilizing advanced roll pass design, this production line delivers welded steel pipes with superior machining quality and high-precision assembly.

Technical Specifications

Material Specifications:

Standard: International standard tube mill machine
Material: Galvanized steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Strip Width: 400-1600mm
Strip Thickness: 5-10mm
Inner Diameter of Coils: Φ508mm
Outer Diameter of Coils: Φ1300～φ2000mm
Coil Weight: ≤20T

Pipe Specifications:

Pipe Diameter: Square pipe 100x100-300x300mm
Length: 3-6m
Pipe-cutting Precision: 0-6mm
Forming Speed: Max 50m/min for 10mm thickness

Buyer-Supplied Requirements:

Workshop: 60x12m, H＞5m (crane to ground)
Power: Approx. 3500KW 380V/60Hz/3phases
Circulation Cooling Water (whole system): Flow:30+30 CBM, Pool Volume:40m³
Compressed Air (whole system): Flow:5m³/min, Pressure: 5-7kg/cm²
Cable: All cable outside of machine to be purchased after machine installation

Production Process

Strip steel to coil → Uncoiler → End straightener → Flattener → Shear welder → Storage material unit → Forming, welding, cooling → Accurate pipe diameter sizing → Accurate pipe length sizing, cutting → Inspection → Packaging

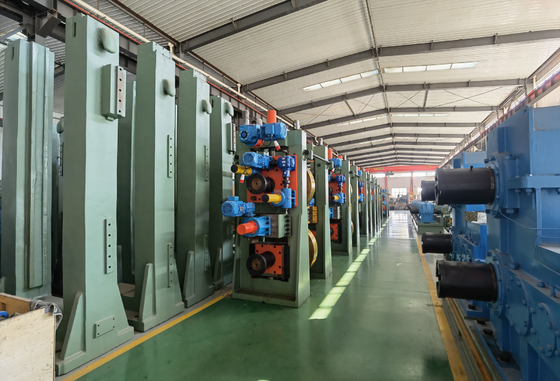

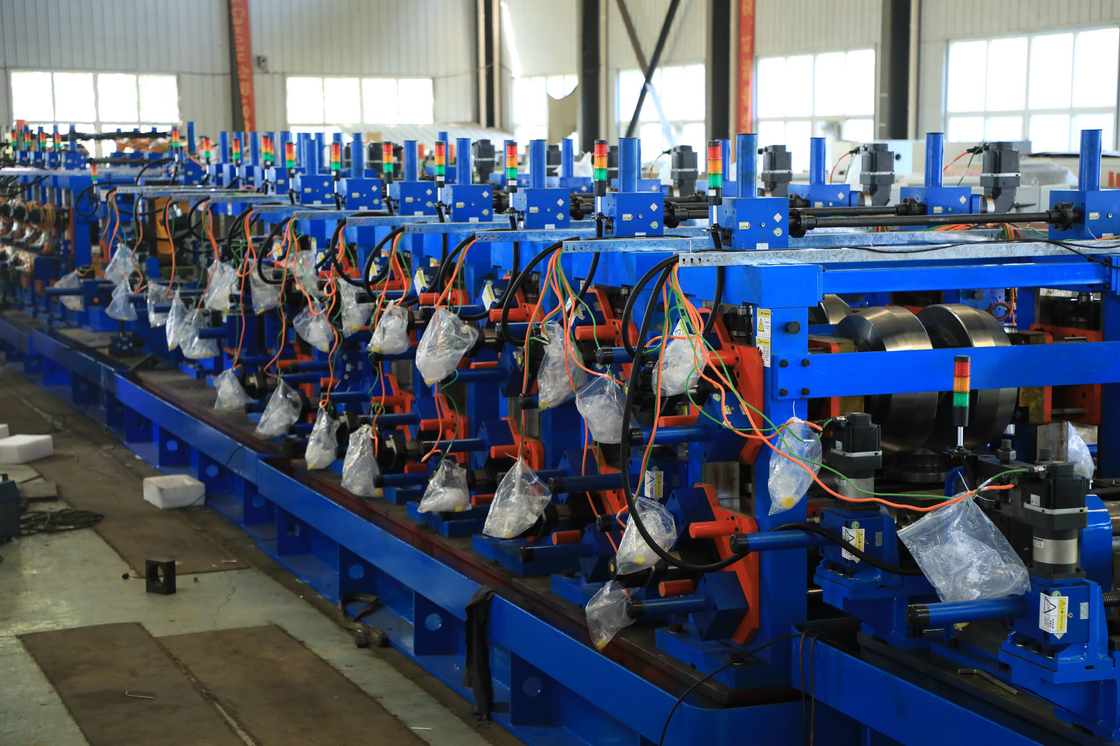

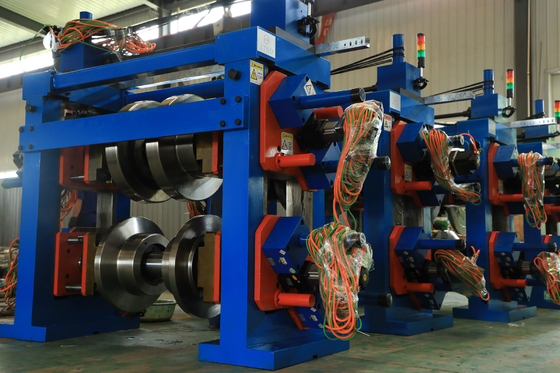

Product Images
