High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness
High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness
  • High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness
  • High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness
  • High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness

High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: HG400
Detail Information
Place of Origin:
China
Brand Name:
TENGTIAN
Certification:
CE ISO9000 BV
Model Number:
HG400
Machine Name:
High Frequency Welded Pipe Mill 10mm Thickness 400x400mm Square Pipe
Product:
Steel Round Pipe And Square Pipe
Feature:
Precision
Material:
Carbon Steel And Galvanized Steel
Other Pipe:
Rectangular Pipe
Max Size:
400x400mm
Thickness:
10mm
Length:
3-6m
Rollers:
Not Include
Model:
400x400
Key Words:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

400x400mm Square Pipe Mill

,

10mm Thickness Square Pipe Mill

,

400x400mm Welded Pipe Mill

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
90 wording days
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
5 set/month
Product Description
High Frequency Welded Pipe Mill 10mm Thickness 400x400mm Square Pipe
Product Specifications
Attribute Value
Machine Name High Frequency Welded Pipe Mill 10mm Thickness 400x400mm Square Pipe
Product Steel round pipe and square pipe
Feature Precision
Material Carbon steel and galvanized steel
Other pipe Rectangular pipe
Max size 400x400mm
Thickness 10mm
Length 3-6m
Rollers Not included
Model 400x400
Product Description
The HG400 High-Frequency Welded Pipe Production Line is engineered to manufacture square pipes ranging from 100x100mm to 400x400mm with thicknesses of 5-10mm. Utilizing advanced roll pass design, this production line delivers welded steel pipes with superior machining quality and high-precision assembly.
Technical Specifications
Material Specifications:
  • Standard: International standard tube mill machine
  • Material: Galvanized steel
  • Mechanical properties: σb≤520Mpa, σs≤365MPa
  • Strip Width: 400-1600mm
  • Strip Thickness: 5-10mm
  • Inner Diameter of Coils: Φ508mm
  • Outer Diameter of Coils: Φ1300～φ2000mm
  • Coil Weight: ≤20T
Pipe Specifications:
  • Pipe Diameter: Square pipe 100x100-300x300mm
  • Length: 3-6m
  • Pipe-cutting Precision: 0-6mm
  • Forming Speed: Max 50m/min for 10mm thickness
Buyer-Supplied Requirements:
  • Workshop: 60x12m, H＞5m (crane to ground)
  • Power: Approx. 3500KW 380V/60Hz/3phases
  • Circulation Cooling Water (whole system): Flow:30+30 CBM, Pool Volume:40m³
  • Compressed Air (whole system): Flow:5m³/min, Pressure: 5-7kg/cm²
  • Cable: All cable outside of machine to be purchased after machine installation
Production Process
Strip steel to coil → Uncoiler → End straightener → Flattener → Shear welder → Storage material unit → Forming, welding, cooling → Accurate pipe diameter sizing → Accurate pipe length sizing, cutting → Inspection → Packaging
Product Images

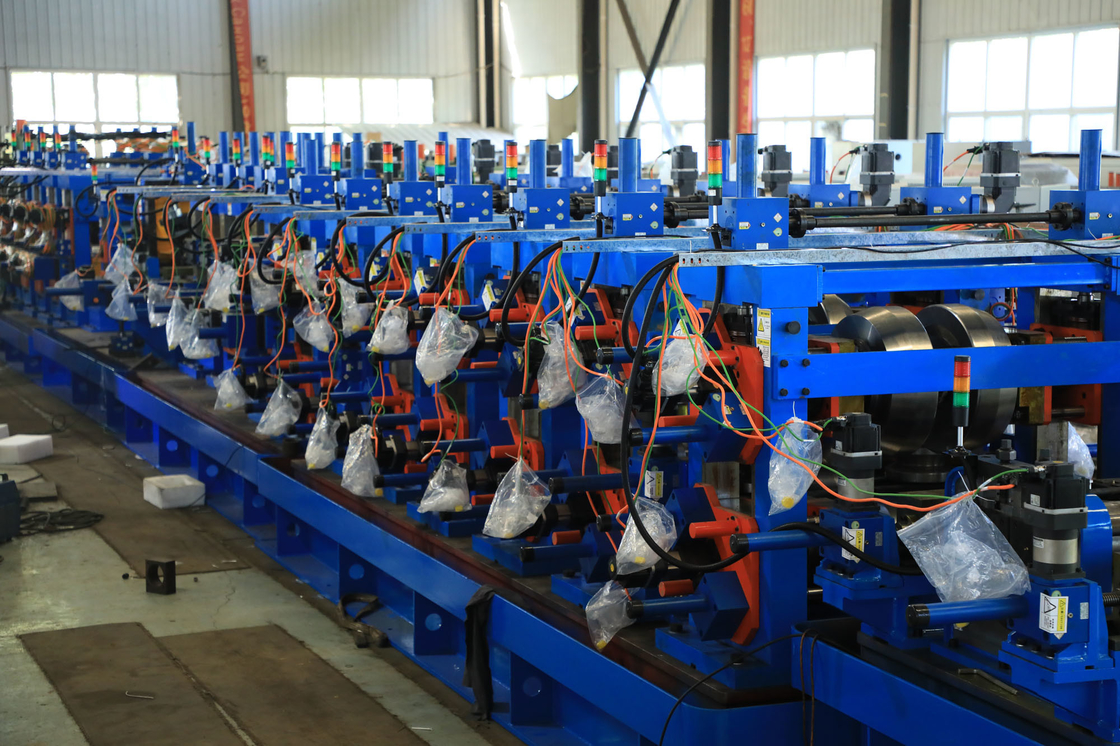

High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness 0
High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness 1
High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness 2
Our Facilities
High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness 3
High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness 4
High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness 5
Past Projects
High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness 6
Certifications
High Frequency Welded Pipe Mill for 400x400mm Square Pipe 10mm Thickness 7
