600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel
600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel
  • 600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel
  • 600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel
  • 600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel

600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: HG600
Detail Information
Place of Origin:
China
Brand Name:
TENGTIAN
Certification:
CE ISO9000 BV
Model Number:
HG600
Machine Name:
High Frequency Welded Pipe Mill Direct Forming 600x600mm Square Welded Pipe Mill By Steel Strip
Product:
Square Pipe
Feature:
Precision
Material:
Carbon Steel And Galvanized Steel
Other Pipe:
Rectangular Pipe
Max Size:
600x600mm
Thickness:
10mm
Length:
3-6m
Rollers:
Not Include
Model:
600x600
Key Words:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

600x600mm Square Pipe Mill

,

Direct Forming Welded Pipe Mill

,

600x600mm Welded Pipe Mill

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
90 wording days
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
5 set/month
Product Description
High Frequency Direct Forming 600x600mm Square Welded Pipe Mill By Steel Strip
Product Specifications
Attribute Value
Machine Name High Frequency Welded Pipe Mill Direct Forming 600x600mm Square Welded Pipe Mill By Steel Strip
Product Square pipe
Feature Precision
Material Carbon steel and galvanized steel
Other pipe Rectangular pipe
Max size 600x600mm
Thickness 10mm
Length 3-6m
Rollers Not included
Model 600x600
Product Overview

The HG600 High-Frequency Welded Pipe Production Line is engineered to manufacture square pipes ranging from 300x300mm to 600x600mm with thicknesses of 5-10mm. Utilizing advanced roll pass design, this production line delivers welded steel pipes with exceptional machining quality and high-precision assembly.

Design Features

The HG600 production line incorporates a double-radius hole design, optimizing operational characteristics, work environment, safety, and production efficiency while minimizing roller costs.

Technical Specifications
Material Specifications
  • Standard: International standard tube mill machine
  • Material: Galvanized steel
  • Mechanical properties: σb≤520Mpa, σs≤365MPa
  • Strip Width: 1200-1600mm
  • Strip Thickness: 5-10mm
  • Inner Diameter of Coils: Φ508mm
  • Outer Diameter of Coils: Φ1300～φ2000mm
  • Coil Weight: ≤25T
Pipe Specifications
  • Pipe Diameter: Square pipe 300x300-600x600mm
  • Length: 3-6m
  • Pipe-cutting Precision: 0-6mm
  • Forming Speed: Maximum 50m/min for 10mm thickness
Buyer-Supplied Requirements
  • Workshop: 60x12m, H＞5m (crane to ground)
  • Power: Approximately 3500KW 380V/60Hz/3phases
  • Circulation Cooling Water (whole system): Flow:30+30 CBM, Pool Volume:40m³
  • Compressed Air (whole system): Flow:5m³/min, Pressure: 5-7kg/cm²
  • Cable: All external cables to be supplied by buyer after machine installation
Production Process
1. Strip steel to coil
2. Uncoiler
3. End straightener
4. Flattener
5. Shear welder
6. Storage material unit
7. Forming, welding, cooling, accurate pipe diameter sizing
8. Accurate pipe length sizing, cutting
9. Inspection
10. Packaging

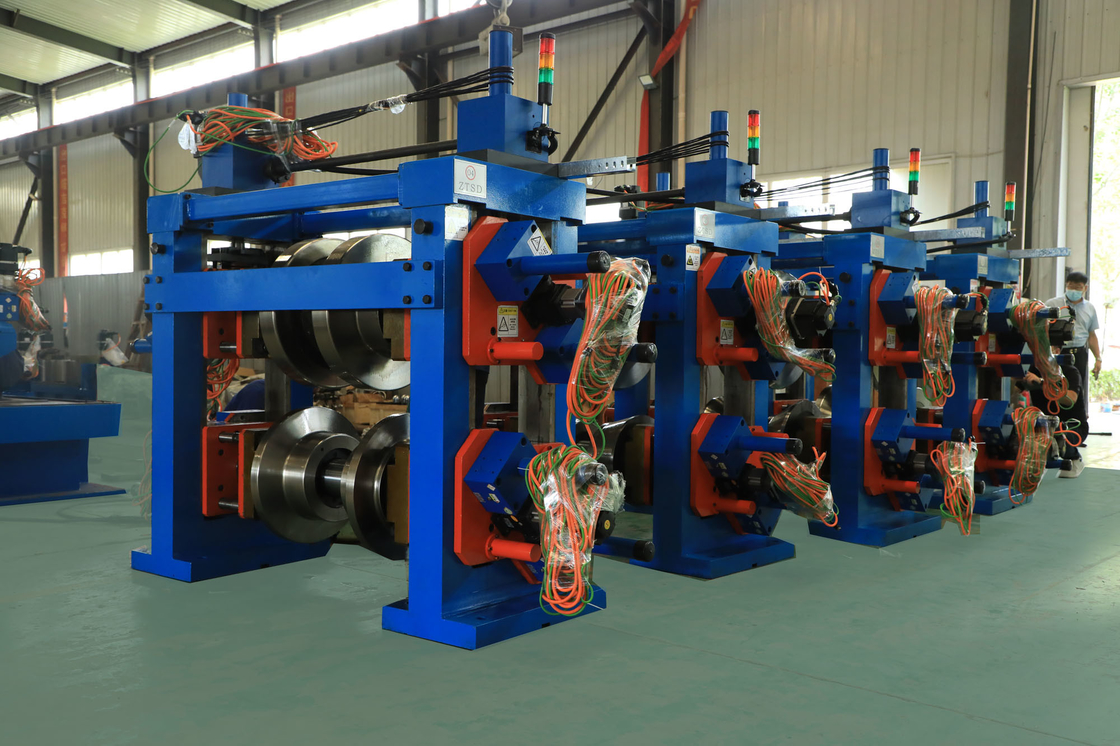

Product Gallery
600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel 0 600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel 1 600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel 2
Our Manufacturing Facility
600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel 3 600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel 4 600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel 5
Past Projects
600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel 6
Certifications
600x600mm High Frequency Welded Square Pipe Mill for Carbon Steel 7
