89mm Precision Tube Mill for Galvanized Steel Round Pipes

Name: 89mm Precision Tube Mill for Galvanized Steel Round Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG89
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG89

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG89

Machine Name:

Precision Tube Mill By Galvanized Steel Strip 89mm Round

Product:

Round Pipe And Square Pipe

Feature:

Precision

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Rectangular Pipe

Max Size:

89mm

Thickness:

1-3mm

Length:

3-6m

Rollers:

Not Include

Model:

89mm

Keyword:

Precision Tube Mill

Highlight:

High Light

Highlight:

89mm Precision Tube Mill

Round Precision Tube Mill

Galvanized Steel Strip Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

Precision Tube Mill By Galvanized Steel Strip 89mm Round

Product Specifications

Attribute	Value
Machine Name	Precision Tube Mill By Galvanized Steel Strip 89mm Round
Product	Round pipe and square pipe
Feature	Precision manufacturing
Material	Carbon steel and galvanized steel
Other pipe types	Rectangular pipe
Max size	89mm
Thickness	1-3mm
Length	3-6m
Rollers	Not included
Model	89mm

Product Overview

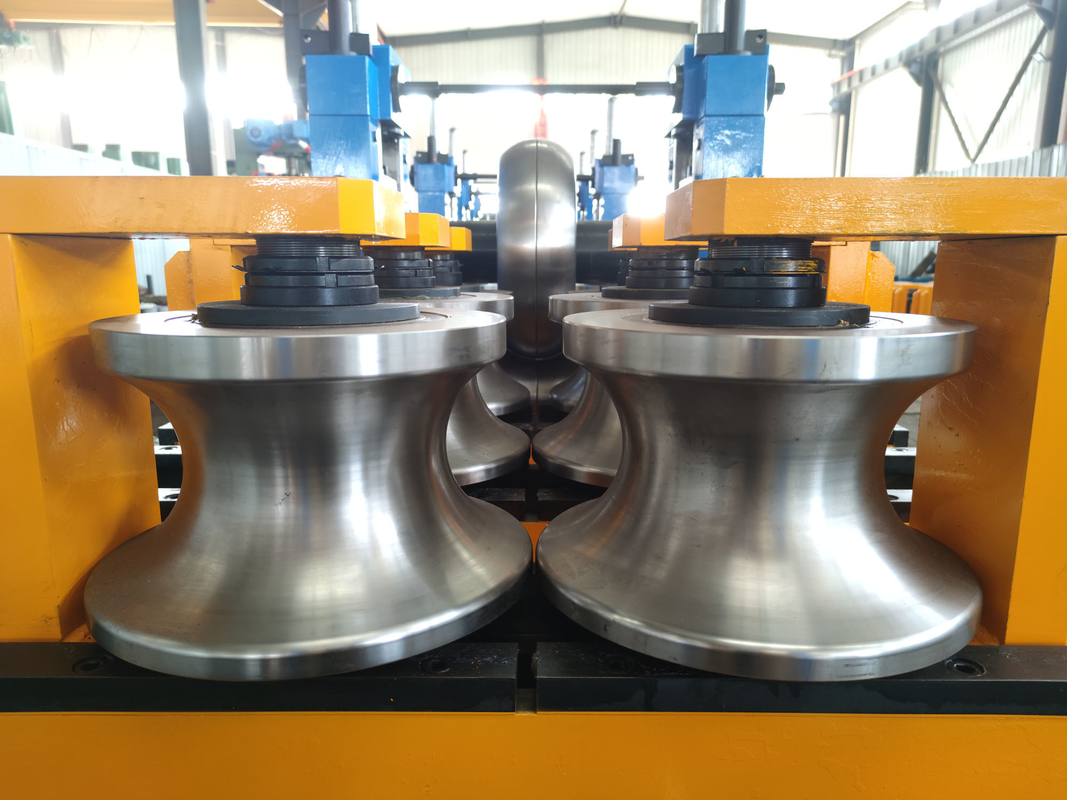

The HG89 High-Frequency Welded Pipe Production Line is engineered to manufacture precision square pipes ranging from 30-89mm with thickness of 1-3mm. Featuring advanced roll pass design, this production line delivers welded steel pipes with exceptional machining quality and high assembly precision.

Designed with operational efficiency and safety in mind, the HG89 production line incorporates a double-radius hole style design to enhance performance while reducing roller costs.

Technical Specifications

Material Specifications

Standard	International standard tube mill machine
Material	Galvanized steel
Mechanical properties	σb≤520Mpa, σs≤365MPa
Strip Width	60-280mm
Strip Thickness	1-3mm
Inner Diameter of Coils	Φ508mm
Outer Diameter of Coils	Φ1300～φ2000mm
Coil Weight	≤5T
