Precision Tube Mill Line 50 M/Min 219mm Diameter 3-9mm Thickness
Precision Tube Mill Line 50 M/Min 219mm Diameter 3-9mm Thickness
  • Precision Tube Mill Line 50 M/Min 219mm Diameter 3-9mm Thickness
  • Precision Tube Mill Line 50 M/Min 219mm Diameter 3-9mm Thickness
  • Precision Tube Mill Line 50 M/Min 219mm Diameter 3-9mm Thickness

Precision Tube Mill Line 50 M/Min 219mm Diameter 3-9mm Thickness

Product Details:
Place of Origin: China
Brand Name: TENG TIAN
Certification: ISO9001/BV
Model Number: HG219
Detail Information
Place of Origin:
China
Brand Name:
TENG TIAN
Certification:
ISO9001/BV
Model Number:
HG219
Product Name:
Precision Tube Mill Line Max Speed 50 M / Min Dia 219mm Thickness 3 - 9mm
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Pipe Material:
Carbon Steel
Voltage:
380V
Power(w):
400KW
Speed:
MAX 50 M / Min
Pipe Shape:
Round, Square & Rectangular
Round Pipe Diameter:
114mm-219mm
Warranty:
1 Year
Keywords:
Diameter 219mm Precision Tube Mill Line
Keyword:
Precision Tube Mill
Highlight:

High Light

Highlight:

Diameter 219mm Precision Tube Mill

,

Precision Tube Mill Line

,

50 M / Min Precision Tube Mill

Trading Information
Minimum Order Quantity:
1set
Price:
$100000 to $1 million
Packaging Details:
Seaworthy packing
Delivery Time:
3 months
Supply Ability:
150 units a year
Product Description
Precision Tube Mill Line Max Speed 50 M / Min Dia 219mm Thickness 3 - 9mm
Product Specifications
Attribute Value
After-sales service Engineers available to service machinery overseas
Pipe material Carbon Steel
Voltage 380V
Power 400KW
Speed MAX 50 m / min
Pipe Shape Round, Square & Rectangular
Round Pipe Diameter 114mm-219mm
Warranty 1 year
Product Overview

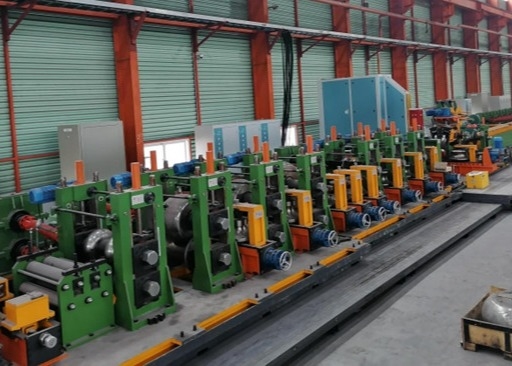

The HG219 High-Frequency Welded Pipe Mill Line is engineered to produce precision round pipes (Diameter φ114-219mm, thickness 3-9mm). Featuring advanced roll pass design, this production line delivers welded steel pipes with exceptional machining quality and high assembly precision.

Precision Tube Mill Line Models
Serial No. Model Thickness(mm) Specification(mm) Speed(m/min) Main Engine(kw) Power(kw) Area
1 H20 0.3-1 8-20 30-120 55 60 7*50
2 H32 0.3-2.0 12-32 30-120 75 100 7*50
3 H50 0.8-2.5 16-50 30-110 110 150 7*60
4 H60 0.8-3 20-60 30-100 132 200 7*65
5 H76 1-3 12-76 30-100 320 250 8*80
6 H89 1-4 32-89 30-80 350 300 8*80
7 HG114 1.5-5 45-114 30-60 400 300 10*100
8 HG165 3-7 60-165 30-50 600 400 10*110
9 HG219 4-8 114-219 20-40 800 500 12*150
10 HG273 4-10 114-273 15-30 1000 600 18*160
11 HG325 4-12 165-325 10-30 1200 600 18*180
12 HG426 4-16 165-426 8-25 1400 800 18*180
13 HG508 4-20 219-508 8-20 2000 1000 21*180
Production Process
  • Loading car
  • Uncoil
  • Cutting and Welding
  • Accumulator
  • Forming
  • HF welding
  • Anneal welder
  • Deburring
  • Cooling
  • Sizing
  • Straightening
  • STD Cold-cutting saw
  • Transmitting
  • Hydrostatic testing
  • End facer
  • Straightener
  • Packing
  • Storage
Precision Tube Mill Line 50 M/Min 219mm Diameter 3-9mm Thickness 0
Our Comprehensive Services
On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair support
Pre-sales services including workshop design and production output planning
Extended engineer support available for 1-12 months to optimize production
Complete project design for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements
Precision Tube Mill Line 50 M/Min 219mm Diameter 3-9mm Thickness 1 Precision Tube Mill Line 50 M/Min 219mm Diameter 3-9mm Thickness 2 Precision Tube Mill Line 50 M/Min 219mm Diameter 3-9mm Thickness 3
