Home > products >
High Frequency Welded Pipe Mill
>

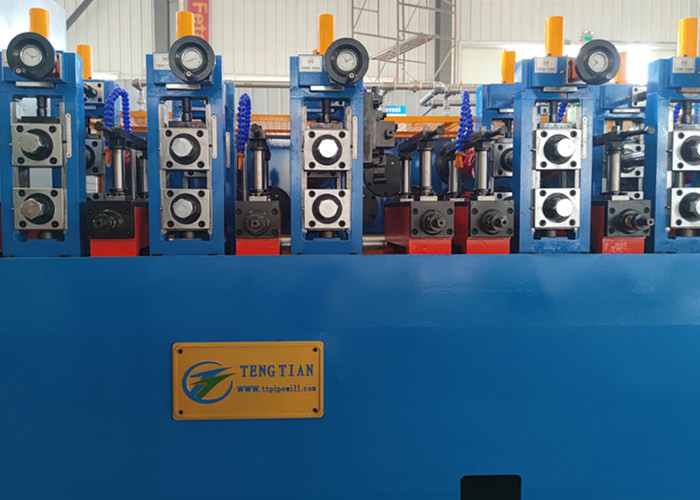

Galvanized Carbon Steel High Frequency Welded Pipe Mill 15-50mm
Galvanized Carbon Steel High Frequency Welded Pipe Mill 15-50mm
  • Galvanized Carbon Steel High Frequency Welded Pipe Mill 15-50mm
  • Galvanized Carbon Steel High Frequency Welded Pipe Mill 15-50mm

Galvanized Carbon Steel High Frequency Welded Pipe Mill 15-50mm

Product Details:
Place of Origin: Hebei,CHINA
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: HG50
Detail Information
Place of Origin:
Hebei,CHINA
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
HG50
Production Name:
High Frequency Welded Pipe Mill Galvanized Carbon Steel Round Welded Pipe Mill High Frequency
Material:
HRC,CRC,Galvanised Steel
Tube Size:
15-50 Mm
Tube Thickness:
0.8-2.5mm
Welding Type:
High Frequency Welder
Pipe Shape:
Round,square
Roller Materoal:
Cr12/SKD11
Key Words:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

Galvanized Steel Welded Pipe Mill

,

Carbon Steel Welded Pipe Mill

,

HRC High Frequency Tube Mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
90 work days
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
30 Sets
Product Description
Galvanized Carbon Steel Round Welded Pipe Mill High Frequency
Product Attributes
Attribute Value
Production Name High Frequency Welded Pipe Mill Galvanized Carbon Steel Round Welded Pipe Mill High Frequency
Material HRC, CRC, Galvanised Steel
Tube Size 15-50 mm
Tube Thickness 0.8-2.5mm
Welding Type High frequency welder
Pipe Shape Round, Square
Roller Material Cr12/SKD11
Key Words High frequency welded pipe mill
Product Description

Galvanized Carbon Steel Round Pipe High Frequency Welded Pipe Mill is designed for manufacturing round and square welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, this mill produces tubes of various sizes and shapes with precise dimensions. Capable of producing round tubes from 15-50mm in diameter with 0.8-2.5mm thickness, it can also manufacture LTZ special shape tubes.

Main Parameters and Specifications
Material Specifications
  • Conforms to YB189-64 standard
  • Steel material: Q235/Q345
  • Mechanical properties: σb≤380Mpa, σs≤275MPa
  • Strip width: 47-157MM
  • Strip thickness: 0.8-2.5MM
  • I.D of Coils: Φ508mm
  • O.D of Coils: φ2000mm
  • Coil Weight: 3TON
Quality and Service Warranty

Our technical service personnel will visit your factory after machine delivery to provide operational guidance, debugging, and maintenance support. We offer comprehensive technical training for your equipment operation and maintenance staff. The entire production line comes with a one-year warranty.

Working Process
Strip steel to coil → Uncoiler → Shear welder → Storage material unit → Forming, welding, cooling, precise pipe diameter sizing → Precise pipe length sizing, cutting → Inspection → Packaging
Tube Mill Other Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
Galvanized Carbon Steel High Frequency Welded Pipe Mill 15-50mm 0 Galvanized Carbon Steel High Frequency Welded Pipe Mill 15-50mm 1 Galvanized Carbon Steel High Frequency Welded Pipe Mill 15-50mm 2 Galvanized Carbon Steel High Frequency Welded Pipe Mill 15-50mm 3
