Precision Tube Mill 25-76mm Diameter 100m/min Speed

Name: Precision Tube Mill 25-76mm Diameter 100m/min Speed
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001,
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001,

Model Number:

HG76

Product Name:

Precision Tube Mill Diameter 25mm - 76mm Max 100m/Min Speed

Pipe Diameter:

25-76mm

Product Speed:

Max 100m/min

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Cutting Saw:

Friction Saw Cutting

Pipe Thickness:

4.0-10.0mm

Key Word:

Max 100m/Min Speed Welded Pipe Mill

After-sales Service Provided:

Commissioning And Training

Voltage:

380V

Key Words:

Precision Tube Mill

Highlight:

High Light

Highlight:

25mm Dia Precision Tube Mill

76mm Dia Precision Tube Mill

100m/Min Speed Precision Tube Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

5 months

Payment Terms:

L/C,T/T,Western Union,

Supply Ability:

50 set per year

Product Description

Precision Tube Mill Diameter 25mm - 76mm Max 100m/Min Speed

Product Specifications

Attribute	Value
Pipe Diameter	25-76mm
Maximum Speed	100m/min
Material Compatibility	Carbon steel, stainless steel, low alloy steel
Cutting Method	Friction Saw Cutting
Pipe Thickness	4.0-10.0mm
Voltage	380V
After-sales Service	Commissioning and training

Product Description

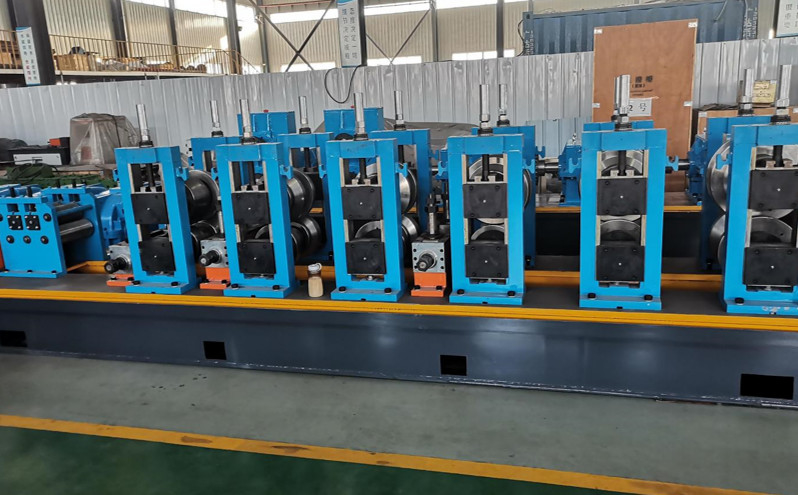

This precision tube mill is designed to produce high-quality welded steel pipes, including round pipe, square pipe, and deformed pipe. The production line features advanced roll pass design for superior machining quality and high-precision assembly.

Production Process

Material (steel coil)
Uncoiler
Shear and welder
Horizontal (or cage) accumulator
Forming mill
HF solid welder
Sizing mill
Roughly straightening (turkey head)
Cut off machine
Run out table

Basic Parameters

Parameter	Value
Stands of forming mill	7
Stands of sizing mill	5
Shaft material	40Cr
Round pipe diameter	19-76mm
Round pipe thickness	1.5-3.0mm
Square pipe size	15×15-60×60mm
Square pipe thickness	1.5-2.0mm

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20

Quality Assurance

We guarantee the quality of our tube mills for one year after successful installation and debugging. Any quality problems resulting from design and manufacturing will be our responsibility, including all expenses for replacing parts and components (excluding human factors and vulnerable components).

Installation & Debugging

Factory will send 1-2 technical engineers for installation and testing operation
Buyer is responsible for equipment foundation, installation tools, and labor
Buyer must provide power supply, water supply, and gas supply to equipment interface
