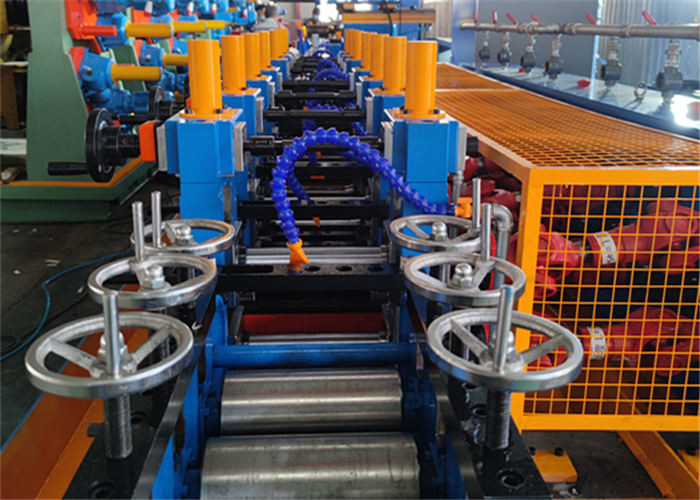

High Frequency Welded Pipe Mill for ERW Carbon Steel Pipes 12-32mm

Name: High Frequency Welded Pipe Mill for ERW Carbon Steel Pipes 12-32mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG32
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei,china
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG32

Detail Information

Place of Origin:

Hebei,china

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG32

Production Name:

High Frequency Welded Pipe Mill Erw Carbon Steel Pipe Roll Forming Welded Pipe Mill High Frequency

Material:

HRC,CRC

Pipe Diamete:

12-32 Mm

Pipe Thickness:

0.4-1.5mm

Welding Type:

H.F Solid Welder

Pipe Shape:

Round,square,rectangular

Roller Materoal:

Cr12/SKD11

Key Words:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

Erw High Frequency Tube Mill

Erw Welded Pipe Mill

Erw High Frequency Welded Pipe Mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days/Year

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets

Product Description

ERW Carbon Steel Pipe Roll Forming Welded Pipe Mill High Frequency

Product Attributes

Attribute	Value
Production Name	High Frequency Welded Pipe Mill ERW Carbon Steel Pipe Roll Forming Welded Pipe Mill High Frequency
Material	HRC, CRC
Pipe Diameter	12-32 mm
Pipe Thickness	0.4-1.5mm
Welding Type	H.F solid welder
Pipe Shape	Round, Square, Rectangular
Roller Material	Cr12/SKD11
Key Words	High frequency welded pipe mill

Product Description

ERW Carbon Steel Pipe Roll Forming High Frequency Welded Pipe Mill is used to manufacture round/square welded steel pipe. After we absorbed advanced pipe making technology from both abroad and domestic, we can produce different sizes and shapes of tubes while ensuring precision.

Round pipe size: 12-32mm
Pipe thickness: 0.4-1.5mm
Square tube size: 10x10-20x20mm
Tube thickness: 0.4-1.5mm

Main Parameters and Specifications

Material Specifications

Conforming to the YB189-64 standard
Steel material: Q235/Q345
Mechanical properties: σb≤380Mpa, σs≤275MPa
Strip width: 37-100MM
Strip thickness: 0.4-1.5MM
I.D of Coils: Φ508mm
O.D of Coils: φ1800mm
Coil Weight: 2.5TON

Welded Pipe Specification

Round Pipe Diameter: Φ12～φ32mm
Square tube size: 10X10-20X20MM
Pipe thickness: 4.0-8.0MM
Finish pipe length: 6-12M
Forming speed: 40-120M/MIN

Workshop Requirements

6m wide, 60m long, at least 5m high from Ceiling Rails to Ground.

ERW Tube Mill Other Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20
