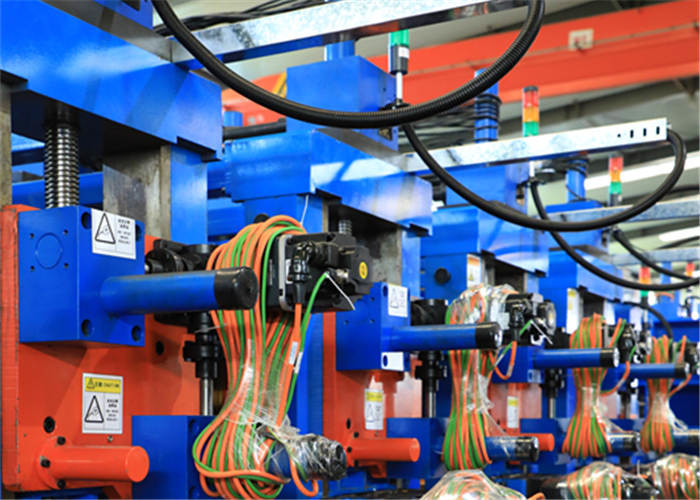

High Frequency Welded Pipe Mill 80x80-200x200mm 4-10mm Thickness
  • High Frequency Welded Pipe Mill 80x80-200x200mm 4-10mm Thickness
  • High Frequency Welded Pipe Mill 80x80-200x200mm 4-10mm Thickness
  • High Frequency Welded Pipe Mill 80x80-200x200mm 4-10mm Thickness

High Frequency Welded Pipe Mill 80x80-200x200mm 4-10mm Thickness

Product Details:
Place of Origin: Hebei,CHINA
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: HG200x200
Detail Information
Place of Origin:
Hebei,CHINA
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
HG200x200
Production Name:
High Frequency Welded Pipe Mill 200x200mm Automatic Steel Pipe
Material:
HRC,CRC,Galvanised Steel
Pipe Size:
80x80-200x200mm
Pipe Thickness:
4.0-10.0mm
Welding Type:
High Frequency Welding
Pipe Shape:
Round,square,rectangular
Roller Materoal:
Cr12/SKD11
Key Words:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

200x200mm Automatic Pipe Mill

,

HRC Automatic Pipe Mill

,

200x200mm Welded Pipe Mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
180 work days
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
30 Sets
Product Description
High Frequency Welded Pipe Mill 200x200mm Automatic Steel Pipe
Product Specifications
Production Name High Frequency Welded Pipe Mill 200x200mm Automatic Steel Pipe
Material HRC, CRC, Galvanised Steel
Pipe size 80x80-200x200mm
Pipe thickness 4.0-10.0mm
Welding Type High Frequency Welding
Pipe shape Round, square, rectangular
Roller material Cr12/SKD11
Product Description
The Automatic Steel Pipe 200x200mm High Frequency Welded Pipe Mill is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, this mill produces tubes of various sizes and shapes while ensuring precision.
Main Parameters and Specifications
Material Specifications
Standard Conforming to the YB189-64 standard
Material Low carbon steel and low alloy constructional steel
Mechanical properties σb≤380Mpa, σs≤275MPa
Strip width 320～800mm
Strip thickness 4.0～10.0mm
I.D of Coils Φ508mm
O.D of Coils φ2000mm
Coil Weight ≤10T
Welded Pipe Specification
Square tube size 80x80-200x200mm
Pipe thickness 4.0-10.0mm
Finish pipe length 4-8m
Cut length accuracy ±2mm
Forming speed 20-50m/min
Workshop Requirements
8m wide, 120m long, at least 6m high from Ceiling Rails to Ground.
ERW Tube Mill Other Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
High Frequency Welded Pipe Mill 80x80-200x200mm 4-10mm Thickness 0 High Frequency Welded Pipe Mill 80x80-200x200mm 4-10mm Thickness 1 High Frequency Welded Pipe Mill 80x80-200x200mm 4-10mm Thickness 2 High Frequency Welded Pipe Mill 80x80-200x200mm 4-10mm Thickness 3
