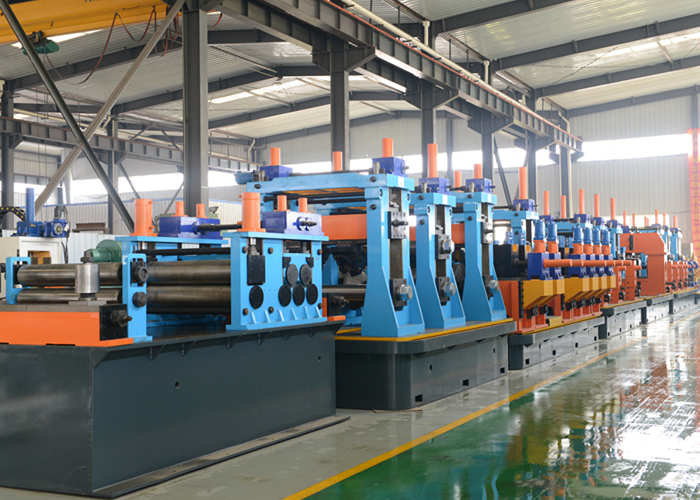

Precision Tube Mill for 110-273mm Carbon Steel Gas Pipes

Name: Precision Tube Mill for 110-273mm Carbon Steel Gas Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG273
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei,CHINA
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG273

Detail Information

Place of Origin:

Hebei,CHINA

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG273

Production Name:

Precision Tube Mill 273mm Diameter Carbon Steel Gas Pipe

Material:

HRC,CRC,Galvanised Steel

Tube Size:

110-273MM

Tube Thickness:

6-12.7MM

Forming Type:

Roll Forming

Pipe Shape:

Square,rectangular,LTZ

Roller Materoal:

Cr12/SKD11

Key Words:

Precision Tube Mill

Cutting Saw:

Cold Saw & Friction Saw Cutting

Running Speed:

Max.100m/min

Pipe Length:

Error:

±0.05mm

Voltage:

380V/50Hz

Control System:

PLC

Welding Method:

High Frequency Welding

Specification:

φ114mm-φ273mm

Cutting Tolerance:

±0.05mm

Other Pipe:

Rectangular Square Round Pipe

Key Word:

Precision Tube Mill

Highlight:

High Light

Highlight:

273mm Dia Precision Tube Mill

Precision Tube Mill Carbon Steel

Q235 Steel Precision Tube Mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

four month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets

Product Description

Precision Tube Mill 273mm Diameter Carbon Steel Gas Pipe

Product Specifications

Attribute	Value
Material	HRC, CRC, Galvanised Steel
Tube Size	110-273MM
Tube Thickness	6-12.7MM
Forming Type	Roll Forming
Pipe Shape	Square, Rectangular, LTZ
Roller Material	Cr12/SKD11
Cutting Saw	Cold Saw & Friction Saw Cutting
Running Speed	Max. 100m/min
Pipe Length	6m
Error	±0.05mm
Voltage	380V/50Hz
Control System	PLC
Welding Method	High Frequency Welding
Cutting Tolerance	±0.05mm

Product Overview

The 273mm diameter Carbon Steel gas pipe precision tube mill is engineered to produce high-quality welded steel pipes, including round, square, and deformed (LTZ) pipes. Featuring advanced roll pass design, this production line delivers superior machining quality and high precision assembly.

Material Specifications

Conforms to YB189-64 standard
Steel material: Q235/Q345
Mechanical properties: σb≤380Mpa, σs≤275MPa
Strip width: 340-800MM
Strip thickness: 6.0-12.7MM
I.D of Coils: Φ508mm
O.D of Coils: φ2000mm
Coil Weight: 12TON

Quality Assurance & Service

Our technical service team provides on-site guidance for operation, debugging, and maintenance after machine installation. We offer comprehensive training for your equipment operators and maintenance personnel.

Full warranty: 1 year for the complete production line.

Production Process

Strip steel to coil → Uncoiler → Shear welder → Storage material unit → Forming, welding, cooling → Pipe diameter sizing → Pipe length sizing and cutting → Inspection → Packaging

Available Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20
