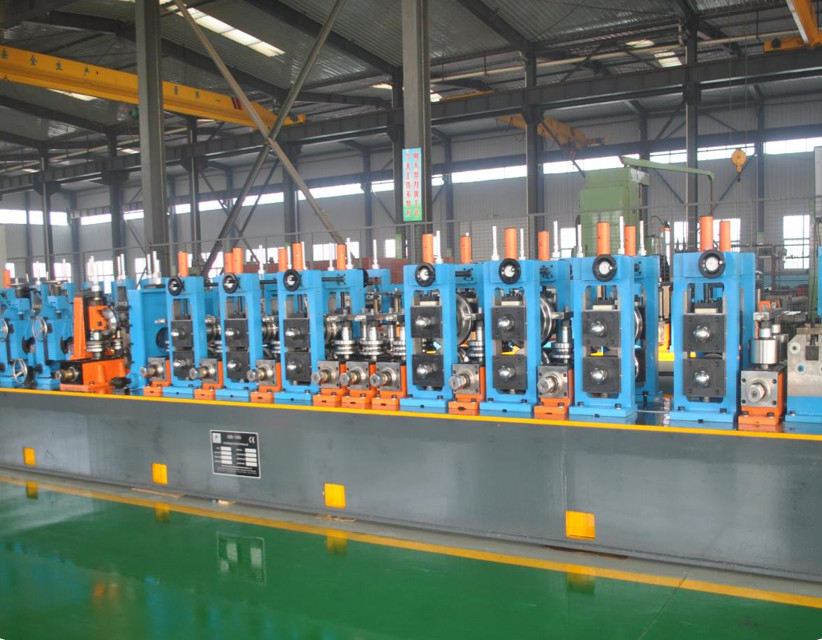

Precision Tube Mill Line 100m/min Carbon Steel Roll Forming

Name: Precision Tube Mill Line 100m/min Carbon Steel Roll Forming
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG50

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG50

Product Name:

Precision Tube Mill Line Max Speed 100 M / Min

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

300KW

Speed:

100m / Min

Pipe Shape:

Square,rectangular,LTZ

Warranty:

1 Year

Keywords:

Max Speed 100 M / Min Precision Tube Mill Line

Forming Process:

Roll Forming

Main Motor Power:

22-75KW

Power:

380V, 50Hz, 3 Phase

Product Speed:

Max 100m/min

Machine Name:

High Frequency Welded Pipe Mill

Section Shape:

Round,Square,round With Other Shape

Cutting Saw:

Cold Saw & Friction Saw Cutting

Color:

Blue

Weight:

5 Tons

Control System:

PLC Control

Key Word:

Precision Tube Mill

Highlight:

High Light

Highlight:

Thickness 2.5Mm Precision Tube Mill

Dia 50mm Precision Tube Mill

Precision Tube Mill 100 M / Min

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

Precision Tube Mill Line Max Speed 100 M / Min

Product Specifications

Attribute	Value
After-sales service	Engineers available to service machinery overseas
Pipe material	Carbon Steel
Voltage	380V
Power	300KW
Speed	100m/min
Pipe Shape	Square, Rectangular, LTZ
Warranty	1 year
Forming Process	Roll Forming
Main Motor Power	22-75KW
Power	380V, 50Hz, 3 Phase
Cutting Saw	Cold Saw & Friction Saw Cutting
Color	Blue
Weight	5 tons
Control System	PLC Control

Product Description

The HG65 high frequency straight welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions.

Available Sizes

Square pipe: 19.1×19.1 - 50.8×50.8mm
Rectangular pipe: 19.1×38.1 - 25.4×76.2mm
Pipe thickness: 1.0-3.0mm

Welded Pipe Mill Models

Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
H20	0.3-1	8-20	30-120	55	60	7*50
H32	0.3-2.0	12-32	30-120	75	100	7*50
H50	0.8-2.5	16-50	30-110	110	150	7*60
H60	0.8-3	20-60	30-100	132	200	7*65
H76	1-3	12-76	30-100	320	250	8*80
H89	1-4	32-89	30-80	350	300	8*80
HG114	1.5-5	45-114	30-60	400	300	10*100
HG165	3-7	60-165	30-50	600	400	10*110
HG219	4-8	114-219	20-40	800	500	12*150
HG273	4-10	114-273	15-30	1000	600	18*160
HG325	4-12	165-325	10-30	1200	600	18*180
HG426	4-16	165-426	8-25	1400	800	18*180
HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car → Uncoil → Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening → STD Cold-cutting saw → Transmitting → Hydrostatic testing → End facer → Straightener → Packing → Storage

Our Service

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair service
Pre-sales and after-sales service including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize output and reduce waste
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements
